95
HCD-SC5/SC6/SC8
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

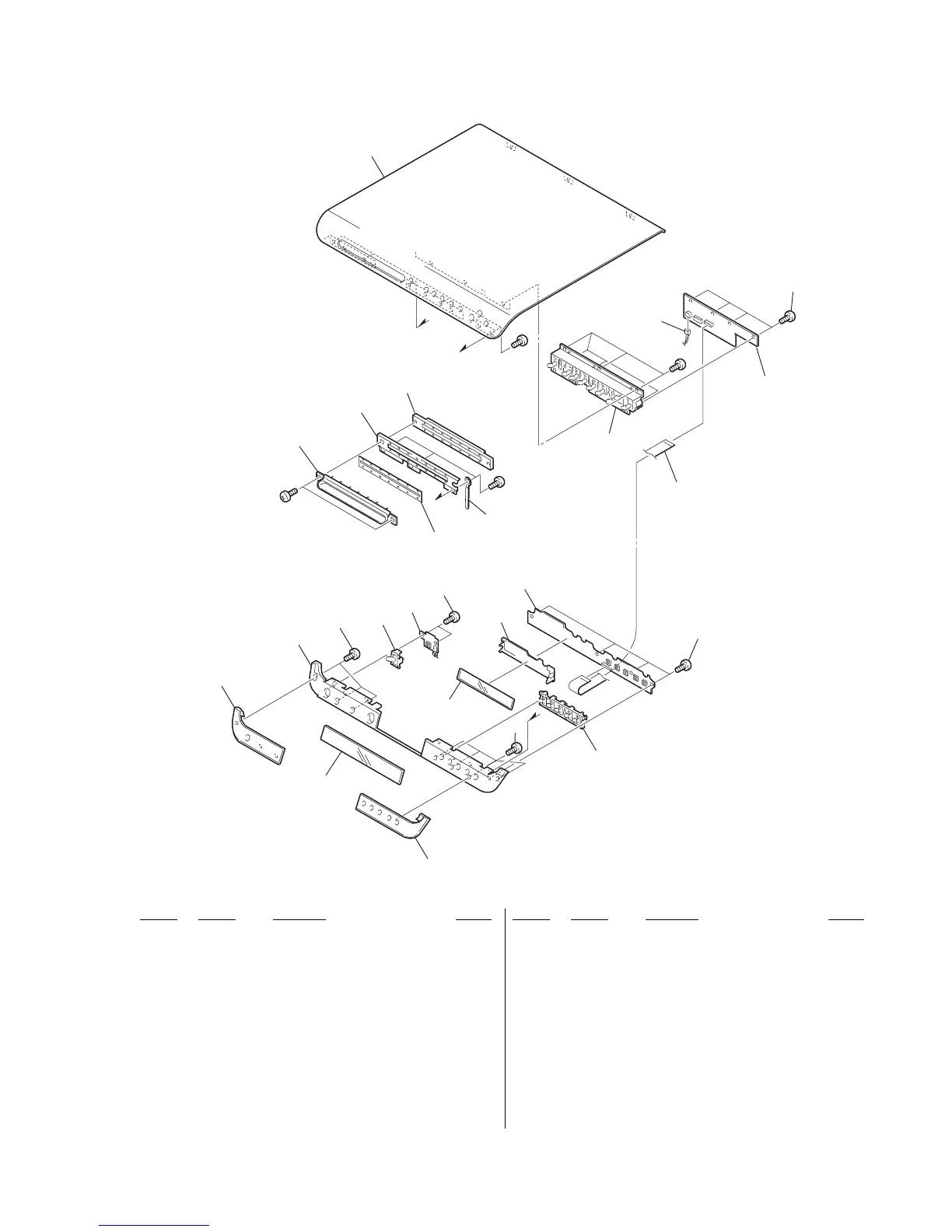

7-2. FRONT PANEL SECTION
51 4-248-573-01 PANEL TOP(R)
52 X-4955-961-1 WINDOW SUB ASSY
53 4-248-572-01 PANEL TOP(L) (SC5)
53 4-248-572-11 PANEL TOP(L) (SC6)
53 4-248-572-21 PANEL TOP(L) (SC8)
54 4-248-577-01 FRONT(ML)PANEL
55 4-931-757-31 SCREW(DIA.2.6X8)(IT3B),TAPPING
56 X-4955-809-1 POWER BUTTON SUB ASSY
57 1-689-358-11 POWER LED BOARD
58 4-248-576-01 BAND BUTTON
59 4-248-538-02 HOLDER (FL)
60 A-4748-363-A FL BOARD, COMPLETE
61 4-249-729-01 SLOT DISC
62 4-249-732-01 COVER SLOT
63 4-249-730-01 SLOT DISC(INSIDE)
64 4-248-575-01 PLAY BUTTON
65 A-4748-364-A DDCON BOARD, COMPLETE
66 4-248-561-01 FRONT(AL)PANEL(SC5:EXCEPT KR/
SC6:EXCEPT KR,EA/SC8:EXCEPT KR,E32,MX,TW)
66 4-248-561-11 FRONT(AL)PANEL
(SC5:KR/SC6:KR,EA/SC8:KR,E32,MX,TW)
67 1-827-619-11 FLEXIBLE FLAT CABLE (13 CORE)
FL801 1-518-924-11 INDICATOR TUBE, FLUORESCENT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
66
54
55
56
57
59
60
64
65
67
55
61
62
63
55
52
53
51
55
55
58
#1
#1
#1
#1
not supplied
not supplied
FL801
a
b
b
not supplied
a
