NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
SECTION 7
EXPLODED VIEWS
94
HCD-SC5/SC6/SC8
•Abbreviation
AUS: Australian model
E32 : 110-240V AC area in E model
EA : Saudi Arabia model
HK : Hong Kong model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TW : Taiwan model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

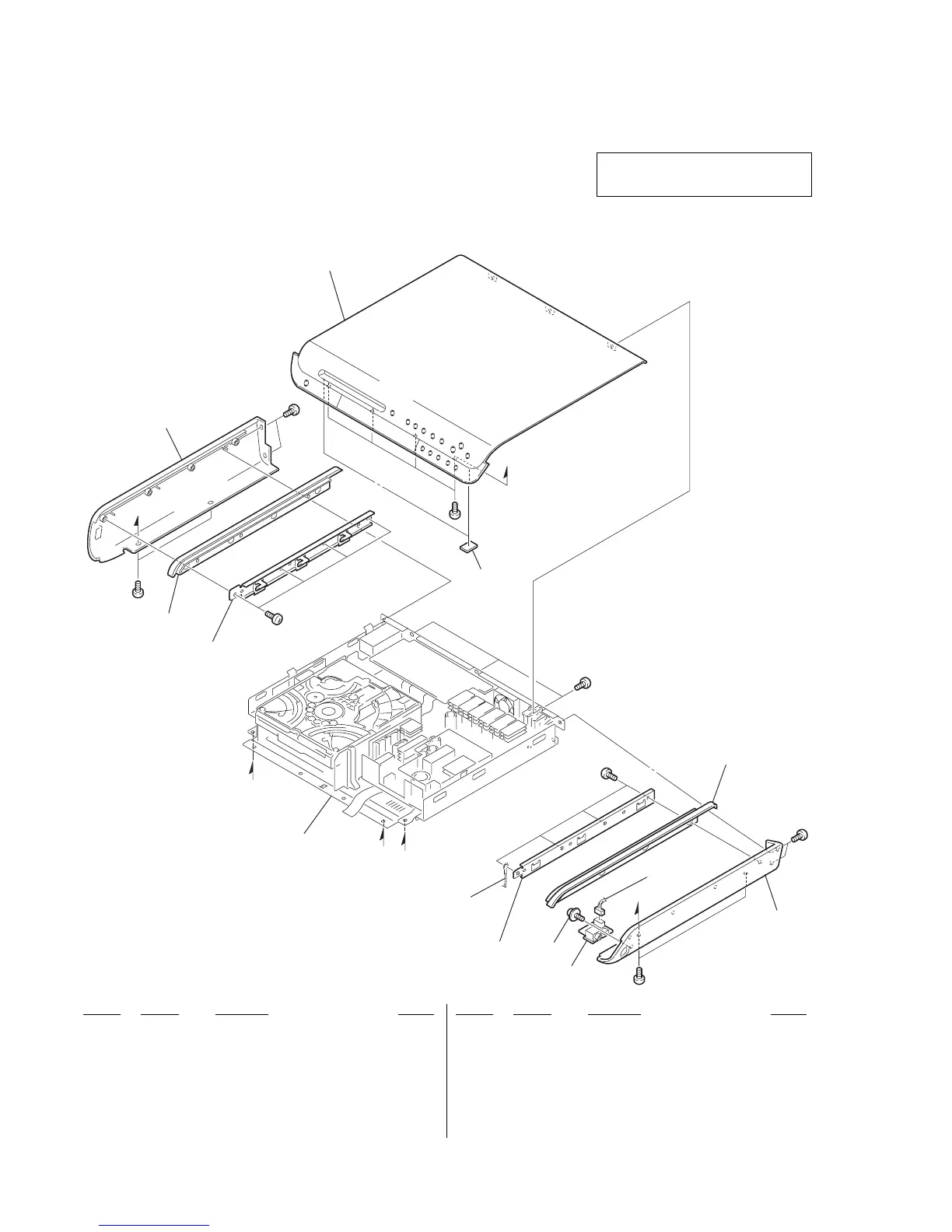

7-1. CASE SECTION
1 4-248-580-01 SIDE PANEL(L)
2 4-248-571-01 SIDE PANEL TOP(L)
3 4-249-991-01 FOOT
4 4-248-568-01 SIDE PANEL(R)
5 4-248-578-01 SIDE PANEL TOP(R)
6 A-4747-935-A HP BOARD, COMPLETE (SC8:MX)
6 A-4748-360-A HP BOARD, COMPLETE
(SC5:EXCEPT TW/SC6/SC8:EXCEPT MX,TW)
6 A-4749-850-A HP BOARD, COMPLETE (SC5:TW)
6 A-4750-123-A HP BOARD, COMPLETE (SC8:TW)
7 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
a
a
b
b
c
c
1
3
6
2
4
5
front panel section
chassis section-1
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#2
#2
not supplied
not supplied
7
To Next Page
