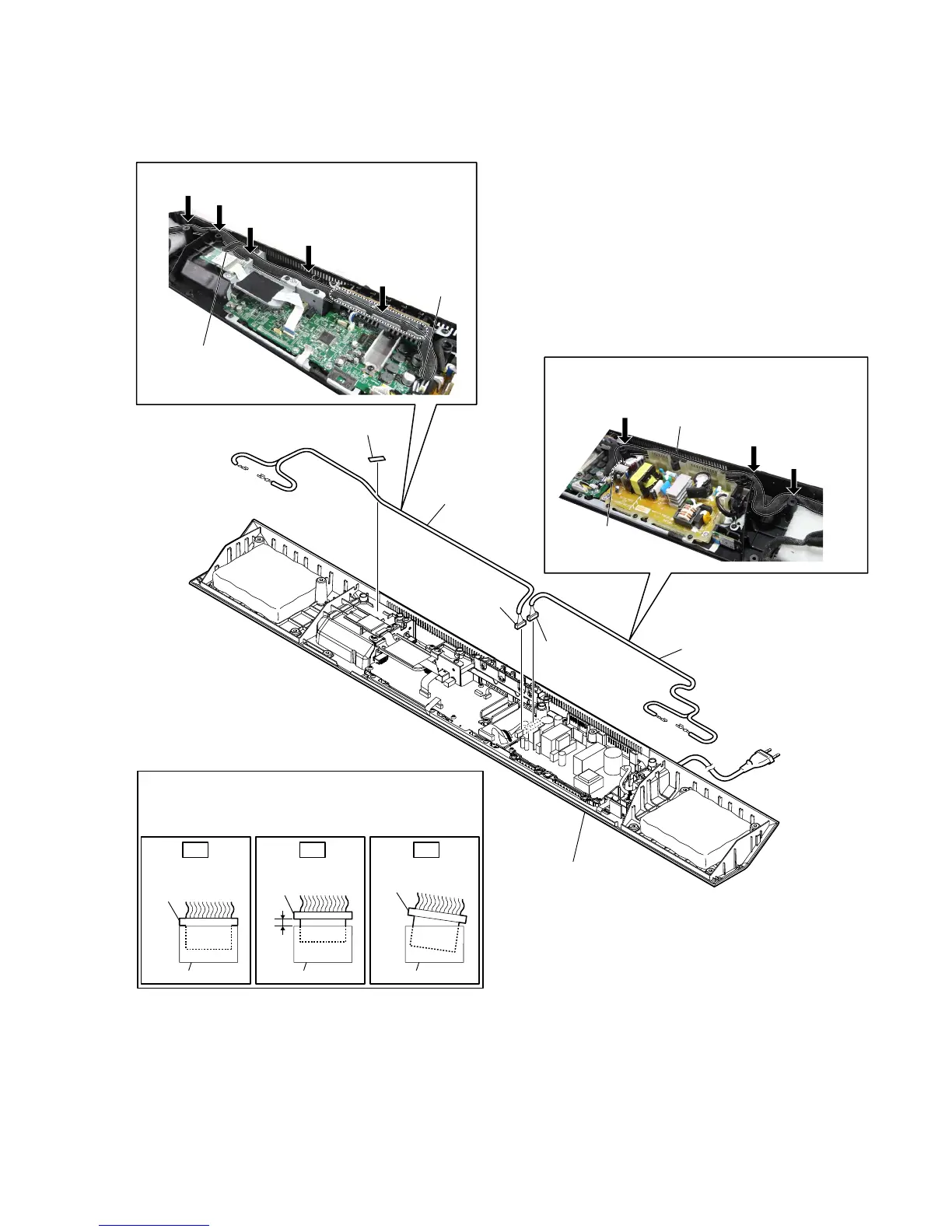

2-7. CONNECTION CABLE WITH SPEAKER (L-CH, R-CH) (SPC1, SPC2)
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
 How to install the connector
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
2 connector
(CN3002)
2 connector
(CN3001)
3 connection cable with speaker
(R-ch) (SPC2)
3 connection cable
with speaker
(L-ch) (SPC1)
1 cushion (CZ2-A)
&RQQHFWLRQFDEOHZLWKVSHDNHU5FK63&VHWWLQJ
Push
Push
Push
CN3001
Vent hole
Note:
Do not block the vent hole in the connection cable with
speaker (R-ch) (SPC2).
&RQQHFWLRQFDEOHZLWKVSHDNHU/FK63&VHWWLQJ
Push
Push
Push
Push
CN3002
cushion (CZ2-A)
Push
cabinet (bottom) block
