59
HT-CT380/CT381

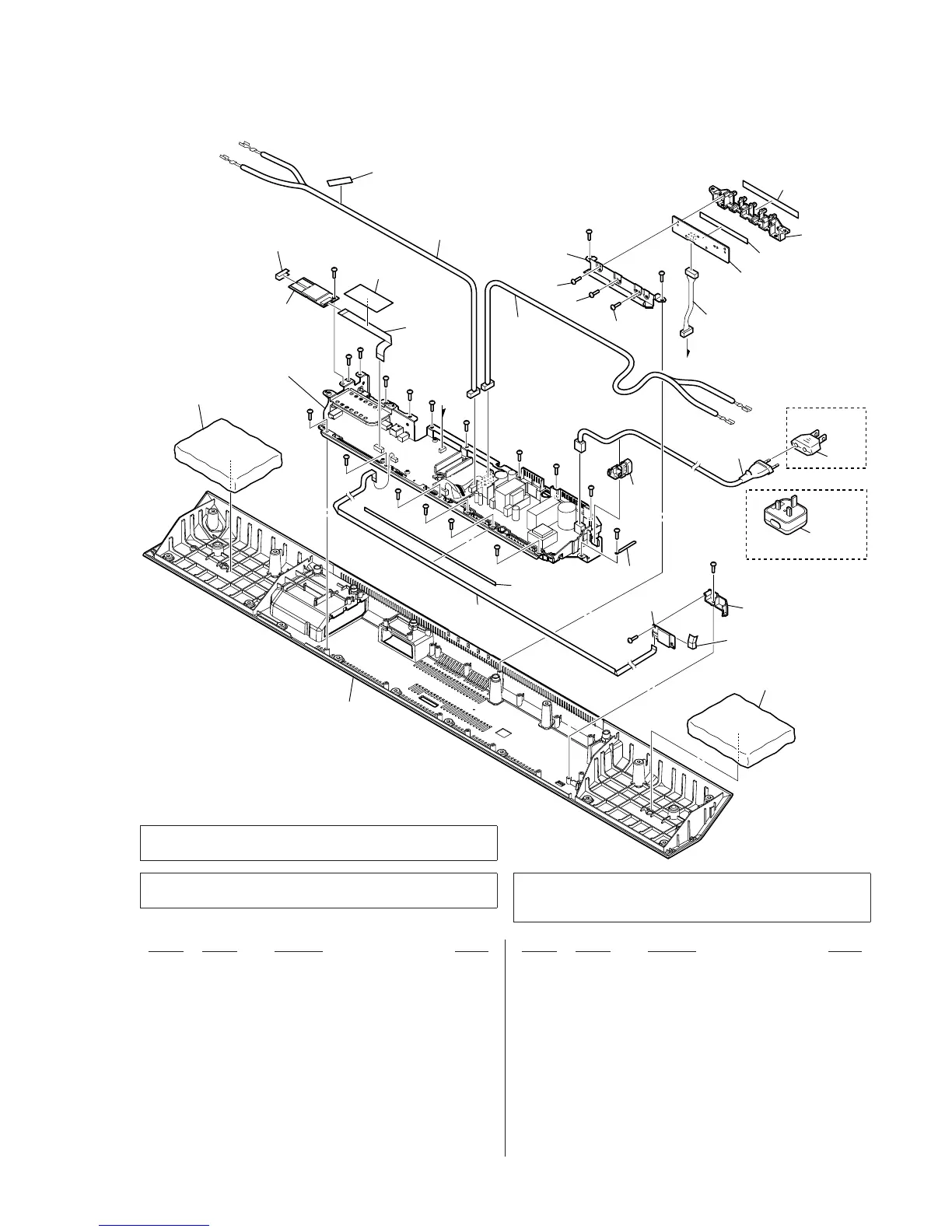

6-3. BOTTOM CABINET SECTION
101 X-2590-762-2 CABINET (BOTTOM) ASSY (CT380: US, CND)
101 X-2590-763-2 CABINET (BOTTOM) ASSY
(CT380: AEP, UK, E3, EA3, SP, AUS, PX)
101 X-2590-913-2 CABINET (BOTTOM) ASSY (CT381)
102 3-087-053-01 +BVTP2.6 (3CR)
103 A-2063-684-A KEY BOARD, COMPLETE
104 4-549-756-02 BUTTON (CZ2) (BLACK) . . . (BLACK) (CT380)
104 4-549-756-12 BUTTON (CZ2) (WHITE) . . . (SILVER) (CT381)
0 105 4-966-267-12 BUSHING (FBS001), CORD
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP, E3, SP, PX)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-839-999-21 POWER-SUPPLY CORD (UK, EA3)
BT1 1-490-558-92 BLUETOOTH MODULE
0 ACP1 1-569-008-33 ADAPTOR, CONVERSION (PX)
0 ACP2 1-770-019-72 ADAPTOR, CONVERSION PLUG 3P (SV)
(SP for Hong Kong only) (See Note 1)
FFC1 1-970-611-11 WIRE KIT (BAR FFC) (14P) (See Note 2)
FFC2 1-970-611-11 WIRE KIT (BAR FFC) (24P) (See Note 2)
RF1 1-492-347-11 RF MODULATOR (SWA12-4V TX) (See Note 3)
SPC1 1-848-866-11 CONNECTION CABLE WITH SPEAKER (L-ch)
SPC2 1-848-866-21 CONNECTION CABLE WITH SPEAKER (R-ch)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#3 7-685-146-11 SCREW +P 3X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 2: As for WIRE KIT (BAR FFC), all fl at fl exible cables (Ref. No.
FFC1, FFC2, FFC3, FFC4) will be 1 set.
#1
#1
#3
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
104
103
102
102
102
102
not supplied
not supplied
not supplied
SPC1
SPC2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
MAIN board section
FFC2
(24 pin)
FFC1
(14 pin)
BT1
RF1
A
A
105
AC1
101
ACP1
(PX)
ACP2
(SP for Hong Kong)
(See Note 1)
Note 3: When the RF modulator (Ref. No. RF1) is replaced, refer to
“NOTES ON THE WIRELESS CONNECTION (LINK) AF-
TER REPAIRS ARE COMPLETE” on page 5.
Ver. 1.1
Note 1: Ref. No. ACP2 is a service part used only for the Singapore
model sold in Hong Kong.
To Next Page
