Sony SA-CT381 - RF MODULATOR (RF1)

HT-CT380/CT381
16

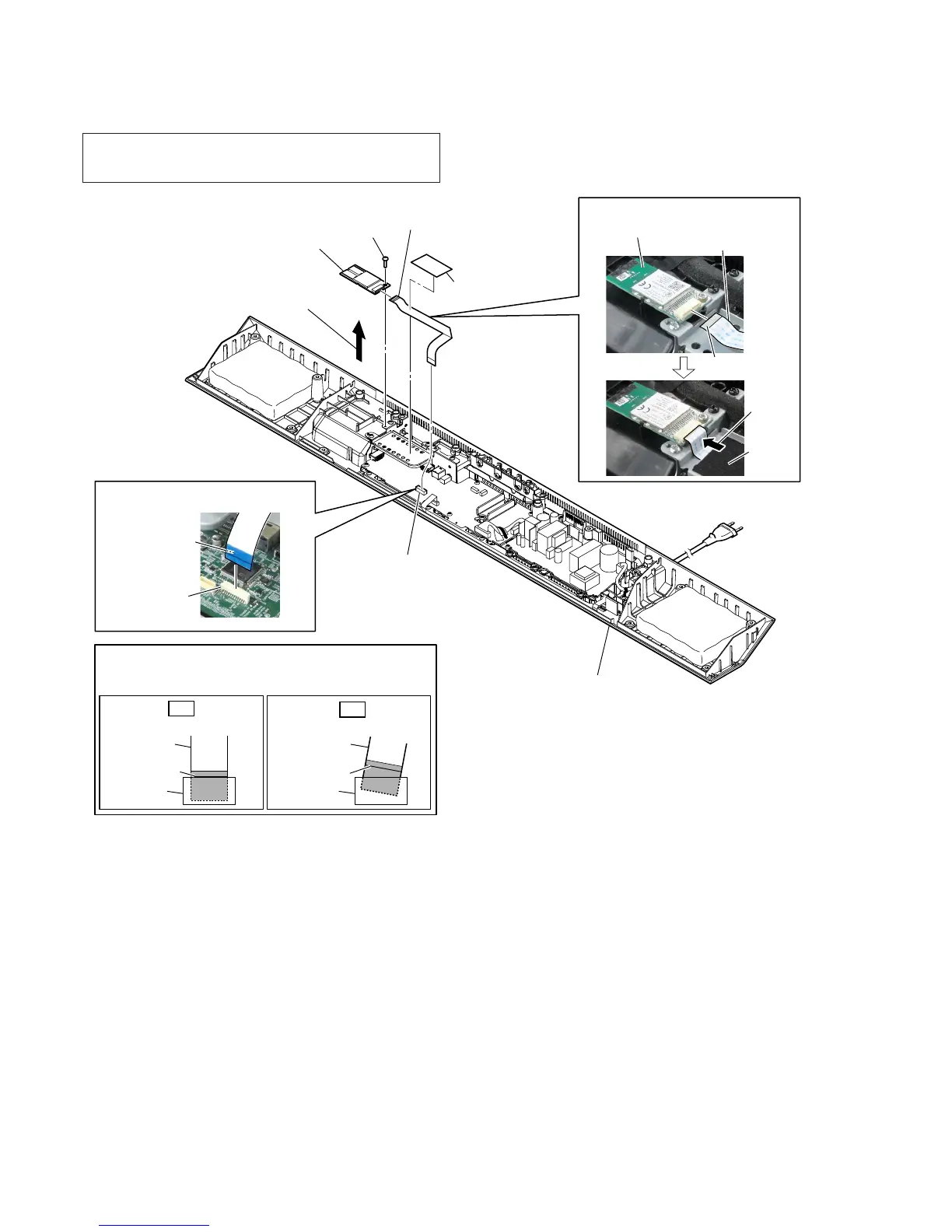

2-10. RF MODULATOR (RF1)
4 screw
(P3 u 8)
2 cushion (sound)
5 Remove the RF modulator block
in the direction of the arrow.
6 RF modulator
(RF1)
3 flexible flat cable
(24 core) (FFC2)
1 connector
(CN1003)
)OH[LEOHIODWFDEOH))&VHWWLQJ
flexible flat cable
(FFC2)
push
cushion
(sound)
RF modulator
(RF1)
terminal face
)OH[LEOHIODWFDEOH))&VHWWLQJ
Terminal face is
below side.
connector
(CN1003)
cabinet (bottom) block
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
+RZWRLQVWDOOWKHIOH[LEOHIODWFDEOH
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
Note: When the RF modulator (Ref. No. RF1) is replaced, refer to
“NOTES ON THE WIRELESS CONNECTION (LINK) AFTER
REPAIRS ARE COMPLETE” on page 5.
