HT-CT380/CT381
15

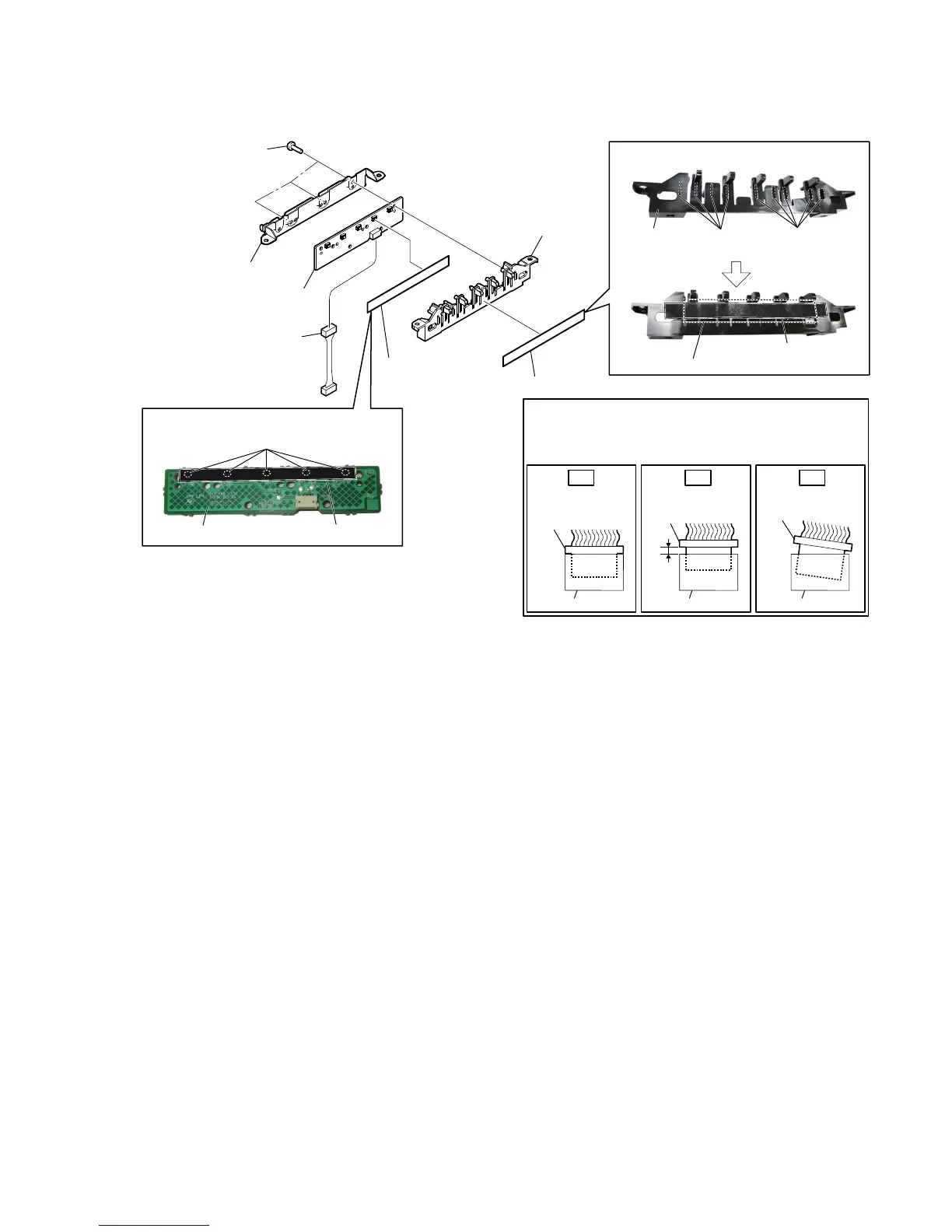

2-9. BUTTON, KEY BOARD
1 three screws
(BVTP2.6)
7 KEY board
5 connector
(CN701)
4 button (CZ2)
3 cushion (CZ2-A)
6 cushion (CZ2-A)
2 bracket (BTN-CZ2)
,QVWDOODWLRQSRVLWLRQRIWKHFXVKLRQ&=$
,QVWDOODWLRQSRVLWLRQRIWKHFXVKLRQ&=$
button (CZ2)
cushion (CZ2-A)
cushion (CZ2-A)
Note 2:
Do not press this area during affixing.
Note 1:
Align to cover total nine ribs as shown.
KEY board
five tact switches
four ribs
five ribs
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
+RZWRLQVWDOOWKHFRQQHFWRU
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
