HT-CT380/CT381

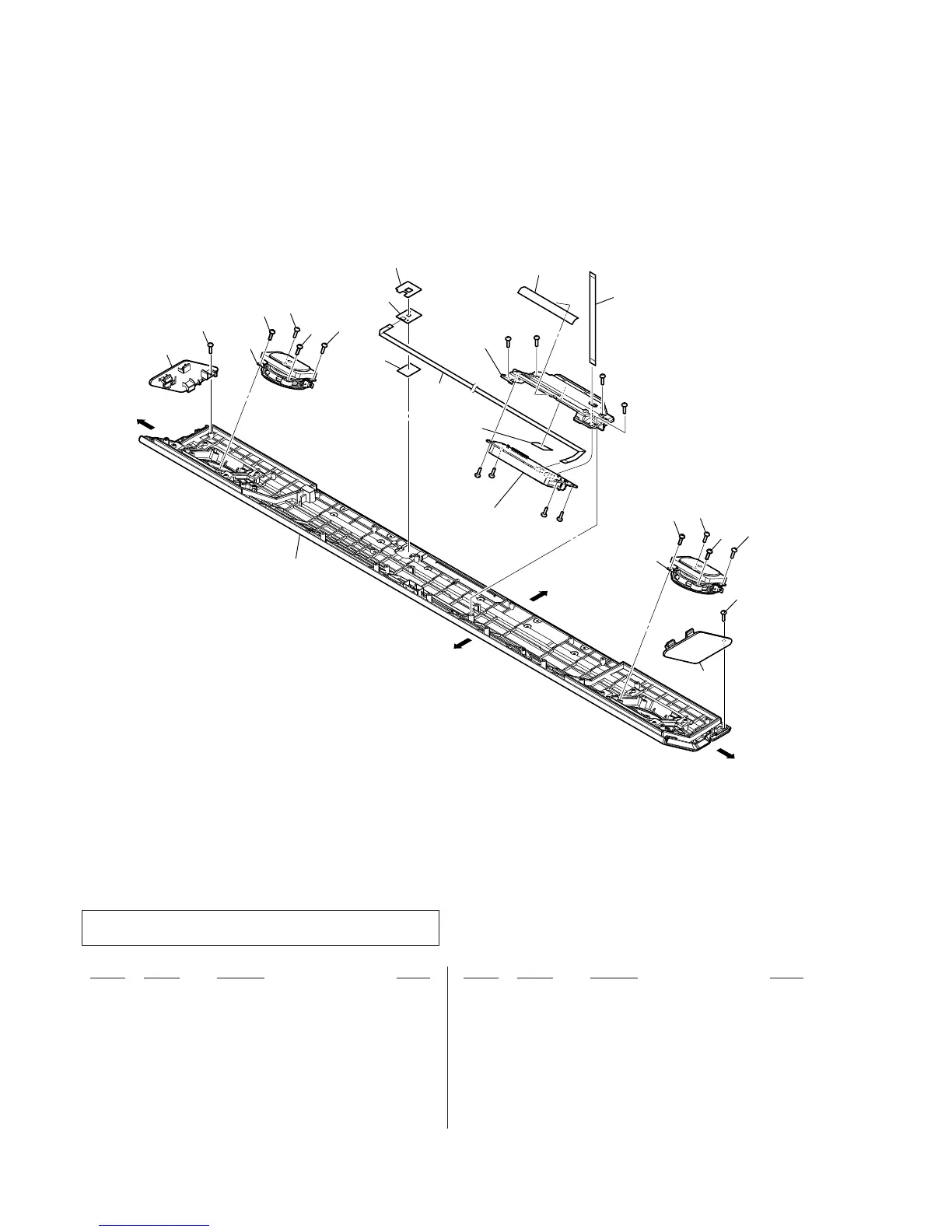

6-2. TOP CABINET SECTION
• Bottom view
51 X-2590-759-2 CABINET (TOP) ASSY (CT380: US, CND)
51 X-2590-760-2 CABINET (TOP) ASSY
(CT380: AEP, UK, E3, EA3,SP, AUS, PX)
51 X-2590-912-2 CABINET (TOP) ASSY (CT381)
52 X-2591-129-1 PANEL (SIDE-RB) ASSY (Right side) (CT380)
52 X-2591-133-1 PANEL (SIDE-RS) ASSY (Right side) (CT381)
53 3-087-053-01 +BVTP2.6 (3CR)
54 4-986-971-12 SCREW (3.5)
55 4-459-006-01 DOUBLE ADHESIVE TAPE (NFC)
56 X-2591-128-1 PANEL (SIDE-LB) ASSY (Left side) (CT380)
56 X-2591-132-1 PANEL (SIDE-LS) ASSY (Left side) (CT381)
FFC3 1-970-611-11 WIRE KIT (BAR FFC) (18P) (See Note)
FFC4 1-970-611-11 WIRE KIT (BAR FFC) (6P) (See Note)
NFC1 8-989-602-00 RC-S730 (WW) (NFC module)
SP1 1-859-120-11 LOUDSPEAKER (6 cm) (L-ch)
SP2 1-859-120-11 LOUDSPEAKER (6 cm) (R-ch)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: As for WIRE KIT (BAR FFC), all fl at fl exible cables (Ref. No.
FFC1, FFC2, FFC3, FFC4) will be 1 set.
FFC4
(6 pin)
FFC3
(18 pin)
not supplied
not supplied
not supplied
not supplied
(DISPLAY board)
not supplied
#2
#2
#2
#2
#2
#2
#2
#2
56
52
53
51
SP1
SP2
54
54
54
54
53
54
55
54
54
54
NFC1
rear side
left side
right side
front side
