Sony SA-CT381 - KEY BOARD BLOCK

HT-CT380/CT381
14

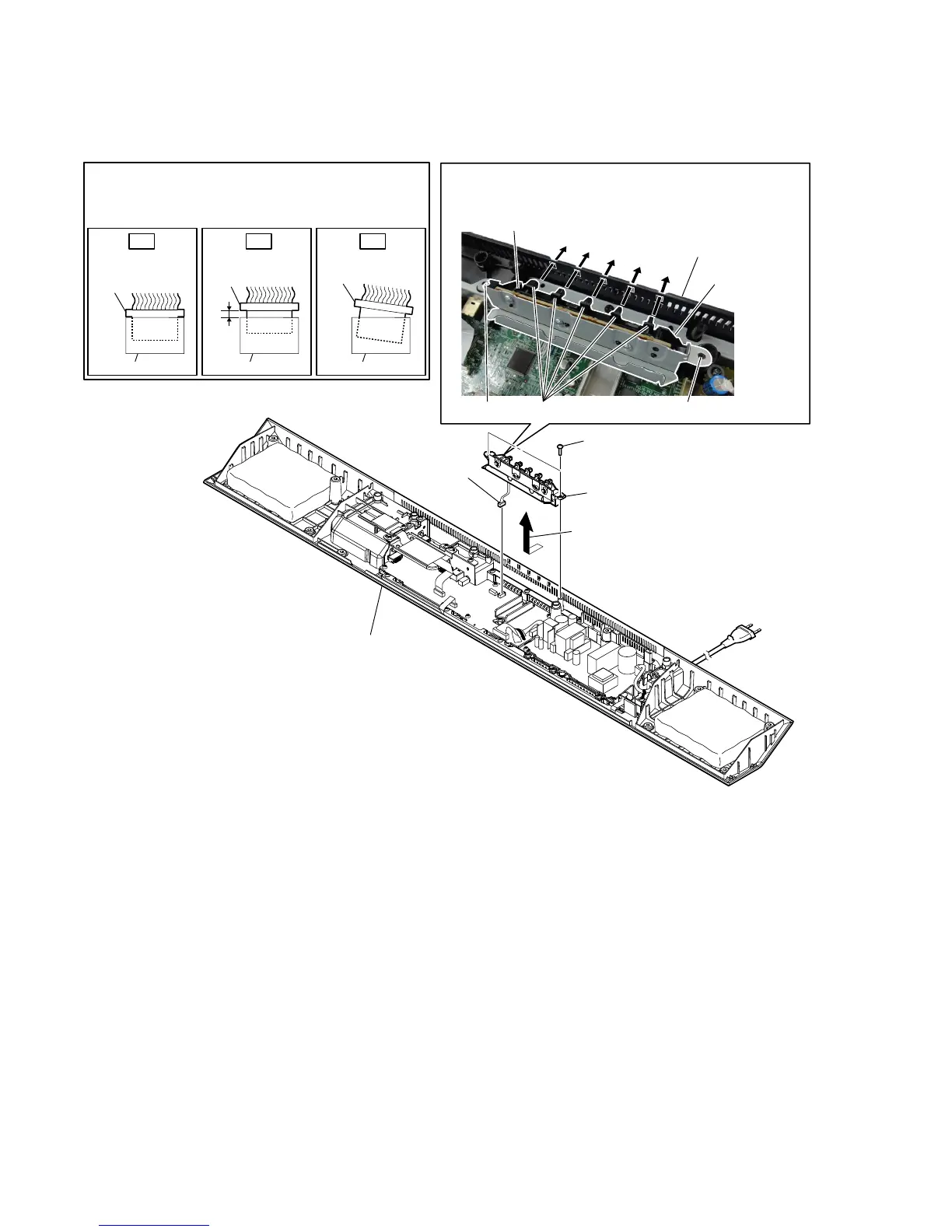

2-8. KEY BOARD BLOCK
2 two screws
(BVTP3 u 10)
1 connector
(CN1009)
4 KEY board block
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
 How to install the connector
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
 How to install the KEY board block
cabinet (bottom) block
bracket (BTN-CZ2)
screw hole
cabinet (bottom) assy
five buttons
button (CZ2)
3 Remove the KEY board block
in the direction of the arrow.
screw hole
Note:
Align five buttons into the holes and align bracket (BTN-CZ2)
into two screw holes.
