Connections
Installation and Connection
Connections
Use the supplied AC power adaptor and AC
power cord to connect the camera to an AC
outlet.
RS-232 Connections
• When you connect a computer to the
camera using the VISCA cable (RS-232
cross cable), you can control the camera
from a computer instead of the supplied
infrared remote commander.
• In the case of VISCA RS-232 connection,
make sure that the BOTTOM switch is set
to VISCA (RS-232 serial control)
(page 10).
• The VISCA cable cannot be used in the
case of a LAN connection.

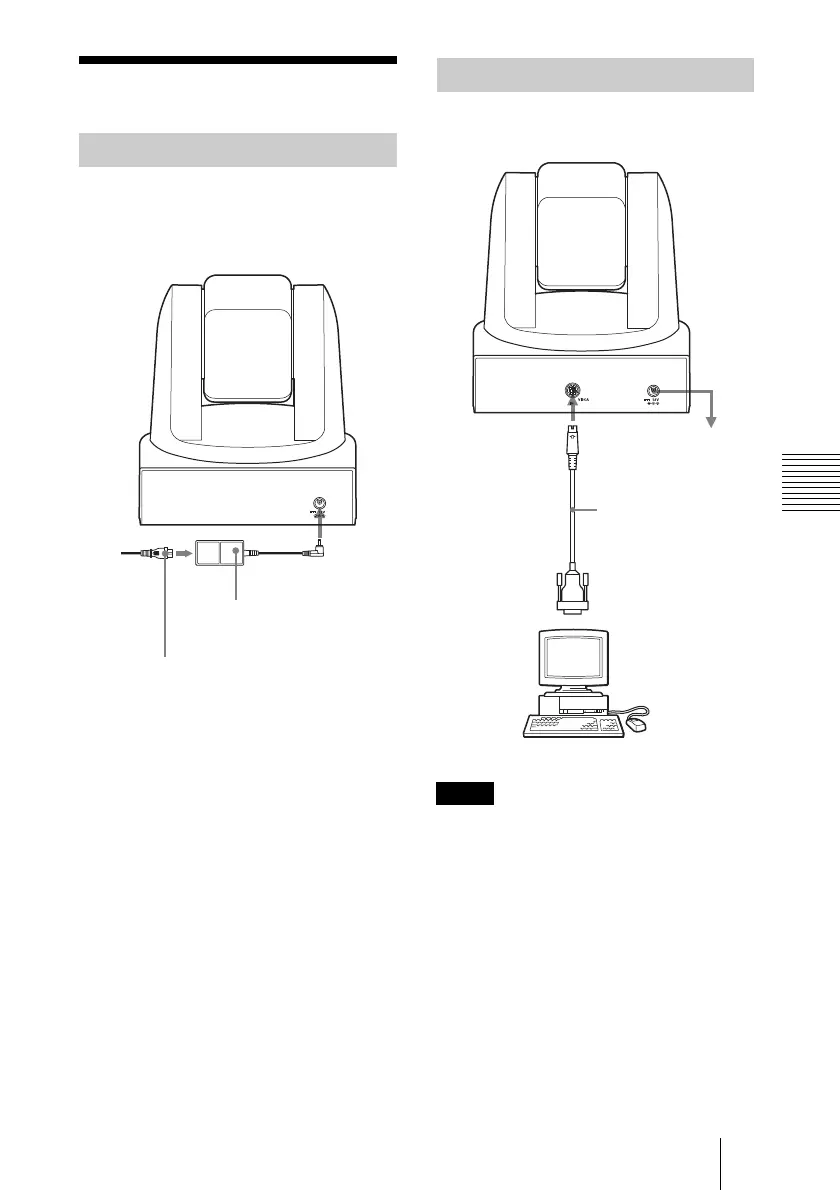

Connecting to an AC Outlet
AC power cord (supplied)
to AC
outlet
DC 12 V
AC power adaptor
(supplied)
SRG-120DH
Connecting a Computer
Notes
to RS-232 input
to the AC
adaptor
(supplied)
VISCA IN
VISCA cable
(not supplied)
Computer
SRG-120DH
