28 Connections
To obtain a cable, consult your Sony dealer.
For detailed information on how to connect
the camera and the VISCA command list,
refer to the Technical Manual of the camera.
For details on obtaining a Technical
Manual, consult your Sony dealer.
LAN connection
• In the case of a LAN connection, make
sure that the BOTTOM switch of the
camera is set for LAN connection
(page 10).
• Dedicated application software is needed.
For details about the application software,
consult your Sony dealer.
• Use a LAN cable that is compatible with
10BASE-T/100BASE-TX (category 5 or
higher, shielded twisted pair) for this
connection.
RS-232 Connections
Use the RS-232 connecting cable supplied
with the IP remote controller.
When using the VISCA RS-232 connectors,
check that the BOTTOM switch on the
bottom of the camera (page 10) and the
BOTTOM switch on the bottom of the IP
remote controller are set to RS-232.
Notes
to the AC
adaptor
(supplied)
LAN cable
(not supplied)
Computer
SRG-120DH

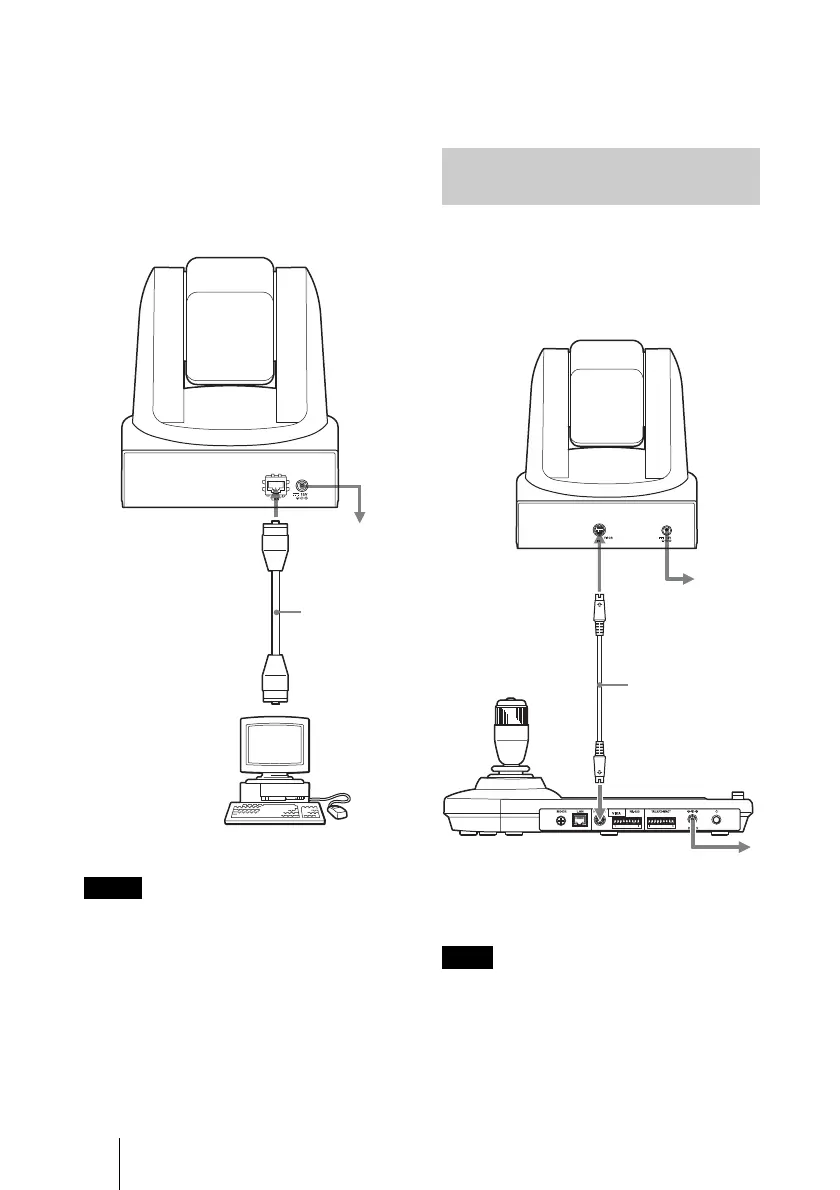

Connecting the RM-IP10 IP
Remote Controller
Note
RS-232 cable
(supplied with
the RM-IP10)
VISCA
RS-232
IN
to the AC
adaptor
(supplied)
VISCA RS-232
RM-IP10 IP
Remote Controller
to the AC adaptor
(supplied with the
RM-IP10)
SRG-120DH
DC IN 12V
To Next Page
