SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
10

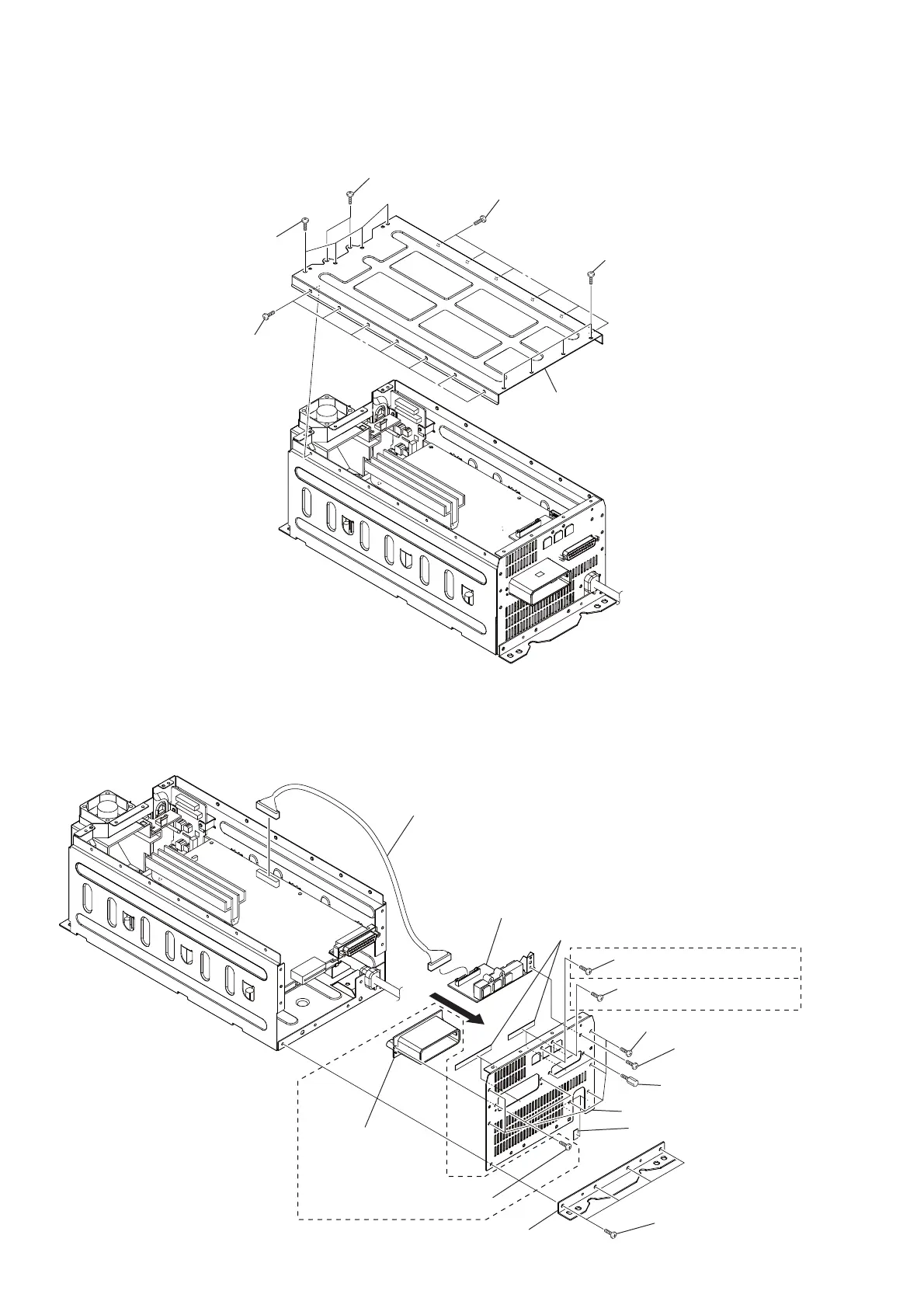

3-4. BACK PANEL (WS) (SA-WSF200/WSF500)
3-5. SPEAKER BOARD, TERMINAL BOARD (WS) (SA-WSF200/WSF500)
four screws
(BV3)
two screws
(BVTP3
×
20)
six screws (BV3)
seven screws (BV3)
four screws (BV3)
back panel (WS)
harness
(AMP-DSP board: CN551 (WSF200)/CN501 (WSF500),
SPEAKER board: CN102 (WSF200)/CN101 (WSF500))
RB
SPEAKER board
holder S-AIR (WS)
RT
four cushions saranet
RG
terminal board (WS)
six screws (BVTP3
×
8)
screw
(BVTP3
×
8)
screw (BVTP3
×
8)
screw (BVTP3
×
8)
two screws
RE
two cabinet upper cushions
two screws
(BVTP3
×
8)
four screws
(BVTP3
×
8)
bracket chassis (WS)
(SA-WSF500)
(SA-WSF500)
(SA-WSF200)
To Next Page
