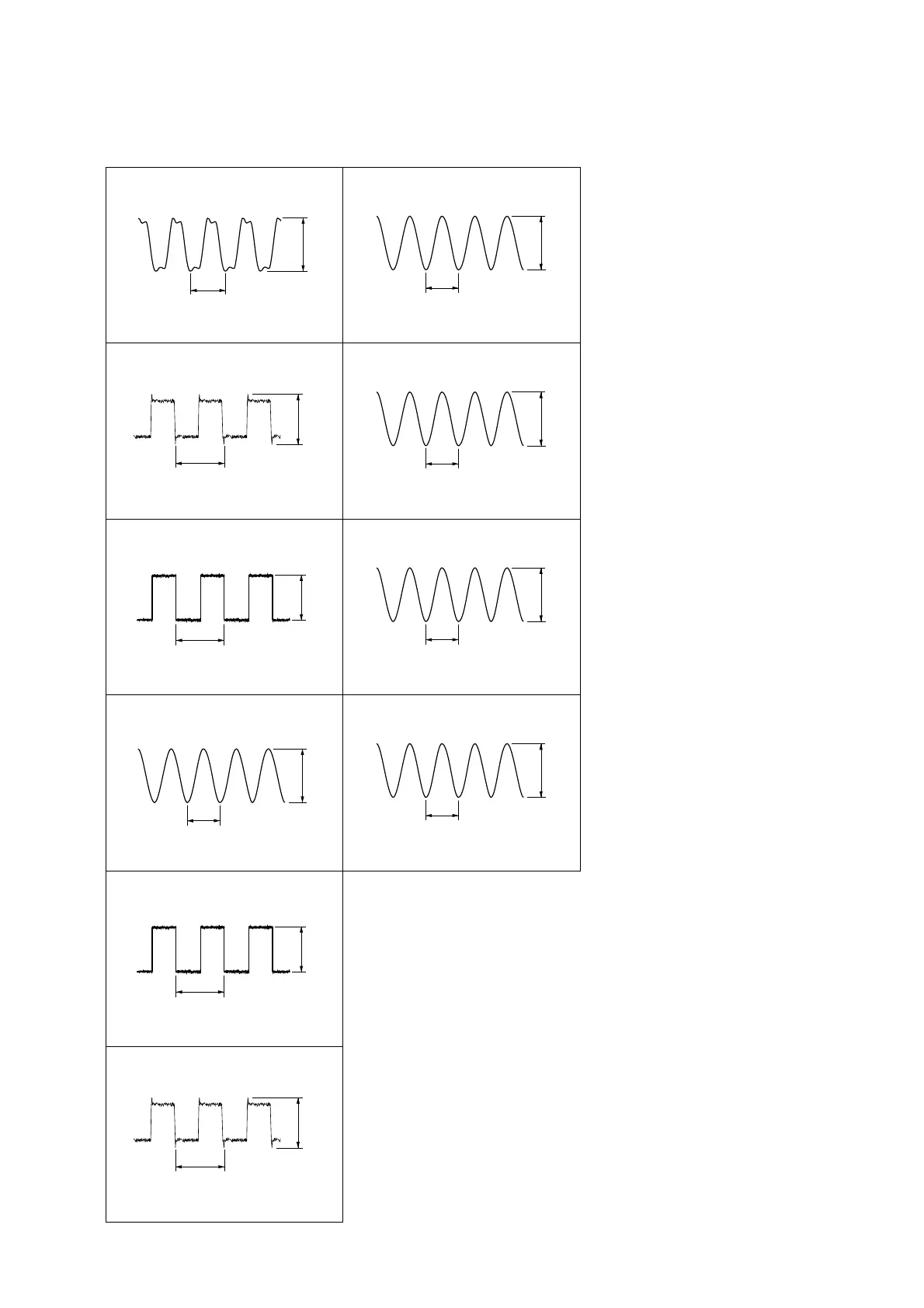

• Waveforms
– AMP-DSP Board (SA-WSF200/WSF500) –
1 V/DIV, 50 ns/DIV
82 ns
2.48 Vp-p
81 s
4.8 Vp-p

IC701 RE (CKOUT(O))
2 V/DIV, 50 s/DIV

IC703  (2A)

IC701 RG (BCK(O))
1 V/DIV, 100 ns/DIV
326 ns
4.3 Vp-p

IC821 JK (DPDVBCK)
1 V/DIV, 100 ns/DIV
326 ns
4.32 Vp-p
20.8 s
3.96 Vp-p

IC701 RH (LRCK(O))
1 V/DIV, 10 s/DIV
20.8 s
4.48 Vp-p

IC821 JI (DPDVLRCK)
1 V/DIV, 10 s/DIV

IC821 [WD (XTAL)
1 V/DIV, 20 ns/DIV
40 ns
1.5 Vp-p

IC611 RE (XOUT)
1 V/DIV, 50 ns/DIV
100 ns
2.64 Vp-p

IC222  (OUT)
1 V/DIV, 20 ns/DIV
20.6 ns
2.72 Vp-p
R
IC231 RG (XFSOOUT)
1 V/DIV, 20 ns/DIV
20.6 ns
3.24 Vp-p
