59
HCD-F200/F500

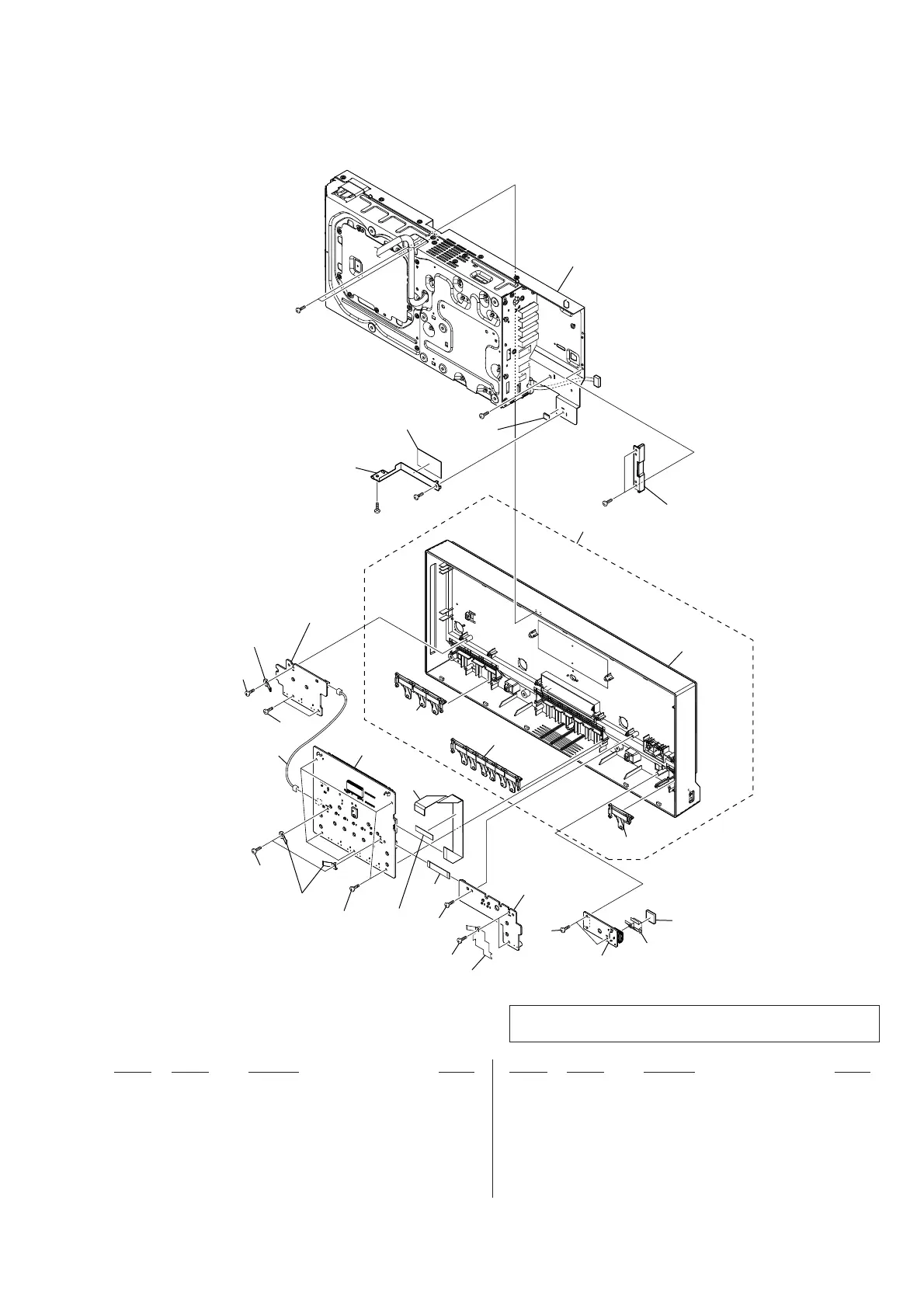

7-2. FRONT PANEL SECTION
Note: This illustration is seen from the back.
51 3-087-053-01 +BVTP2.6 (3CR)
52 1-828-295-11 WIRE (FLAT TYPE) (7 CORE)
53 1-828-002-11 WIRE (FLAT TYPE) (17 CORE)
54 A-1497-847-A FL BOARD, COMPLETE
55 3-291-132-01 BUTTON (EJECT)
56 3-291-130-01 BUTTON (PLAY)
57 3-291-131-01 BUTTON (POWER)
58 A-1547-635-A FRONT PANEL ASSY (SERVICE) (F200)
58 A-1547-647-A PANEL ASSY, FRONT (SERVICE) (F500: CND)
58 A-1547-648-A PANEL ASSY, FRONT (SERVICE) (F500: RU, E3,
E15, E32, EA, MX, SP, TW, KR, TH, AUS)
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51
51
not supplied
not
supplied
not
supplied
not supplied
not supplied
(USB board)
not supplied
(KEY-L board)
not supplied
(KEY-R board)
not supplied
not supplied
#2
#2
#3
#3
not
supplied
not supplied
main section
not supplied
not supplied
not supplied
not supplied
#2
51
56
55
57
51
51
52
53
54
51
51
58
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
Ver. 1.1
