SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
9
Note:
Follow the disassembly procedure in the numerical order given.

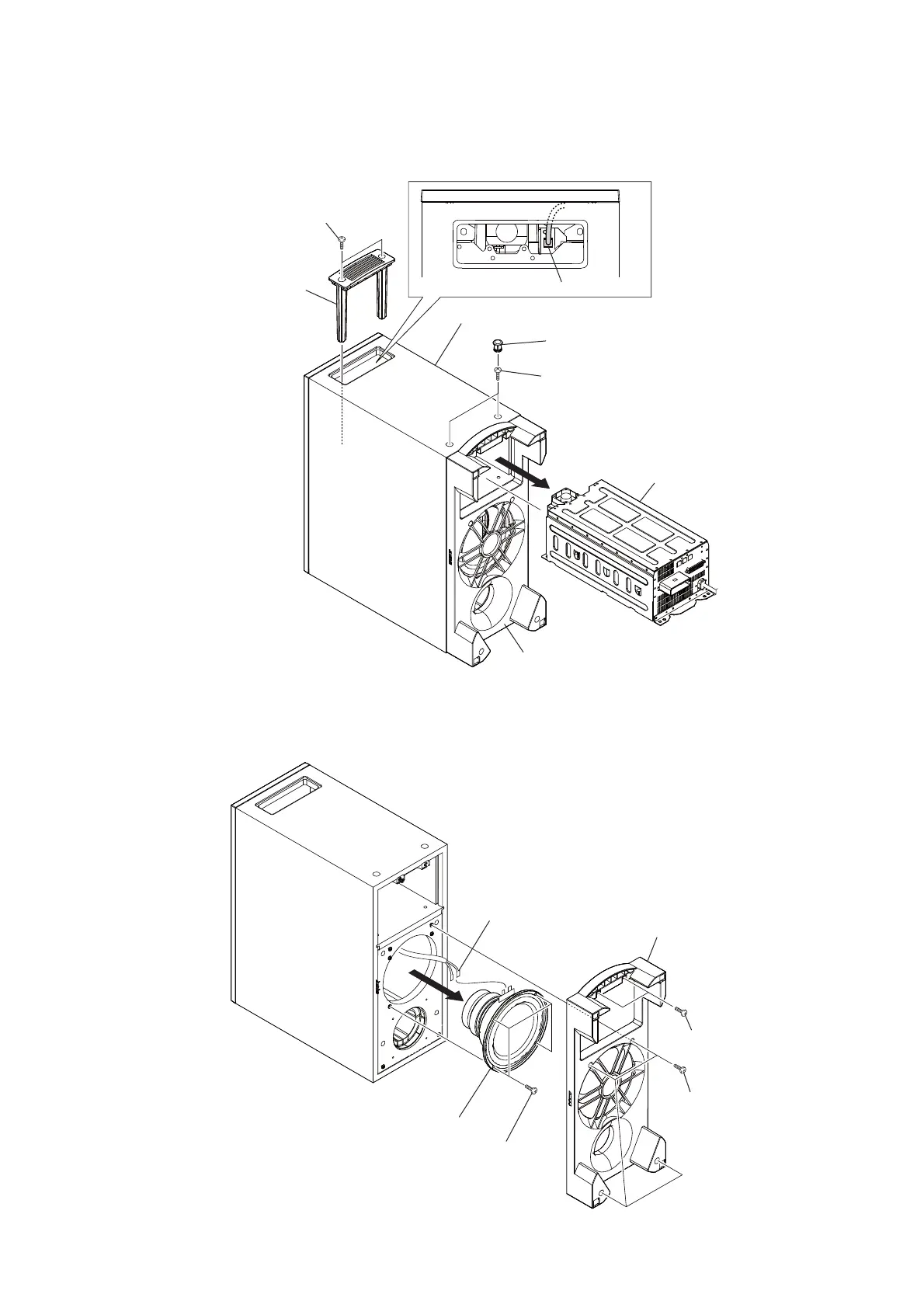

3-2.
AMP COMPLETE
ASSY (SA-WSF200/WSF500)
two
screws
(B4
×
14)
two
screws
(B4
×
14)
fan
cover
Remove the connector.
two
caps
Please lay the set as you see bottom side.
AMP complete assy
bottom side
3-3.
LOUDSPEAKER (16 cm) (SP001) (SA-WSF200/WSF500)
four
screws
(BV4
×
16)
four
screws
(BV4
×
16)
two
screws
(B4
×
10)
bottom panel assy
harness
loudspeaker (16 cm)
(SP001)
8
10
