HCD-F200/F500
19

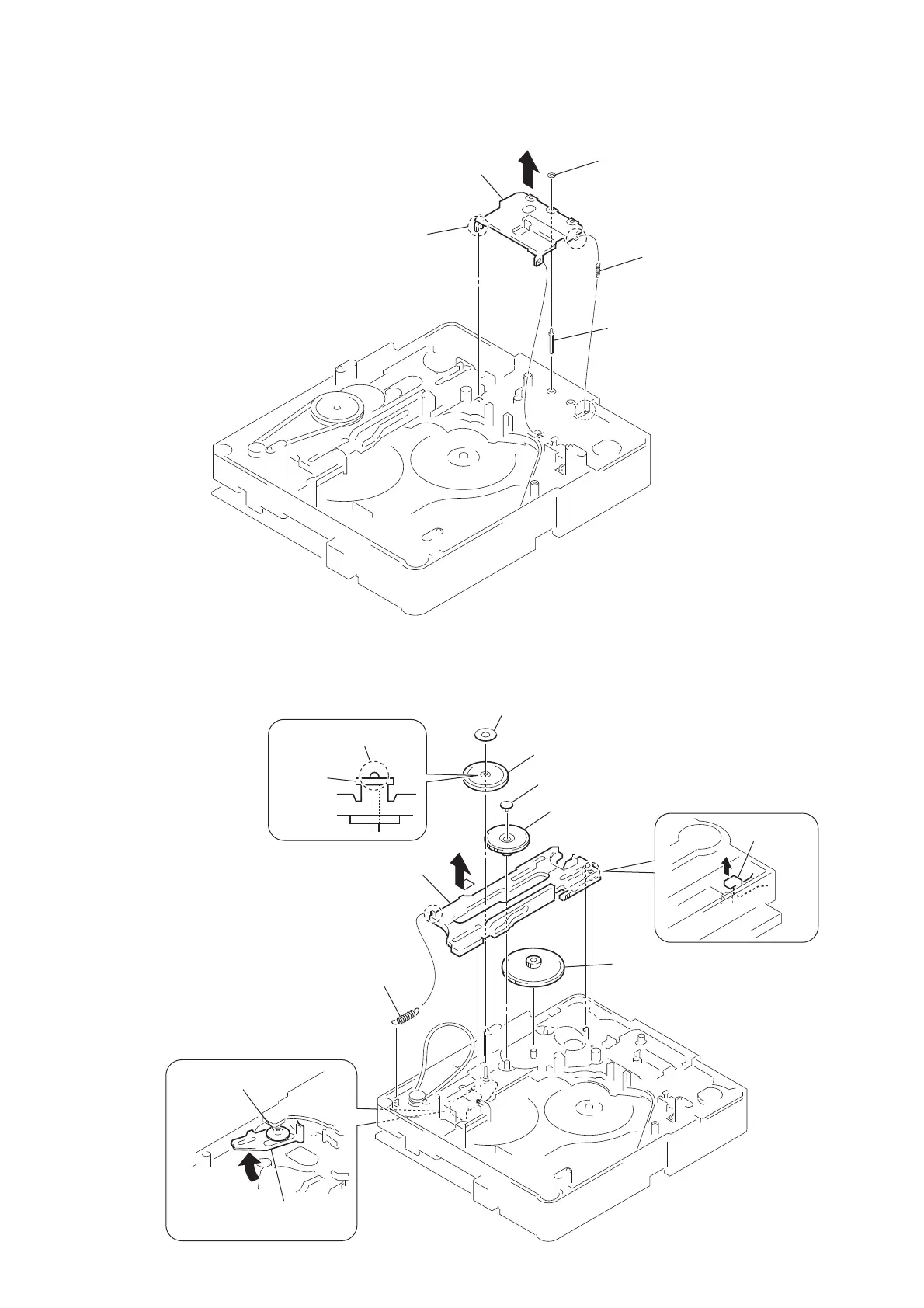

3-16.
CLOSE LEVER
3-17.
LEVER (DIR), GEAR (IDL-B)
washer
(3-1-0.4)
SPR-E lever close
shaft disc stop
close
lever
claw
pulley
(gear)
nylon washer 1.7
claw
washer
Lever
(DIR)
gear
(IDL-A)
RB
gear
(IDL-B)
tension coil spring (DIR)
stoper
Loosen the screw
.
Hold the release lever
and change the direction.
gear
(cap)
72
74
Table of Contents
Default Chapter
1
Specifications
1
Safety-Related Componet Warning
2
Table of Contents
2
Servicing Notes
3
Unleaded Solder
3
AMP-DSP Board
4
Bond Fixation of Electric Parts
4
POWER Board
5
Electrical Discharge Processing (Sa-Wsf200/Wsf500)
6
SPEAKER Board
6
1 Servicing Notes
7
2 General
7
Subwoofer
7
3 Disassembly
8
Disassembly Flow (SA-WSF200/WSF500)
8
Amp Complete Assy (SA-WSF200/WSF500)
9
Loudspeaker (16 CM) (SP001) (SA-WSF200/WSF500)
9
Back Panel (WS) (SA-WSF200/WSF500)
10
Speaker Board, Terminal Board (Ws) (Sa-Wsf200/Wsf500)
10
Waveforms
25
IC Block Diagrams
26
Ic301, 321, 381, 401 Cxd9936Tn
27
Ic613 Pst3635Nr
27
REG Board (SA-WSF200/WSF500)
30
IC Pin Function Description
31
5 Exploded Views
36
Cabinet Section (Sa-Wsf200/Wsf500)
36
AMP Complete Assy (SA-WSF200/WSF500)
37
AMP Board Section (SA-WSF200/WSF500)
38
POWER Board Section (SA-WSF200/WSF500)
39
Ss-Ctf500/Tsf200/Tsf500
40
Speaker Stand (for SS-TSF500)
41
6 Electrical Parts List
42
Servicing Notes
58
About Multi Session CD
59
Note about Playback Operations of a DVD or VIDEO CD
59
Playable Discs
59
Region Code
59
How to Eject the Disc When Power Switch Turns off
60
Precaution When Removing Optical Pick-Up Block or Dmb-Fit Board
60
Main Board Service Position
61
Control Unit
62
General
62
Front Panel Display
63
Remote Control
63
Disassembly
64
Disassembly Flow
64
Cover (Read-HCD), Holder (Terminal-HCD)
65
Panel (Stand Top)
65
Process in the Solder Bridge
66
Key-R/Fl/Key-L/Usb Board
67
Optical Pick-Up Block
67
Main Block
68
Main Board Block
69
Shield Plate (Front)
69
3-10. Main Board
70
3-11. Dmb-Fit Board
70
3-12. DVD Mechanism Block
71
Motor (Pulley) Assy (Loading) (M001)
71
3-14. Holder (Bu) Assy
72
Lever (BU Lock)
72
3-16. Close Lever
73
Lever (DIR), Gear (IDL-B)
73
Chassis (Top)
74
Lever (Loading-L/R)
75
Gear (IDL-C)
76
Lever (Disc Sensor)/(Disc Stop)
76
Cold Reset
77
DVD Version View
77
S-AIR ID Select
77
Test Mode
77
DVD Service
78
MAIN Board (Component Side)
78
Panel Test
78
Test Modes in the Test Menu
78
DVD Service Mode
79
DVD Service Mode General Description
79
Enterring DVD Service Mode
79
Executing IOP Measurement
79
Checking Emergency History
80
Error Code
80
Parameter of Error Code
81
Time of Error Code
81
To Clear the Laser Hour
81
To Execute the Initialize Setup Data
81
Electrical Adjustments
82
Fm Tune Level Check
82
Diagrams
83
Exploded Views
112
Rear Cover Section
112
Front Panel Section
113
Main Section
114
Chassis Section
115
DVD Mechanism Deck Section-1 (CDM86-DVBU101)
116
DVD Mechanism Deck Section-2 (CDM86-DVBU101)
117
(Cdm86-Dvbu101)
118
(Cdm86-Dvbu101)
119
DVD Mechanism Deck Section-4
119
Electrical Parts List
