HCD-F200/F500
12

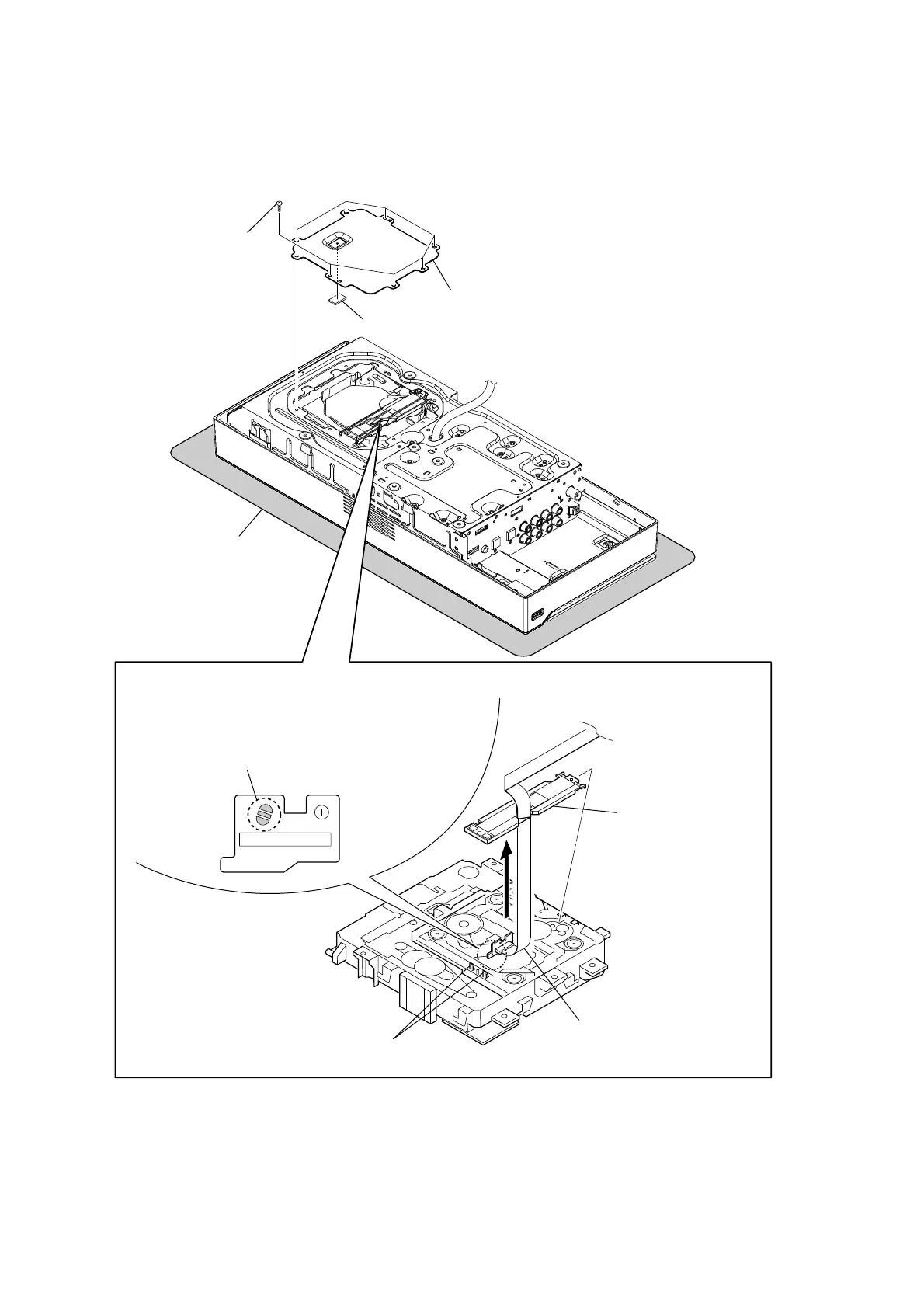

3-4. PROCESS IN THE SOLDER BRIDGE
Note:
The process in the solder bridge is necessary before optical pick-up or DMB-FIT board is removed.
When this process is neglected, optical pick-up is damaged.
eight screws
(BVTP3
×
6)
cover (chassis)
cushion (foot)
CAUTION
Lift up the FFC holder.
flexible flat cable
two claws
Be sure to execute a solder bridge as a measure against
static electricity when removing the optical pick-up or
DMB-FIT board.
(Otherwise, the OP block will be destroyed.)
sheet
Note:
Please spread a seat under a set
not to injure front panel assy.
– rear view –
To Next Page
