HCD-F200/F500

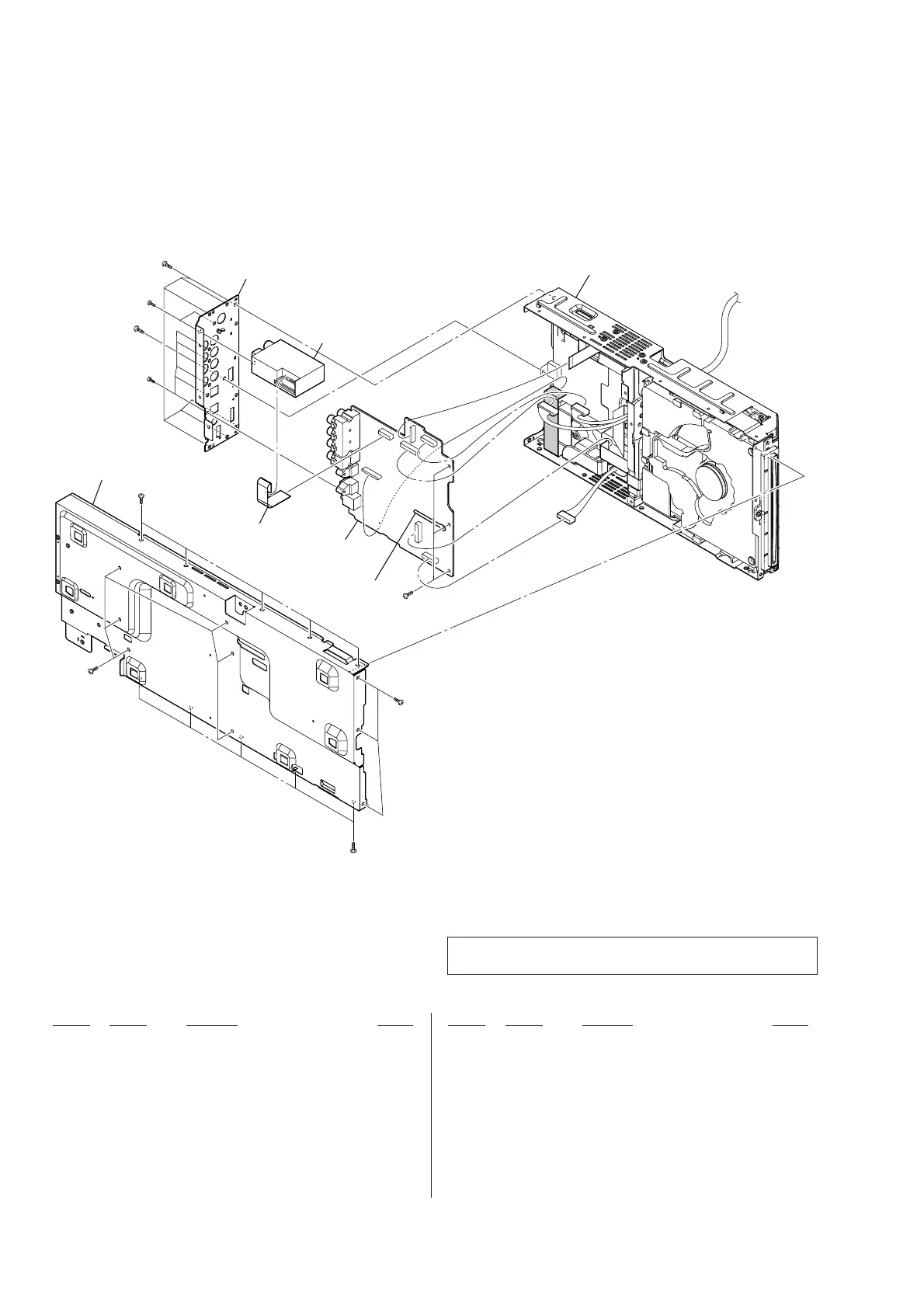

7-3. MAIN SECTION
101 A-1497-844-A MAIN BOARD, COMPLETE (F200: AEP, UK)
101 A-1497-860-A MAIN BOARD, COMPLETE (F200: SP, TH)
101 A-1497-869-A MAIN BOARD, COMPLETE (F500: RU)
101 A-1497-875-A MAIN BOARD, COMPLETE (F500: CND, E3, E15,
E32, EA, MX, SP, TW, TH, AUS)
101 A-1498-991-A MAIN BOARD, COMPLETE (F500: KR)
102 1-828-954-11 WIRE (FLAT TYPE) (9 CORE) (F200: SP, TH/F500:
CND, E3, E15, E32, EA, MX, SP, TW, KR, TH, AUS)
102 1-828-964-11 WIRE (FLAT TYPE) (11 CORE)
(F200: AEP, UK/F500: RU)
103 1-693-768-11 TUNER (FM) (F200: AEP, UK/F500: RU)
103 1-693-769-11 TUNER (FM) (F200: SP, TH/F500: E3, E15, E32,
EA, MX, SP, TW, TH, AUS)
103 1-693-770-11 TUNER (FM) (F500: CND)
103 1-693-771-11 TUNER (FM) (F500: KR)
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-872-01 SCREW +BVTT 3X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
102
103
not supplied
#2
#4
#3
#4
#2
#2
#2
#2
#2
not supplied
not supplied
chassis section
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
Ver. 1.1
