HCD-F200/F500
17

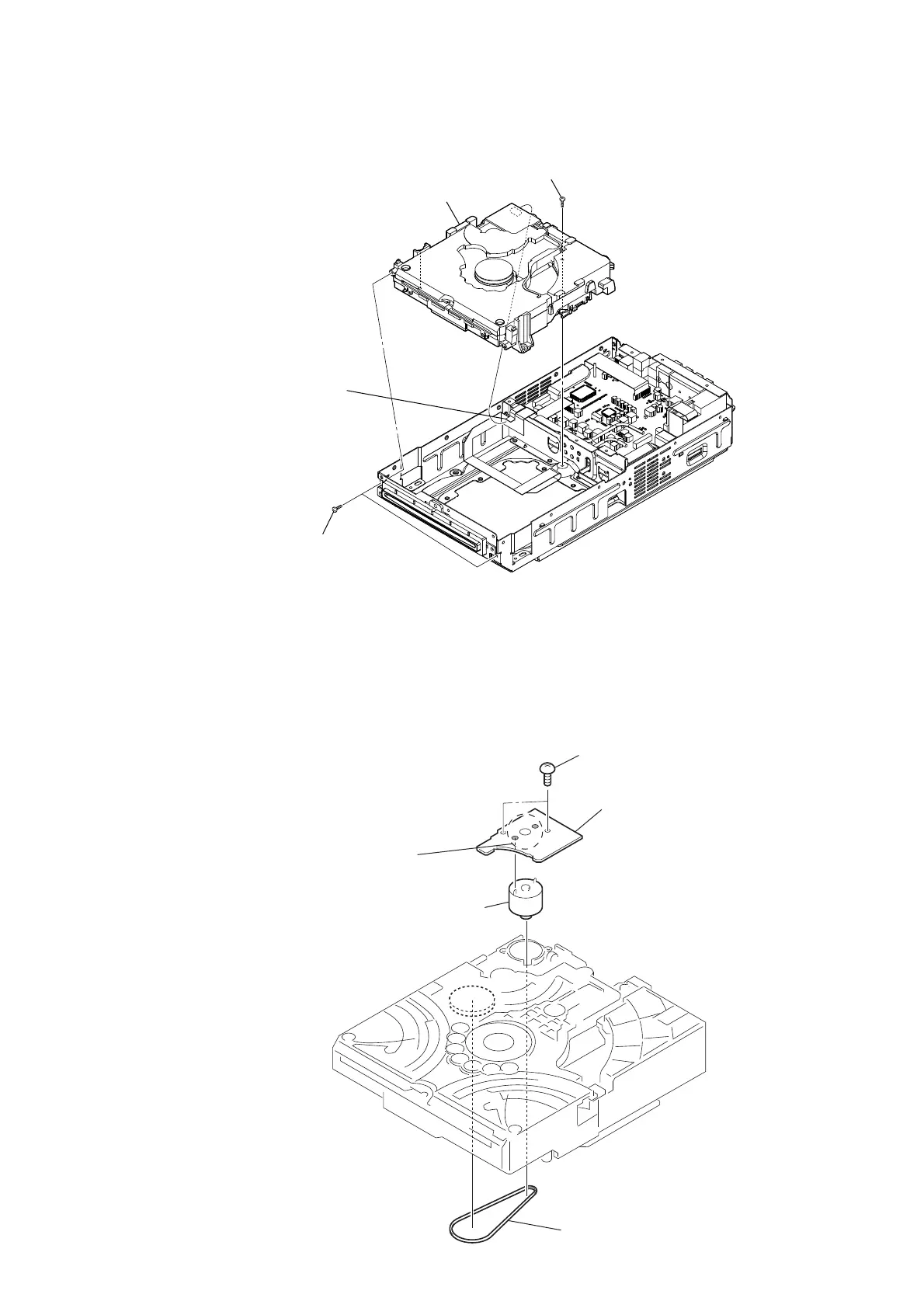

3-12.
DVD MECHANISM BLOCK
3-13.
MO
TOR (PULL
Y) ASSY
(LOADING) (M001)
screw
(BVTP3
×
8)
two
screws
(BVTP2.6)
DVD mechanism block
wire (flat type)
Remove two solders.
two
screws
(B
2.6
×
8)
MS-214
board
motor (pully) assy (loading)
(M001)
belt
(MOT)
70
72
