To connect a camcorder, video game
C Audio/video cord (not supplied)
Note
Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
Function for conversion of video signals
This receiver is equipped with a function for converting video signals.
• Composite video signals can be output as HDMI video and component video signals.
• Component video signals can be output as HDMI video and video signals.
As the initial setting, video signals input from the connected component are output to the HDMI
OUT or MONITOR OUT jacks as shown in the table below.
We recommend you set the video conversion function to match the resolution of the monitor you
are using.
For details on the video converting function, see “Video settings” (page 118).
a : Video signals are output.
– : Video signals are not output.
* HDMI video signals cannot be converted to component video signals and video signals.

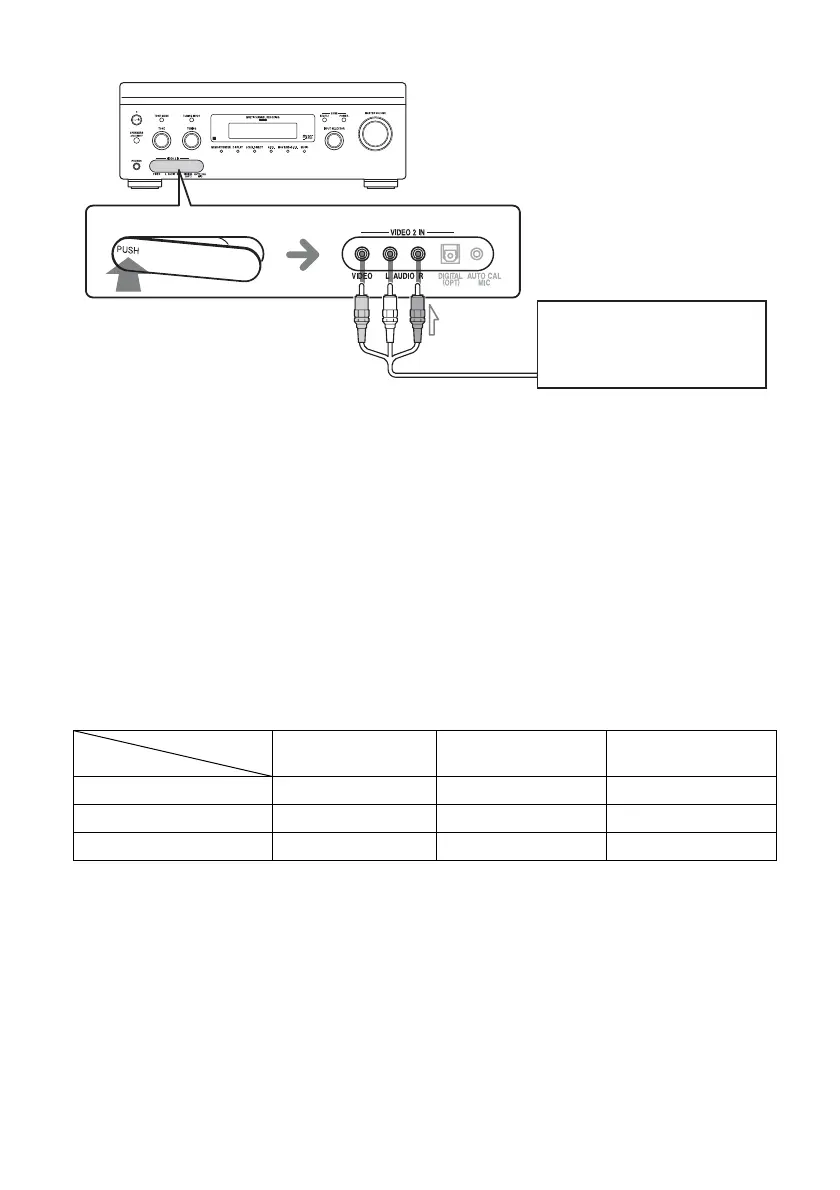

To the VIDEO 2 IN jacks
Camcorder,
video game
C
HDMI OUT
COMPONENT VIDEO
MONITOR OUT
MONITOR VIDEO OUT
HDMI IN 1/2/3/4* a ––
VIDEO IN aa a
COMPONENT VIDEO IN aa a
INPUT jack
OUTPUT jack
