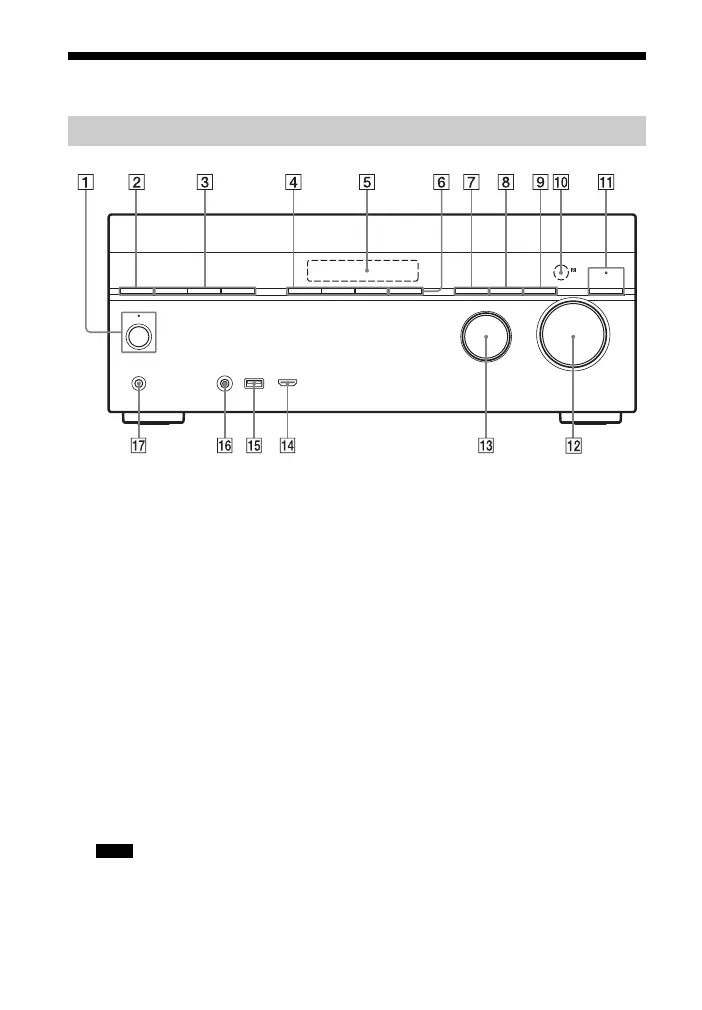

Description and location of parts
A ?/1 (on/standby) (page 37, 53, 60,
90)
The indicator above the button lights
up as follows:
Green: The receiver is turned on.
Amber: The receiver is in standby
mode, and
– Either “Control for HDMI”
(page 99), “Network Standby”
(page 101), or “Bluetooth Standby”
(page 81) is set to “On”.
– “Pass Through” is set to “On” or
“Auto” (page 99).
– The receiver in zone 2 is turned on
(page 89).
Lights off when the receiver is in
standby mode and “Control for
HDMI”, “Pass Through”, “Network
Standby”, and “Bluetooth Standby”
are set to “Off”.
If the indicator flashes slowly, the software
update is in progress (page 75).
B SPEAKERS (page 39)
C TUNING MODE, TUNING +/–
Press TUNING MODE to operate a
tuner (FM/AM).
Press TUNING +/– to scan a station.
D A.F.D./2CH, MOVIE, MUSIC (page
46, 55, 60)
E Display panel (page 12)
F SOUND OPTIMIZER (page 59)
G BLUETOOTH (page 78)
Operates the Bluetooth function.
H DIMMER
Adjusts the brightness of the display
panel in 3 levels.
I DISPLAY (page 107)
J Remote control sensor
Receives signals from remote control.
K PURE DIRECT (page 59)
The indicator above the button lights
up when Pure Direct function is
activated.
L MASTER VOLUME (page 46, 97)
M INPUT SELECTOR (page 39, 46, 86)
Front panel
