Sony STR-DN1040 User Manual

22
US
The receiver is equipped with a function for converting video signals.
Video signals and component video signals can be output as HDMI video signals. As the
default setting, video signals input from the connected equipment are output as shown in
the table with solid arrows.
Notes on converting video
signals
• When video signals from a VCR, etc., are
upconverted on this receiver and then
viewed on your TV, depending on the
status of the video signal output, the
image on the TV screen may appear
distorted horizontally or no image can be
seen.
• If you are using an image improvement
circuitry with your VCR, it may impact
the video signal conversion. It is
recommended to turn off this function on
your VCR.
• Converted HDMI image output does not
support “x.v.Color (x.v.Colour)”, Deep
Color (Deep Colour), and 3D.
• HDMI video signals cannot be converted
to component video signals and video
signals.
• 1080p component video signals cannot
be upconverted.

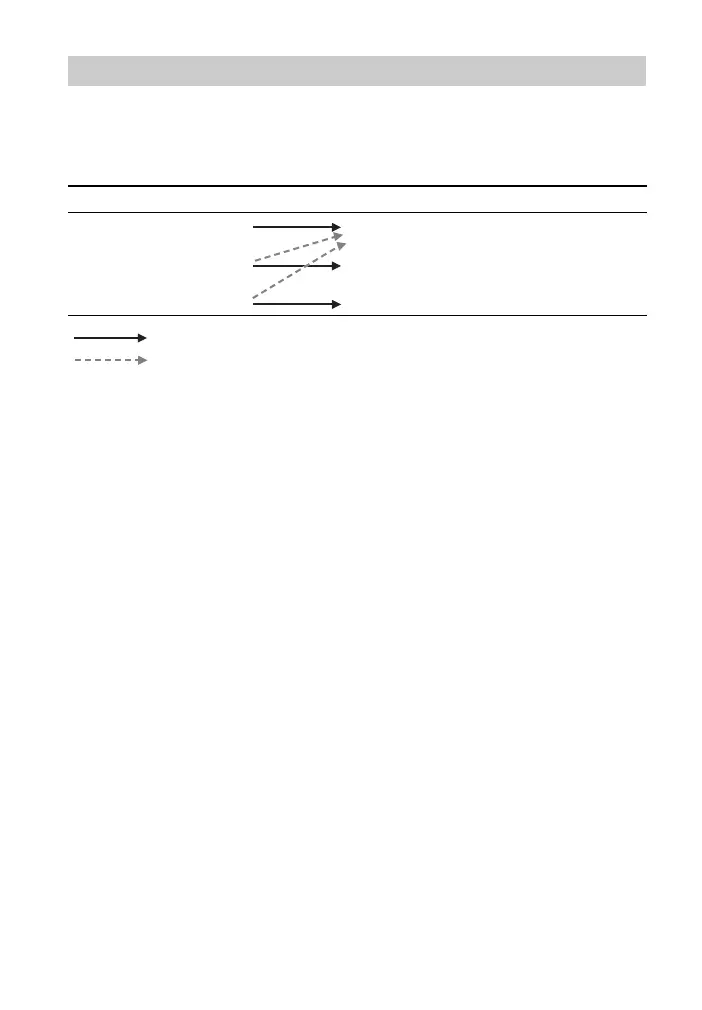

Function for conversion of video signals
INPUT jack OUTPUT jack
HDMI IN
COMPONENT VIDEO IN
VIDEO IN
HDMI OUT
COMPONENT VIDEO MONITOR OUT
MONITOR OUT
: Same type of signal as that of the input signal is output.
: Video signals are upconverted and output (up to 4K).

Sony STR-DN1040 Specifications

General

Receiver type	-
Audio output channels	7.2 channels
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	4
Digital audio optical in	1
Connectivity technology	Wired & Wireless
Wi-Fi	Yes
Ethernet LAN	No
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS 96/24, DTS-HD
Apple docking compatibility	Not supported
Audio formats supported	AAC, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	329.4 mm
Width	430 mm
Height	172 mm
