S MIC Chassis
B (3/3) BOARD WAVEFORMS
PAL SECAM NTSC
Q165 B 0.7 0.7 0.7
C GND GND GND
E 1.4 1.4 1.4
Q166 B 0.6 0.6 0.6
C GND GND GND
E 1.2 1.2 1.2
Q167 B 0.7 0.7 0.7
C GND GND GND
E 1.5 1.5 1.5
Q168 B 1.4 1.4 1.4
C GND GND GND
E 2.1 2.1 2.1
Q170 B 2.4 2.1 2.1
C 12VA 12VA 12VA
E 1.7 1.5 1.5
Q172 B 2.0 2.0 2.0
C 12VA 12VA 12VA
E 1.4 1.4 1.4
Q173 B 1.4 1.4 1.4
C GND GND GND
E 1.9 1.9 1.9
Q157 B 1.8 1.8 1.8
C 96.5 96.5 96.5
E 1.4 1.4 1.4
Q158 B 0.8 0.8 0.8
C 96.5 96.5 96.5
E 1.4 1.4 1.4
Q159 B 2.1 2.1 2.1
C 94.9 94.9 94.9
E 1.4 1.4 1.4
Q161 B 0 0 0
C 0.5 0.5 0.5
E GND GND GND
Q189 1 4.1 4.1 4.1
2 0.6 0.6 0.6
3 0 0 4.2
4 7.3 7.3 7.3
5 1.7 1.7 2.9
6 4.8 4.8 3.7
Q201 B 1.9 1.9 1.9
C GND GND GND
E 2.6 2.6 2.6
Q202 B 2 2 2
C GND GND GND
E 2.6 2.6 2.6
Q203 B 2 2 2
C GND GND GND
E 2.6 2.6 2.6
Q204 B 2 2 2
C GND GND GND
E 2.6 2.6 2.6
Q205 B 1.7 1.7 1.7
C GND GND GND
E 2.3 2.3 2.3
Q206 B 1.2 1.2 1.2
C GND GND GND
E 1.9 1.9 1.9
Q210 B 97.8 97.8 102.9
C 117.8 117.8 117.8
E 106.5 106.5 106.5
Q211 B 96.2 96.2 96.2
C 119.4 119.4 119.4
E 99.6 99.6 99.6
Q212 G 1.2 1.2 1.2
D 0.7 0.7 0.7
S1 1 1
. All voltages are in V (volt).
. NC: No connection.
B MOUNT (3/3) VOLTAGES
IC
PAL SECAM NTSC
IC116 1 1.4 1.4 1.4
2 1.1 1.1 1.1
3 1.6 1.6 1.6
41 1 1
5 1.7 1.7 1.7
6 GND GND GND
7 GND GND GND
8NC NC NC
9NC NC NC
10 1.4 1.4 1.4
11 0.9 0.9 0.9
12 1.6 1.8 1.8
13 1.6 1.8 1.8
14 12VA 12VA 12VA
IC124 1 4.3 4.3 4.3
2 4.3 4.3 4.3
3 5.2 5.2 5.2
4 GND GND GND
5 8.7 8.7 8.7
6 2.9 2.9 2.9
7 4.3 4.3 4.3
8 3.1 3.1 3.1
9 GND GND GND
10 5.6 5.6 5.6
11 5.7 5.7 5.7
12 5.6 5.6 5.6
13 GND GND GND
14 GND GND GND
15 GND GND GND
16 0 0 0
17 0 0 0
18 0 0 0
19 GND GND GND
20 1.3 1.3 1.3
21 0 0 0
22 0.6 0.6 0.6
23 0.1 0.1 0.1
24 0.1 0.1 0.1
25 4.2 4.2 4.2
26 6.6 6.6 6.6
27 4.8 4.8 4.8
28 7.1 7.1 6.2
29 GND GND GND
30 1.5 1.5 1.5
31 12VA 12VA 12VA
32 6.7 6.7 6.7
33 5.1 5.1 5.1
34 6.9 6.9 6.9
35 GND GND GND
36 1.1 1.1 1.1
37 12VA 12VA 12VA
38 6 6 6
39 6.2 6.8 6.8
40 GND GND GND
41 1.1 1.1 1.1
42 12VA 12VA 12VA
43 12VA 12VA 12VA
44 5.9 5.9 5.9
45 0 0 0
46 7.3 7.3 7.3
47 5.6 5.6 5.6
48 6.4 6.4 6.4
PAL SECAM NTSC
IC125 1 1.1 1.1 1.1
2 1.4 1.4 1.4
3 1.4 1.4 1.4
4 1.1 1.1 1.1
5 0.7 0.7 0.7
6 0.7 0.7 0.7
7 GND GND GND
8 1.1 1.1 1.1
9 1.2 1.2 1.2
10 1.2 1.2 1.2
11 1.1 1.1 1.1
12 0.7 0.7 0.7
13 0.7 0.7 0.7
14 12VA 12VA 12VA
IC126 1 1.4 1.4 1.4
2 1.4 1.4 1.4
3NC NC NC
4 1.6 1.6 1.6
5 1.6 1.6 1.6
6 GND GND GND
7 GND GND GND
8 GND GND GND
9 GND GND GND
10 10.7 10.7 10.7
11 10.7 10.7 10.7
12 1.4 1.4 1.4
13 1.4 1.4 1.4
14 1.4 1.4 1.4
15 1.4 1.4 1.4
16 12VA 12VA 12VA
IC127 1 4.7 4.7 4.7
2 1.2 1.2 1.2
3 1.1 1.1 1.1
4 GND GND GND
5 1.1 1.1 1.1
6 1.1 1.1 1.1
7 4.8 4.8 4.8
8 10.2 10.2 10.2
TRANSISTOR
Q109 B 2.5 2.5 2.5
C 0.5 0.5 0.5
E GND GND GND
Q146 B 0.2 0.2 0.2
C 112 112 112
E GND GND GND
Q147 B 119.8 119.8 119.8
E 115.5 115.5 115.5
C 122.8 122.8 122.8
Q148 B 84.3 84.3 87.3
C 96.5 96.5 101.9
E 98 98 103.2
Q149 B 96.5 96.5 96.5
C 2.5 2.5 2.5
E 103.5 103.5 103.5
Q151 B 93.2 93.2 93.2
C 96.5 96.5 101.9
E 97.8 97.8 102.9
Q152 B 96.5 96.5 101.9
C 2.5 2.5 2.5
E 105 105 105
Q154 B 93.2 93.2 93.2
C 99.2 99.2 99.2
E 101.2 101.2 101.2
Q155 B 94.5 94.5 94.5
C 2.7 2.7 2.7
E 96.3 96.3 96.3

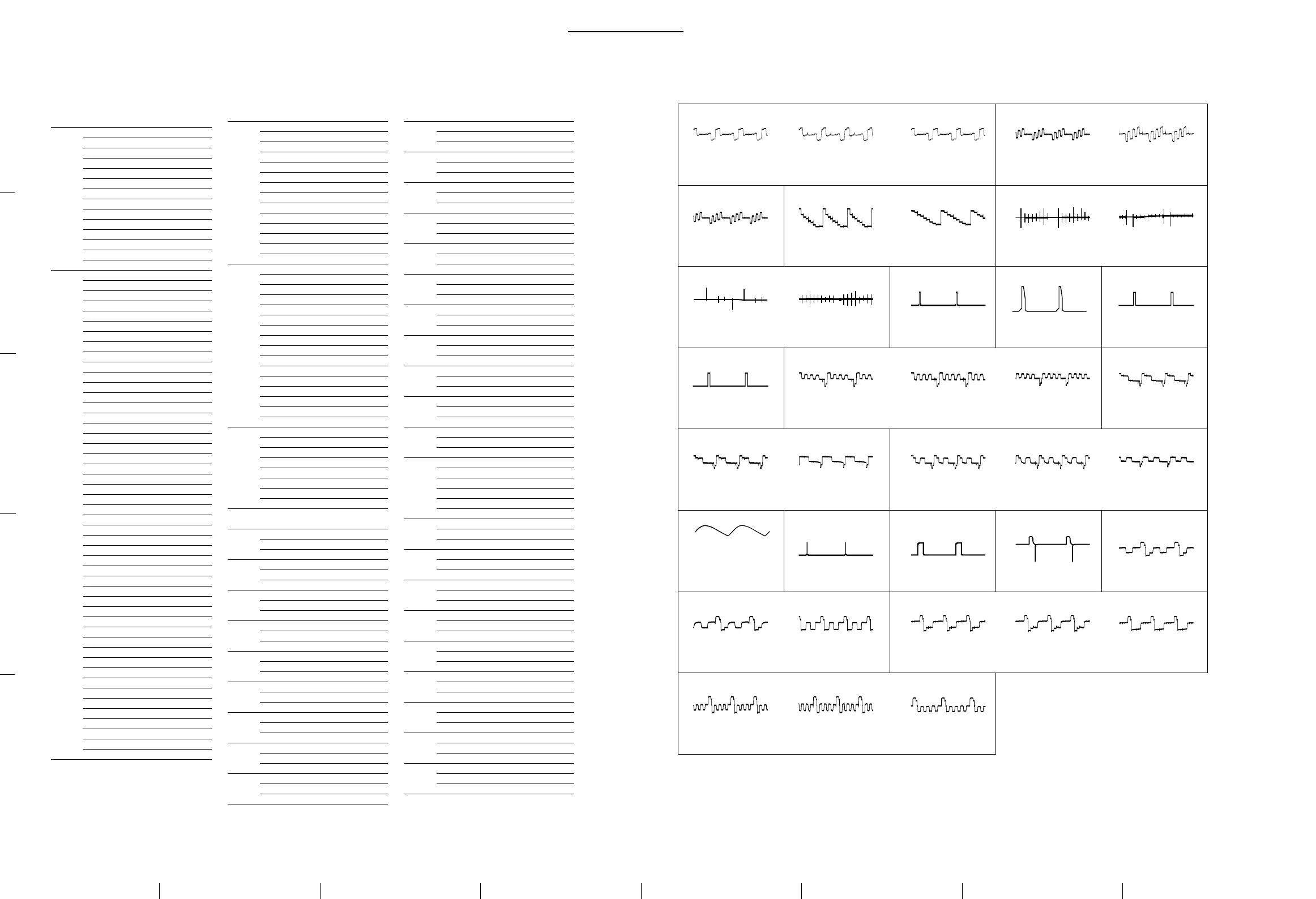

SECAM 0.25 V p-p (H)
NTSC3.58 0.25 V p-p (H)
NTSC4.43 0.25 V p-p (H)

PAL 0.29 V p-p (H) SECAM 0.37 V p-p (H)PAL 0.27 V p-p (H)
PAL 0.58 V p-p (H)
SECAM 0.58 V p-p (H)

NTSC3.58 0.42 V p-p (H)
NTSC4.43 0.42 V p-p (H)

PAL 0.36 V p-p (H) SEVCAM 0.35 V p-p (H)
NTSC 3.58 0.29 V p-p (H)
NTSC4.43 0.29 V p-p (H)

NTSC4.43 0.6 V p-p (H)

4.7 V p-p (V) 10.2 V p-p (H) 3.5 V p-p (V)NTSC3.58 0.8 V p-p (H)
PAL 2.0 V p-p (H) SECAM 2.0 V p-p (H)
NTSC3.58 2.0 V p-p (H)
NTSC4.43 2.0 V p-p (H)

PAL 1.8 V p-p (H)3.5 V p-p (H)
NTSC3.58 1.5 V p-p (H)
NTSC4.43 1.5 V p-p (H)

PAL 1.8 V p-p (H) SECAM 1.8 V p-p (H)
NTSC3.58 1.6 V p-p (H)
NTSC4.43 1.6 V p-p (H)

SECAM 1.8 V p-p (H)
12 V p-p (H) 11 V p-p (H) 2.6 V p-p (H) PAL 38 V p-p (H)
PAL 0.54 V p-p (V)
SECAM 0.54 V p-p (V)
NTSC3.58 0.46 V p-p (V)
NTSC4.43 0.46 V p-p (V)
NTSC3.58 38 V p-p (H)
NTSC4.43 38 V p-p (H)

PAL 45 V p-p (H) SECAM 45 V p-p (H)
NTSC3.58 40 V p-p (H)
NTSC4.43 40 V p-p (H)

SECAM 38 V p-p (H)
SECAM 48.6 V p-p (H)
NTSC3.58 43 V p-p (H)
NTSC4.43 43 V p-p (H)

PAL 46.8 V p-p (H)
2
21
34
4
567
8
!/
9 !/
!-
!=
![
!;
!;
!\!]
!'
!,
B (3/3) B (3/3)
