2
3
4
5
AB C D E F G H
1
10-410-4
S MIC Chassis
10-2. SCHEMATIC DIAGRAMS/PRINTED WIRING BOARDS
Note:
. All capacitors are in µF unless otherwise noted.
PF: 50 WV or less are not indicated except for electorlytics.
. All electrolytics are in 50 V unless otherwise specified.
. All resistors are in ohms, 1/4 W in resistance, 1/10 W in chip
resistance.
kZ = 100, MZ = 1000 kZ
. : nonflammable resistor.
. ¢ : internal component.
. : panel designation, or adjustment for repair.
. All variable and adjustable resistors have characteristic curve B,
unless otherwise noted.
. The “4-1. +B Voltage Check” and “4-2. Protection Circuit (Hold-down
circuit) Check” should always be performed when replacing the
following components (marked on the schematic diagram).
. Readings are taken with a color-bar signal input.
no mark : With PAL color-ber signal receved or common voltage.
( ) : With SECAM color-ber signal receved.
< > : With NTSC (3.58, 4.43) color-ber signal receved.
. Readings are taken with a 10 MZ digital multimeter.
. Voltage are dc with respect to ground unless otherwise noted.
. Voltage variations may be noted due to normal production
tolerances.
. All voltages are in V.
. Circled numbers are waveform reference.
. :B+ bus.
. :B_ bus.
. : signal path.
.
*
: Measurement impossibility.
Reference information
RESISTOR : RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: RW NONFLAMMABLE WIREWOUND
COIL : LF-8L MICRO INDUCTOR
CAPACITOR : TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
Les composants identifies par une marque ! sont critiques
pour la securite. Ne les remplacer que par une piece portant
le numero specifie.
The components identified by mark ! are critical for safety.
Replace only with part number specified.
V
V

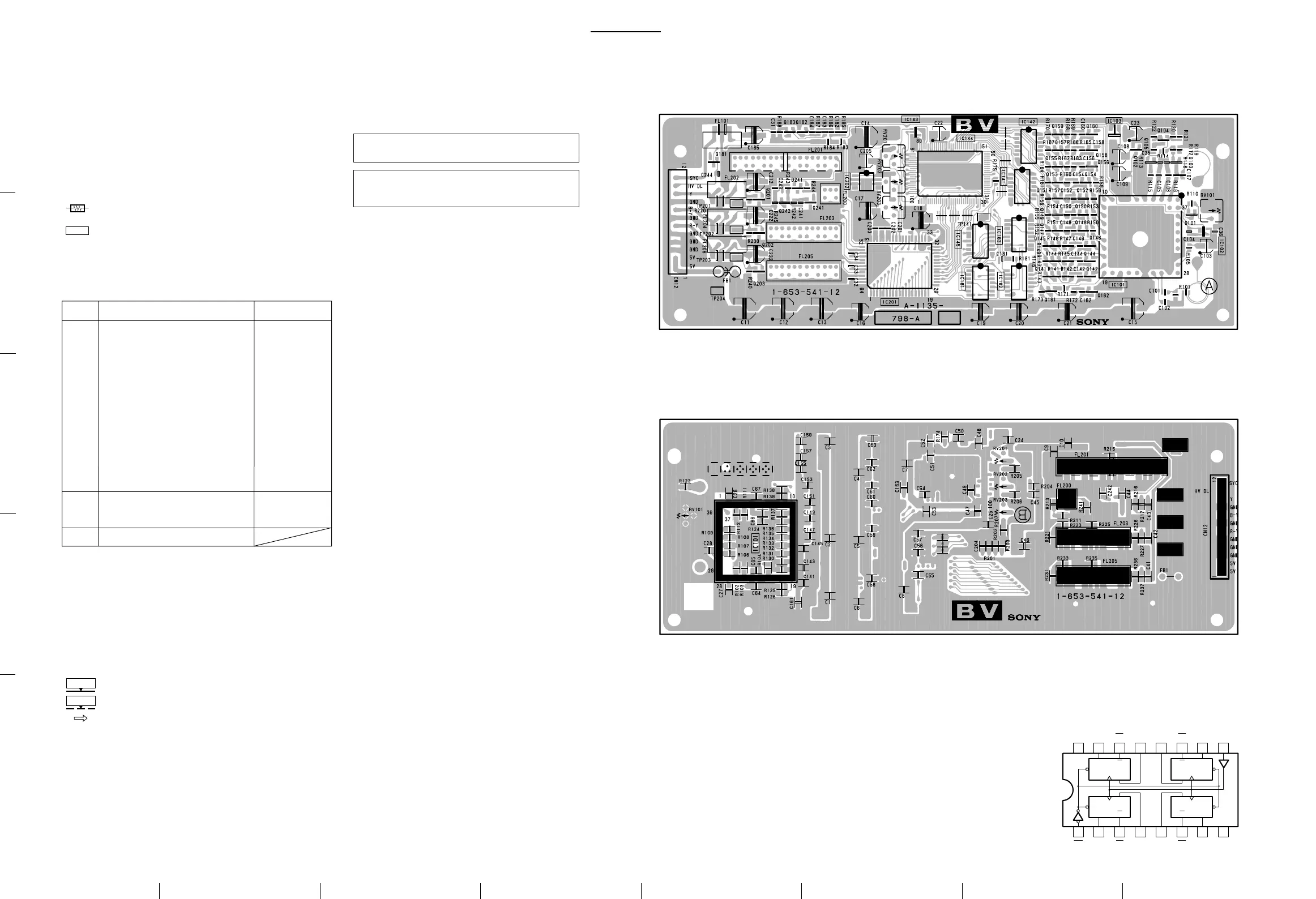

BV -A SIDE-
SUFFIX: -12
BV -B SIDE-
SUFFIX: -12
BV BV
16 15 14 13 12 11 10 9
8
DD
DD
Q4 D4 D3 Q3 CK
Q1 D1 D2 Q2
V
DD
Q
GND
Q
RDRD
RDRD
7654321
QQ
QQQQ
RD Q1 Q2
Q4 Q3
BV BOARD IC183 MC74HC175F
BV BOARD
RV833, RV1603
RV651
C519, C843, C844, C845, C846,
C847, C848, C1601, C1602,
D835, D836, D1601, D1603,
IC502, Q833, Q834, Q835,
Q836, Q1601, Q1602, Q1603,
R523, R850, R851, R852, R853,
R854, R855, R856, R857, R858,
R859, R860, R861, R862, R863,
R1601, R1602, R1603, R1604,
R1605, R1606, R1607, R1608,
R1628, R1629, R1630, RV833,
RV1601, RV1603
C654, IC601, IC651, PH601,
R653, R655, R656, R657, RV651
C814, NL801, T802 (FBT)
Parts Parts
D
G
P
Board
To Next Page
