Sony TRINITRON BVM-8045QD User Manual

5-2
S MIC Chassis
5-1-3. Vertical Blanking Adjustment (RV501)
Input signal: Monoscope signal
Switches: UNDER SCAN 8 Push (ON)
16 : 9 8 Pull (4 : 3)
Controls: BRIGHT 8 Maximum
CONTR 8 Minimum
1. Adjust RV501 (V.BLKG) so that the upper white frame
of monoscope signal is not blanked.
5-1-4. Horizontal Blanking Adjustment (RV516)
Input signal: Monoscope signal
Switches: UNDER SCAN 8 Push (ON)
16 : 9 8 Pull (4 : 3)
Controls: BRIGHT 8 Maximum
CONTR 8 Minimum
1. Adjust RV516 (H.BLKG) so that the left white frame
of monoscope signal is not blanked.
5-1-5. Vertical Deflection System Adjustment
(RV505, RV507, RV504, RV518)
Input signal: Monoscope signal
Switches: UNDER SCAN 8 Pull (OFF)
16 : 9 8 Pull (4 : 3)
Controls: BRIGHT 8 50 % (Center click)
CONTR 8 70 %
1. Adjust RV505 (V.SIZE) so that the vertical size of
monoscope signal on the CRT screen is 12 frames.
2. Adjust the vertical linearity with RV507 (V.LINE).
3. Adjust the vertical position with RV504 (V.CENT).
4. Press the UNDER SCAN switch of the front panel.
5. Press the 16 : 9 switch of the front panel.
6. Adjust the vertical size with RV518 (16 : 9 V.SIZE).

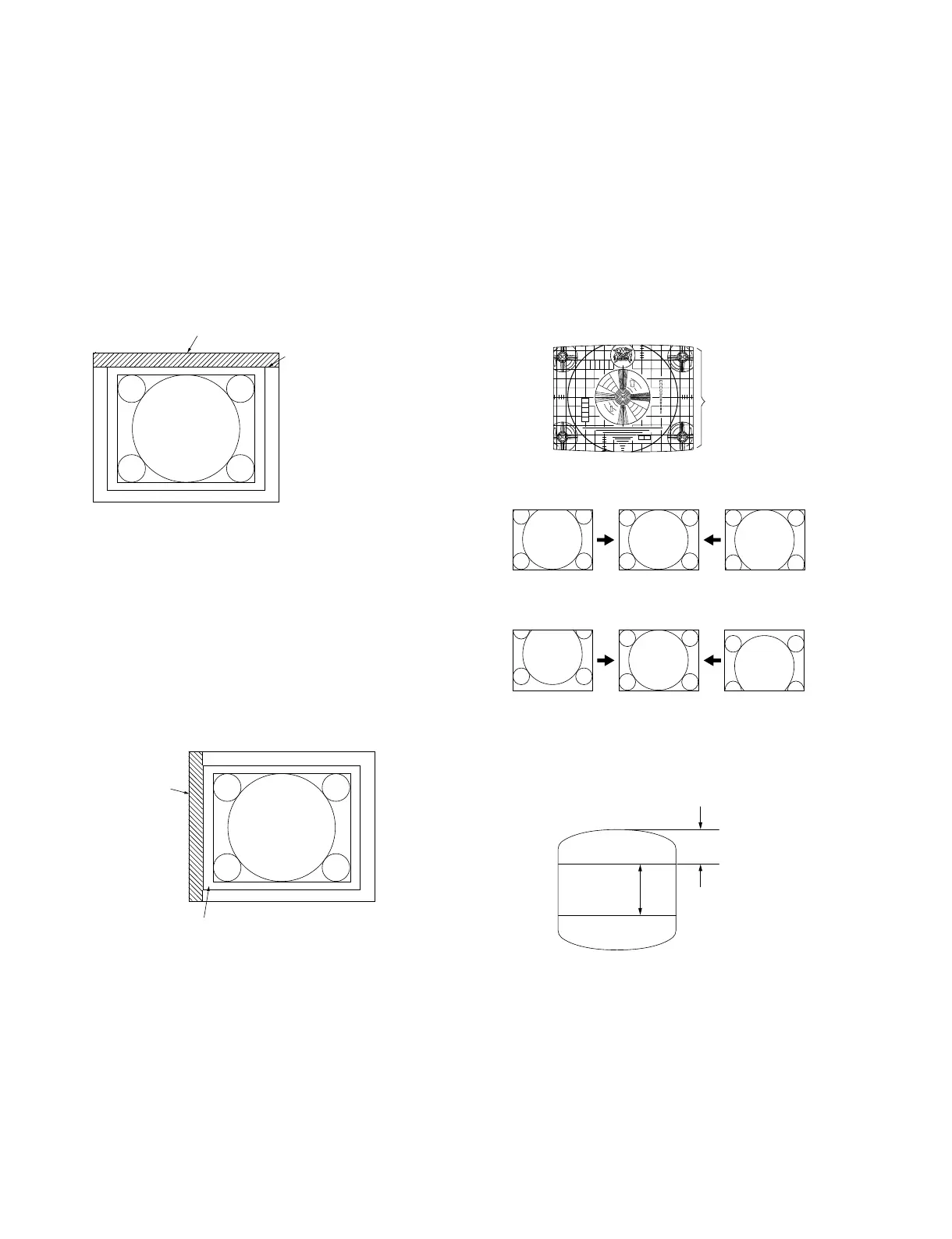

V.Blanking
Be sure not to blank the
upper white frame of a
monoscope signal.
12 frames
11 ±1 mm
Monoscope
screen
Screen center
H.Blanking
Be sure not to blank the left white frame
of a monoscope signal.
