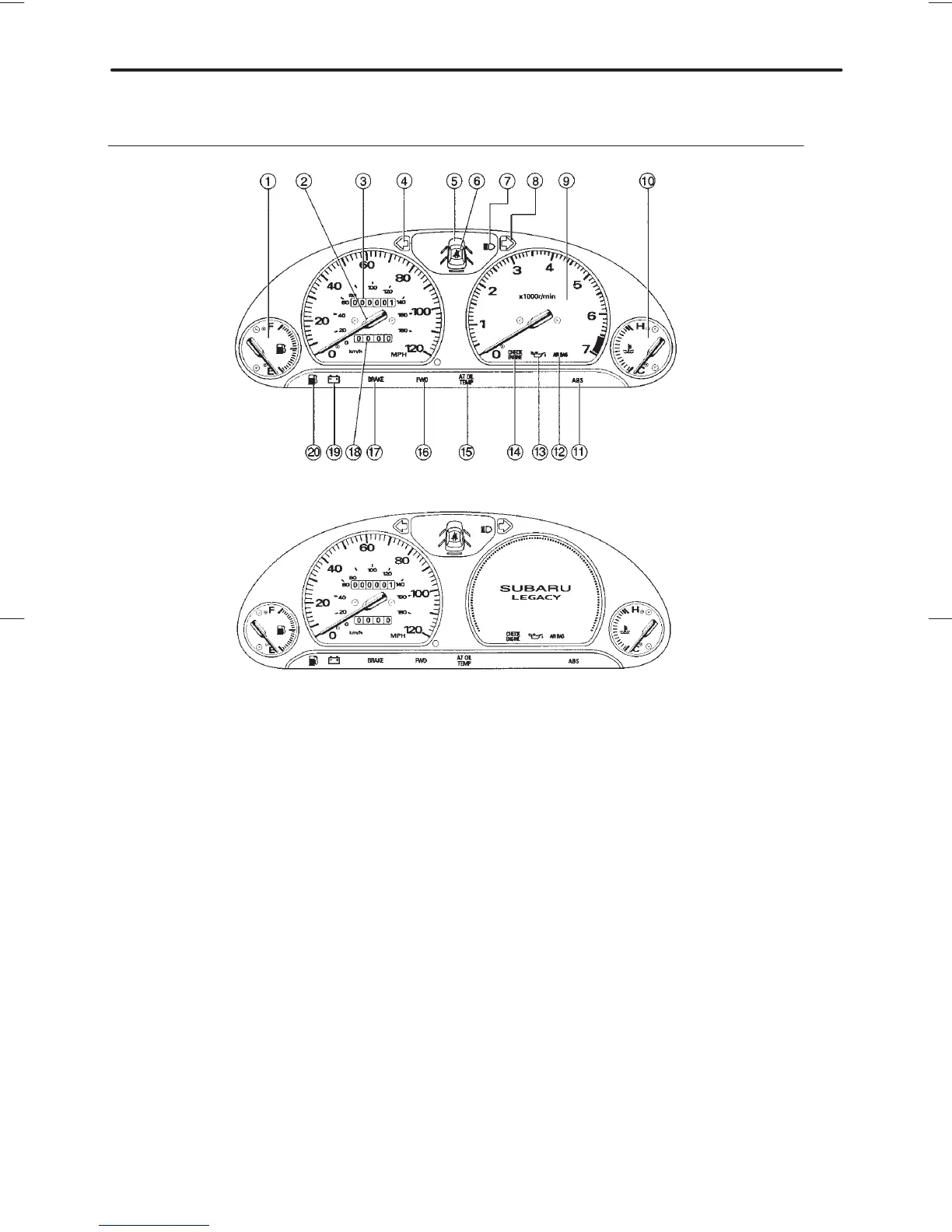

Combination meter overview
HB0246
HB0247
1 Fuel gauge (page 3-6)
2 Speedometer (page 3-5)
3 Odometer (page 3-5)
4 Turn signal indicator light
(page 3-12)
5 Door open warning light
(page 3-12)
6 Seatbelt warning light
(page 3-7)
7 High beam indicator light
(page 3-12)
8 Turn signal indicator light
(page 3-12)
9 Tachometer (page 3-5)
Q Temperature gauge (page 3-6)
W ABS warning light (page 3-10)
E SRS AIRBAG warning light
(page 3-7)
R Oil pressure warning light
(page 3-8)
T CHECK ENGINE warning light/
Malfunction indicator lamp
(page 3-9)
Y AT oil temperature warning light
(page 3-11)
U Front-wheel drive warning light
(page 3-12)
I Brake system warning light
(page 3-8)
O Trip meter (page 3-5)
P Charge warning light (page 3-8)
A Low fuel warning light (page 3-12)
