J Passive arming
When passive arming mode has been programmed by the dealer, arm-
ing of the system is automatically accomplished without using the remote
transmitter. Note that in this mode, DOORS MUST BE MANUALLY
LOCKED.
B To enter the passive mode
WARNING
Do not disconnect or tamper with any yellow connector and/or
any harness covered with yellow insulation and/or tape.
Doing so could result in accidental inflation of the SRS AIRBAG
or could make the SRS AIRBAG system inoperative, which may
result in serious injury.
HB1006BA
White
(1 p)
Connector for
SRS AIRBAG
System
(yellow)
HB1007CB

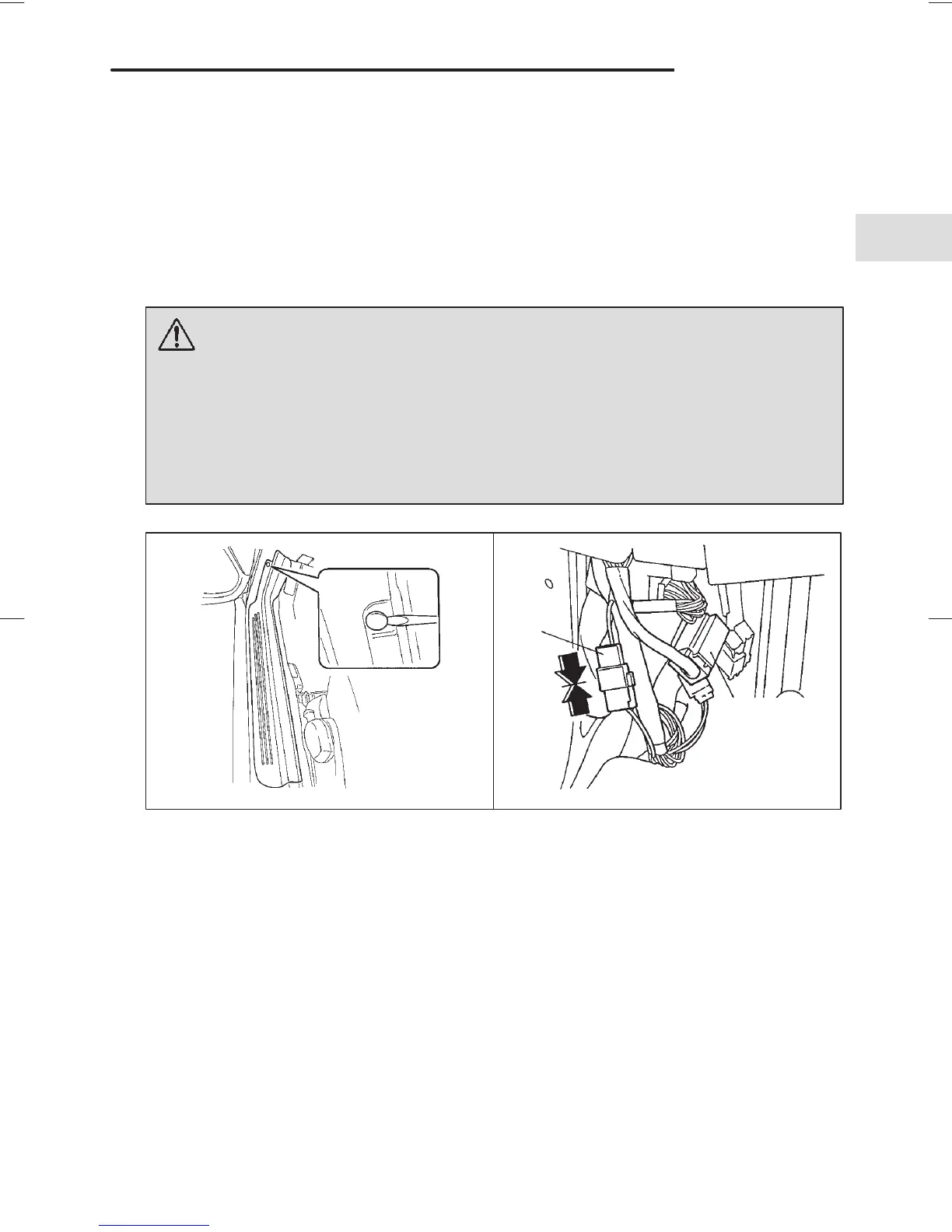

1. Remove the side sill cover on the driver’s side.
1) Open the driver’s door.
2) Remove the clip by prying the edge with screwdriver.
3) Remove the side sill cover by pulling it up.
2. Connect the white (1 pole) connector.
3. Install the side sill cover.
To place the system in active arming mode (remote required for ac-
tivation), disconnect the white connector.
