Legacy U.S.A. (E)
5-14

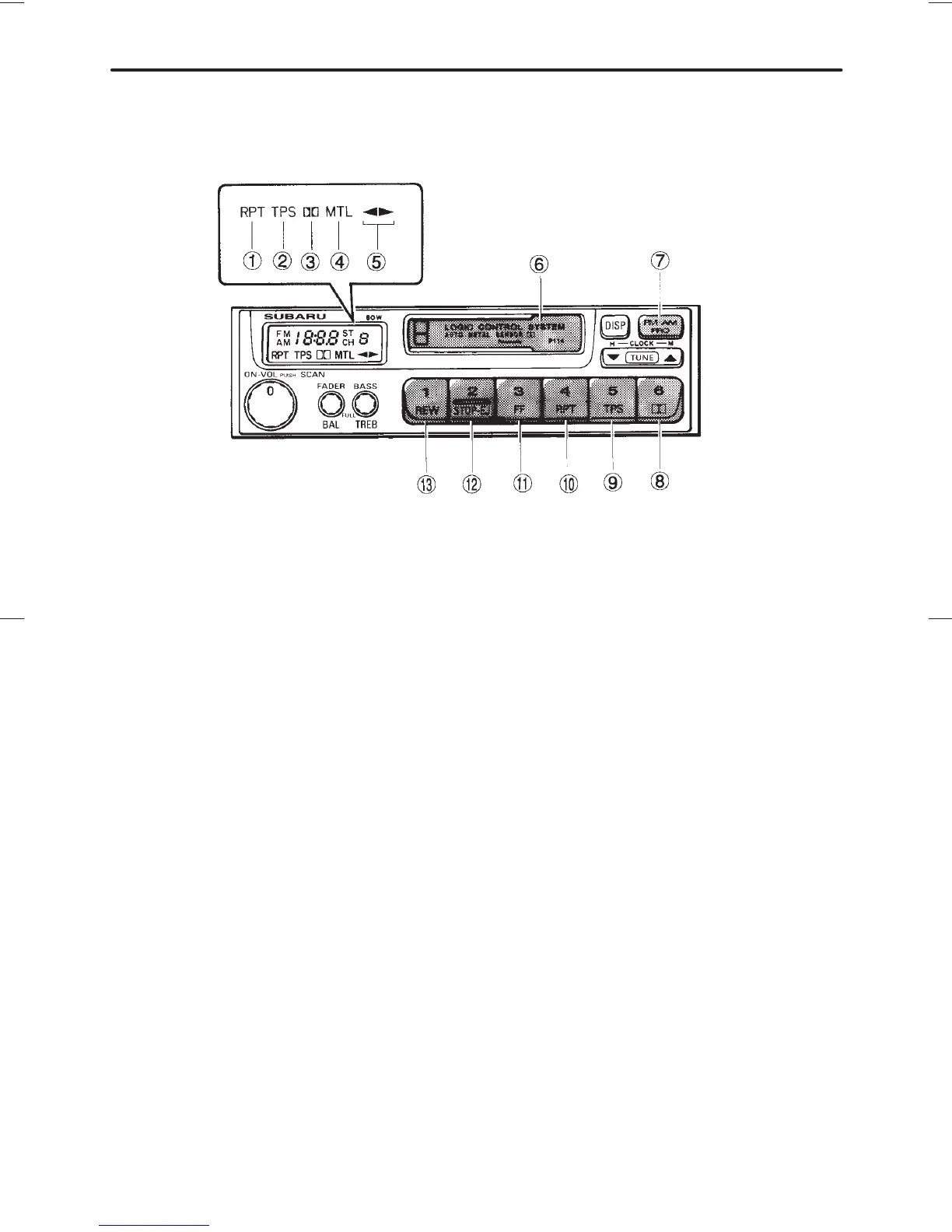

CASSETTE PLAYER OPERATION
OM-H2433
1 Repeat indicator
2 TPS indicator
3 Dolby NR indicator
4 Metal tape indicator
(if equipped)
5 Tape travel indicator
6 Cassette slot
7 Program switching button
8 Dolby NR button
9 Tape program sensor button
Q Repeat button
W Fast forward button
E Stop and eject button
R Rewind button
J Cassette slot
When a cassette is partially inserted, it is automatically drawn in and
starts tape playback.
J Tape travel indicators
These indicate the direction the cassette tape is moving.
" indicates that the top side of the cassette is being played back.
A indicates that the bottom side of the cassette is being played back.
To Next Page
