5 Installing Inverter onto Wall User Manual
26

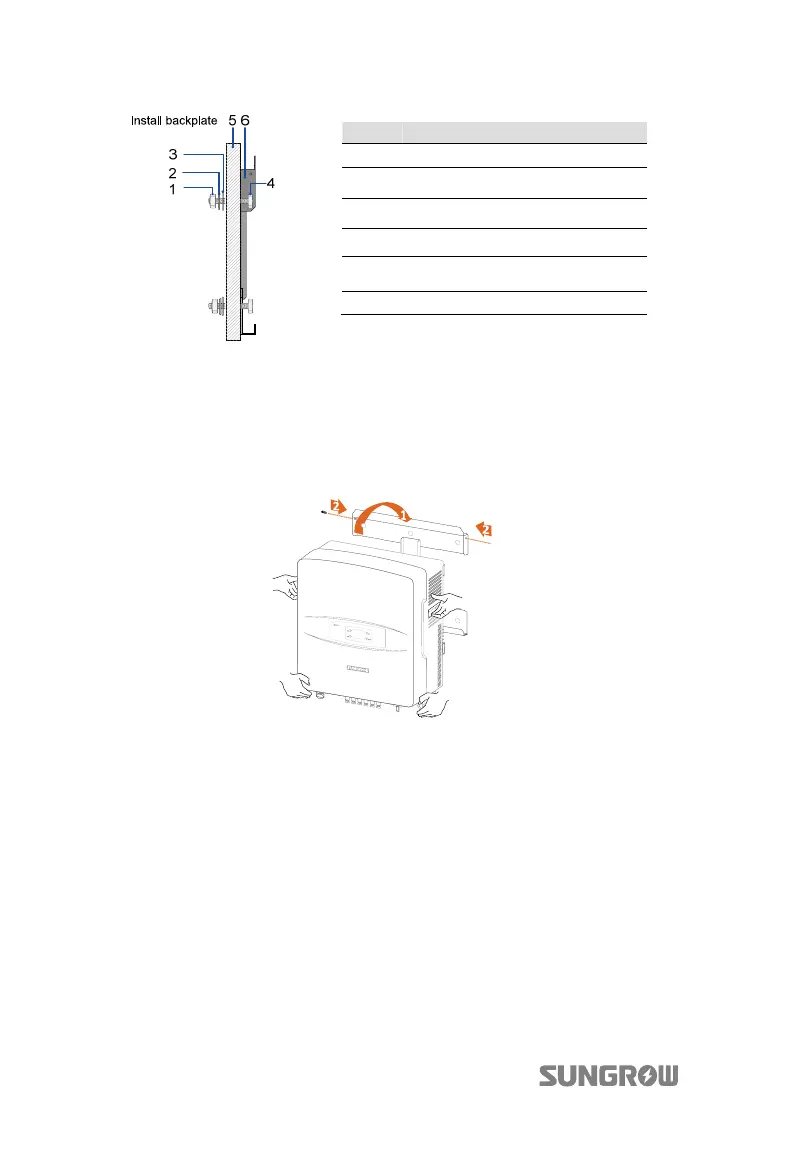

Fig. 5-6 Fasten Backplate against Metal Frame with Bolts and Nuts
Step 6
Lift up the inverter above the backplate with the help of others and then
slide down to make sure that the two mounting ears on the back of the
inverter fit perfectly with the backplate, as shown in Fig. 5-7.
Step 7 After fit the inverter to the backplate, fasten the inverter to the backplate
with two M4×16 screws.
Fig. 5-7 Attaching Inverter onto Backplate
No. Description Remar
1 Hexagonal socket nut M10
2 Spring washer ------
3 Washer ------
4 Hexagonal bolt M10*45
5 Metallic wall ------
6 Backplate ------
To Next Page
