10 Operation of LCD Display Panel User Manual
76
Confirm by pressing ENTER after country code selection.

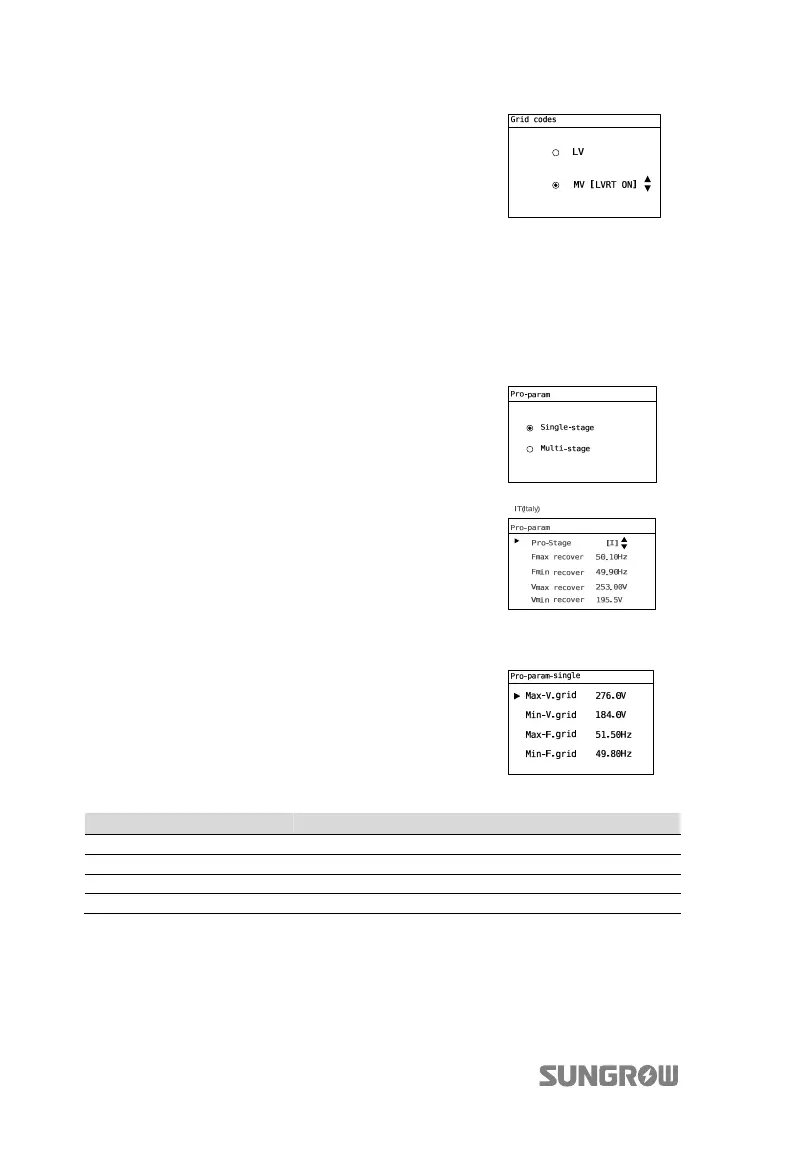

Choose grid code according to actual grid condition.
Note: “LV” represents Low Voltage Grid Code, and “MV”
represents Middle Voltage Grid Code.
When choose MV, Press h to enter the LVRT function
selection, Press j to switch on or off the LVRT function
and Press ENTER to confirm the selection.
Note: If the Country selected does not have the “Grid
codes” directives, this configuration will not affect the
following procedures.
However, you may select the MV to enable/disable the
LVRT function regardless of the country selected.
Press j to select protective parameter type. Press ENTER
to confirm the selection.
If the country selection is “IT” (Italy), the Pro-param menu
right will show, refer to the 10.14.3 Protective Parameters
Setting for Italy for detailed settings.
Single-stage Protective Parameters (when the country selection is not “IT”)
If the selected protective parameter type is “Single-stage”,
the following sub-menu will come up.
Press j to select parameter, Press h to move cursor right
and Press j to set the appropriate value. Confirm settings
by Pressing ENTER.
Tab. 10-7 Single-stage Protective Parameters Explanation
Parameter Explanation
Max-V.grid Grid over-voltage value
Min-V.grid Grid under-voltage value
Max-Fgrid Grid over frequency value
Min-F.grid Grid under frequency value
To Next Page
