9-6 POWER TRIM AND TILT

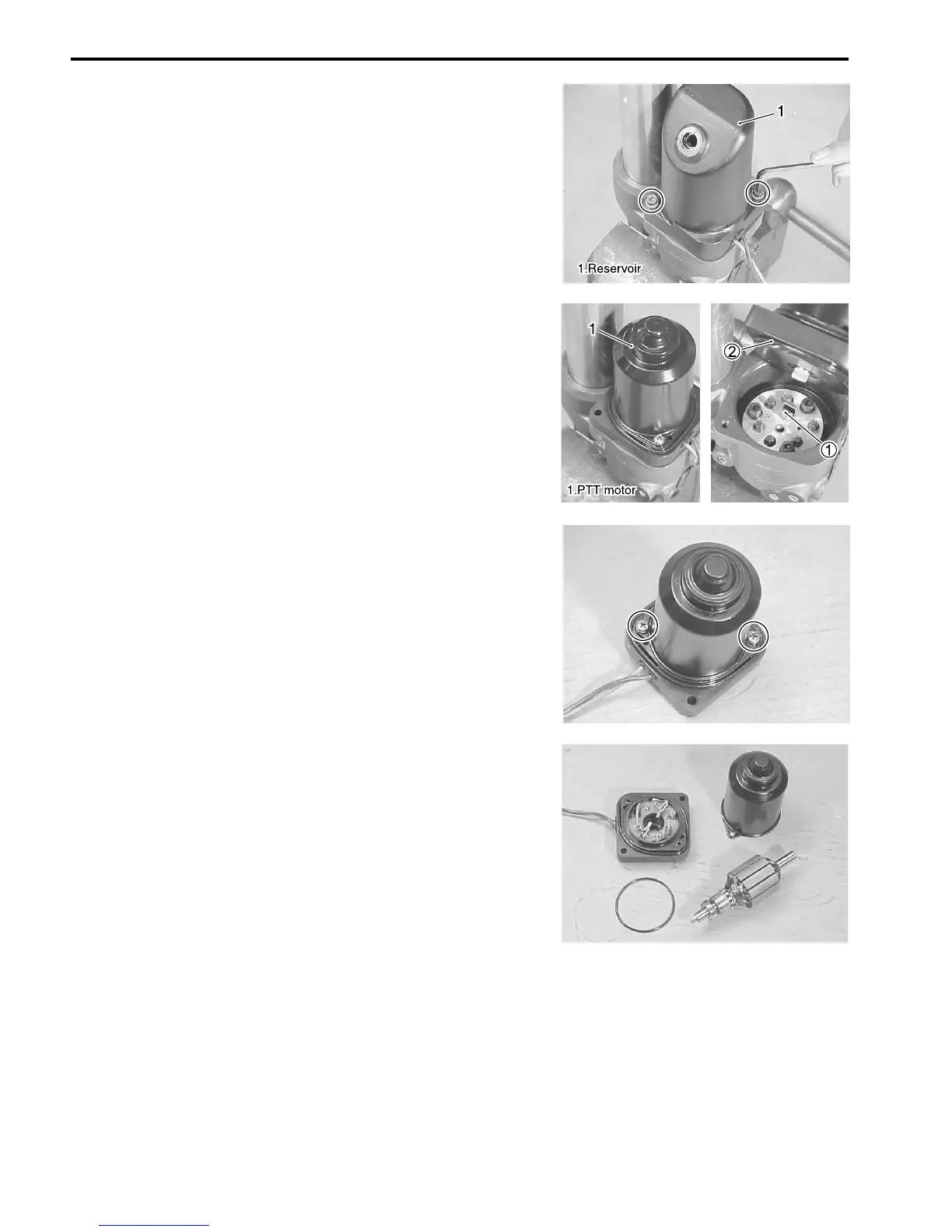

Remove two screws, then detach the reservoir.
MOTOR DISASSEMBLY
For correct assembly, scribe an alignment mark on the field case
and brush holder.
Remove the two (2) screws securing the field case to the brush
holder.
Using a soft face hammer, gently tap the field case from side to
side to unseat it from the brush holder.
Slide the field case upward and away from the brush holder.
Note the position of the O-ring encircling the brush holder.
Slide the armature free of the brushes.
Detach the PTT motor from pump & reservoir.
Note the position of drive joint 1 and O-ring 2 and remove
them.
NOTE:
Do not lay PTT components out on a rag , as dirt or lint may be
transferred to these items which may cause possible system
operating problems.
