POWER TRIM AND TILT 9-11

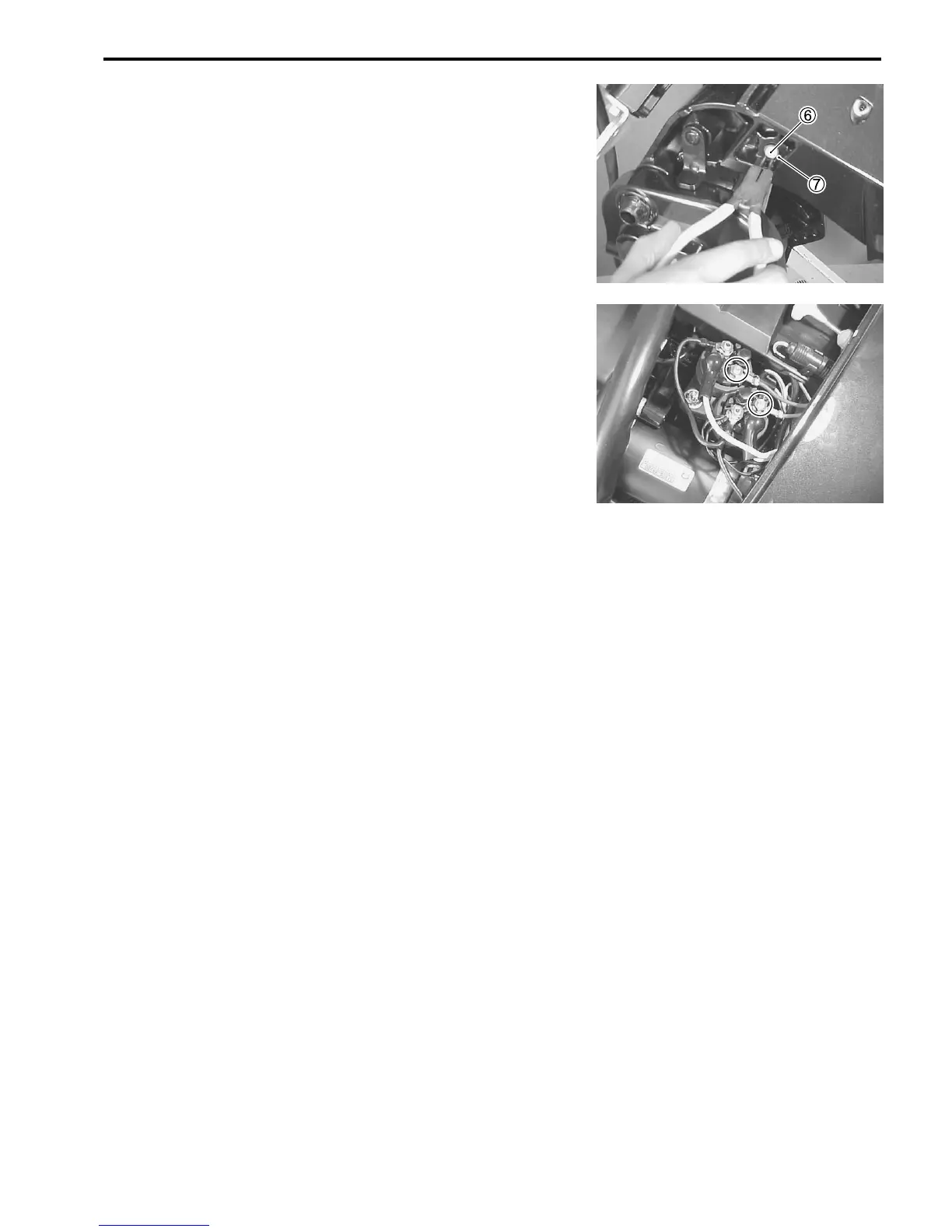

Apply Water Resistant Grease to the PTT rod upper shaft 6,
then insert the shaft through the swivel bracket and tilt rod.
99000-25160 : Water Resistant Grease
Secure the upper shaft with the snap ring 7.
Route the PTT motor cable in through the lower cover and con-
nect the terminals to the PTT relays.
(Cable routing – see the WIRE / HOSE ROUTING section on
page 11-5 to 11-13.)
