5-17 FUEL SYSTEM
FUEL TANK
DISASSEMBLY / REASSEMBLY

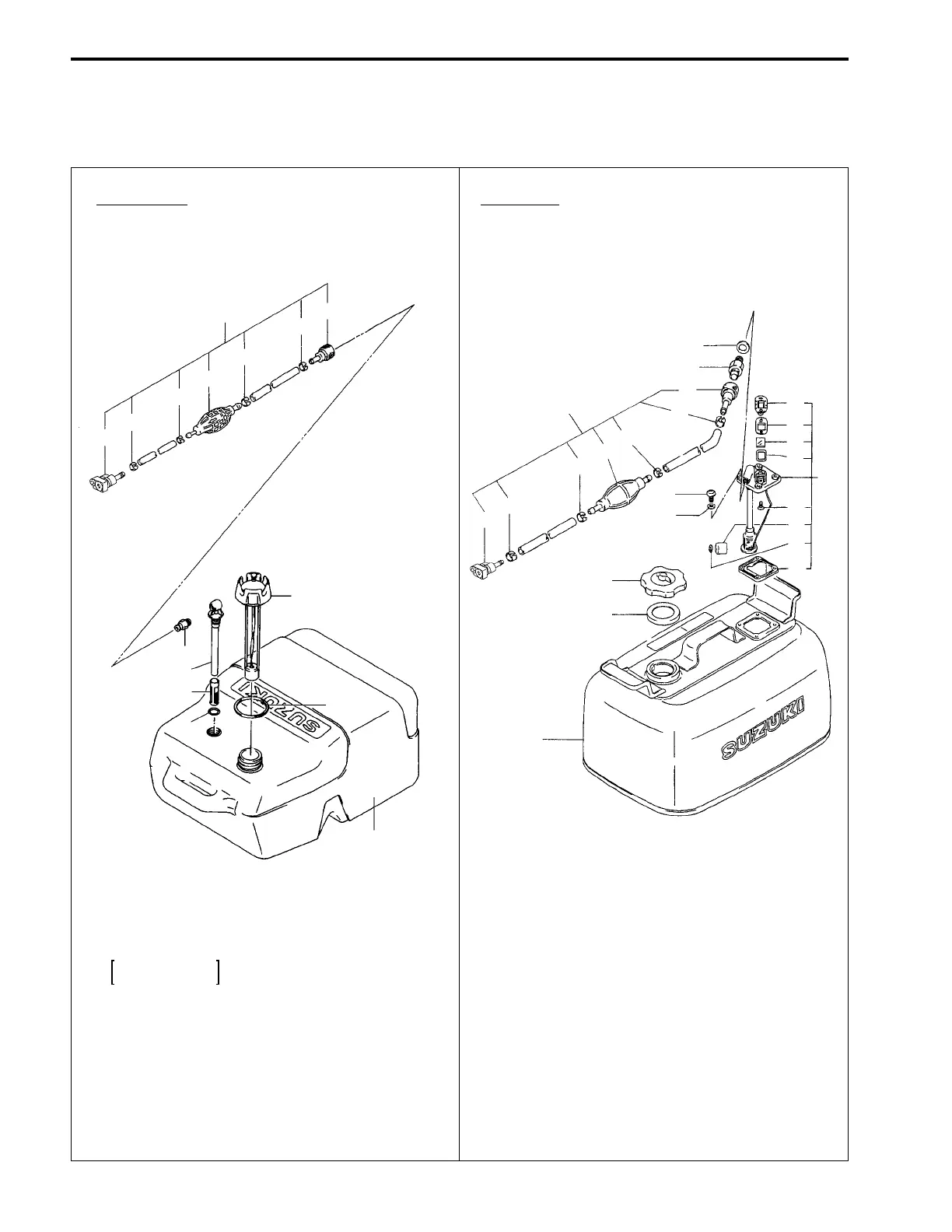

When disassembly or reassembling fuel tank, refer to the construction diagram below.
Plastic tank Steel tank
K
2
1
E
D
C
B
A
0
9
8
6
5
I
H
H
J
H
H
G
F
1 Fuel hose assy (1)
2–(a), Connector
2–(b), Connector
[3 Clip (4)]
[4 Primer bulb (1)]
5 Tank cap (1)
6 Gasket (1)
7 Connector plug (1)
8 Outlet (1)
9 Filter (1)
0 O-ring (1)
A Fuel tank (1)
1 Tank cap (1)
2 Gasket (1)
3 Screw (4)
4 Gasket (4)
5 Connector plug (1)
6 Gasket (1)
7 Fuel gauge assy (1)
[8 Cover (1)]
[9 Gasket (1)]
[0 Lens (1)]
[A Gasket (1)]
[B Screw (2)]
[C Float (1)]
[D Push nut (1)]
[E Gasket (1)]
F Fuel hose assy (1)
[G Connector (1)]
[H Clip (4)]
[I Connector (1)]
[J Primer bulb (1)]
[K Fuel tank (1)]
1
2–(a)
3
3
4
3
3
2
–(b)
5
7
8
9
0
6
A
3
4
7

Suzuki DF 40 Specifications

General

Displacement	941 cc
Starting System	Electric
No. of Cylinders	3
Steering	Remote
Gear Ratio	2.27:1
Alternator Output	12V 19A
Engine Type	4-Stroke, DOHC
Maximum Output	40 hp
Fuel System	Multi-Point Sequential Electronic Fuel Injection
Shaft Length	S: 381 mm, L: 508 mm
Oil Capacity	2.7 L
