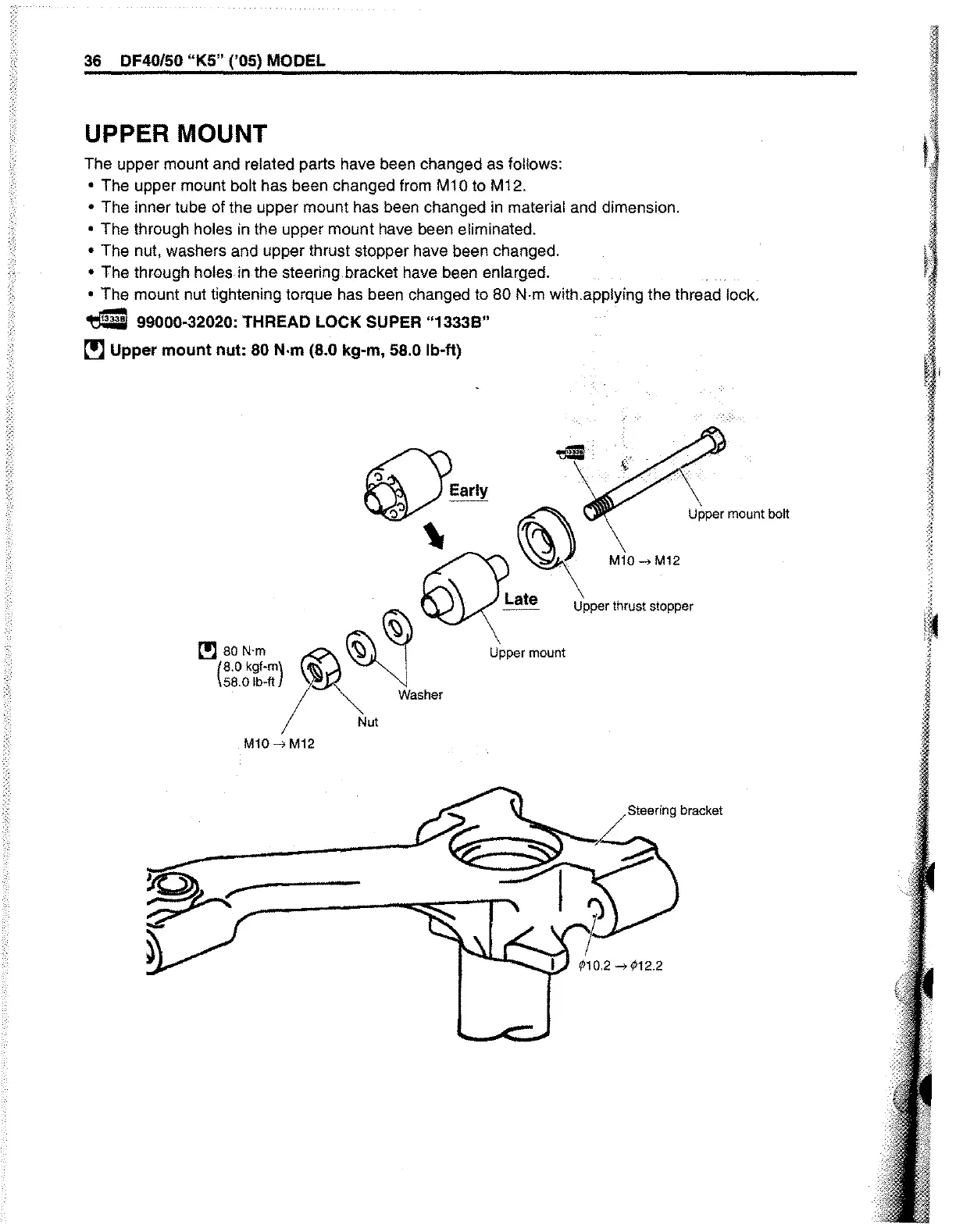

36 DF40/S0 "KS" ('OS) MODEL
UPPER MOUNT
The upper mount and related parts have been changed as follows:
• The upper mount bolt has been changed from M10 to M12.
• The inner tube of the upper mount has been changed in material and dimension.
• The through holes in the upper mount have been eliminated.
• The nut, washers and upper thrust stopper have been changed.
• The through holes in the steering bracket have been enlarged.
• The mount nut tightening torque has been changed to 80 N·m with.applying the thread lock.
~"i1 99000-32020: THREAD LOCK SUPER "13338"
~ Upper mount nut: 80 N·m (8.0 kg-m, S8.0 Ib-ft)
6:Y.".
Upper mount bolt
~80N'm ~
8.0 kgf-m
(58.0Ib_tt)1
Washer
Nut
Upper mount
M10->M12
Steering bracket
~~---~"
~
~1 0.2 -.> 1'12.2
