DF40QH / DF50QH 31

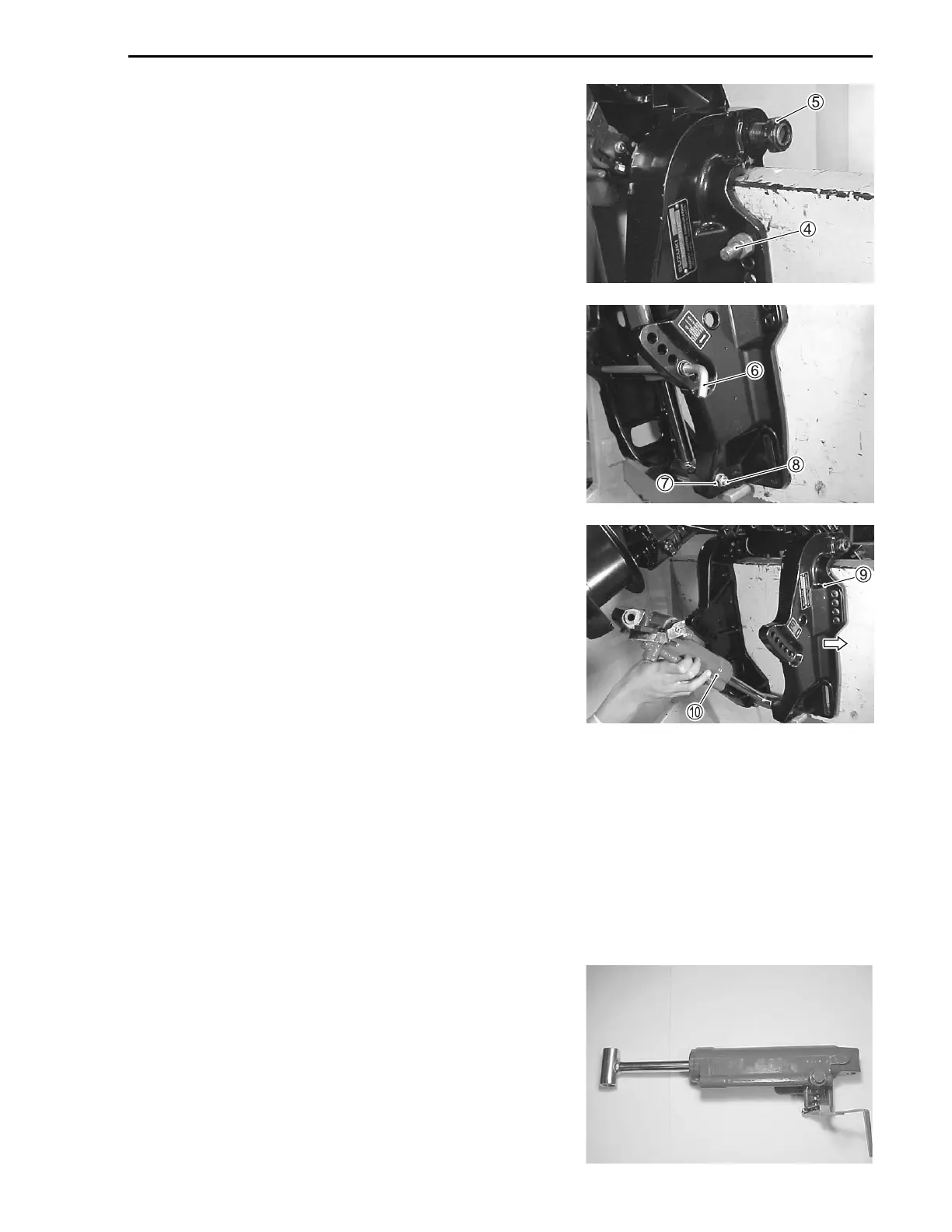

Remove the two STBD motor mounting bolts 4.
Loosen the clamp bracket shaft nut 5.
NOTE:
Complete removal of the clamp bracket shaft nut is not re-
quired.
Nut should only be loosened as far as the end of the shaft
threads to facilitate removal of the tilt aid gas cylinder.
Remove the tilt pin 6.
Loosen the tilt aid gas cylinder lower shaft nut 7 and remove
the lower shaft bolt 8.
Slide the STBD clamp bracket 9 fully outward to the right
hand side.
Remove the tilt aid gas cylinder 0 from between the clamp
brackets.
INSPECTION
NOTE:
If any component is found to be excessively worn, cracked,
defective or damaged in any way, it must be replaced.
Tilt aid gas cylinder
Check tilt aid gas cylinder.
If cracks, defects or other damage is found, replace the cylin-
der assembly complete.
