DF40QH / DF50QH 21

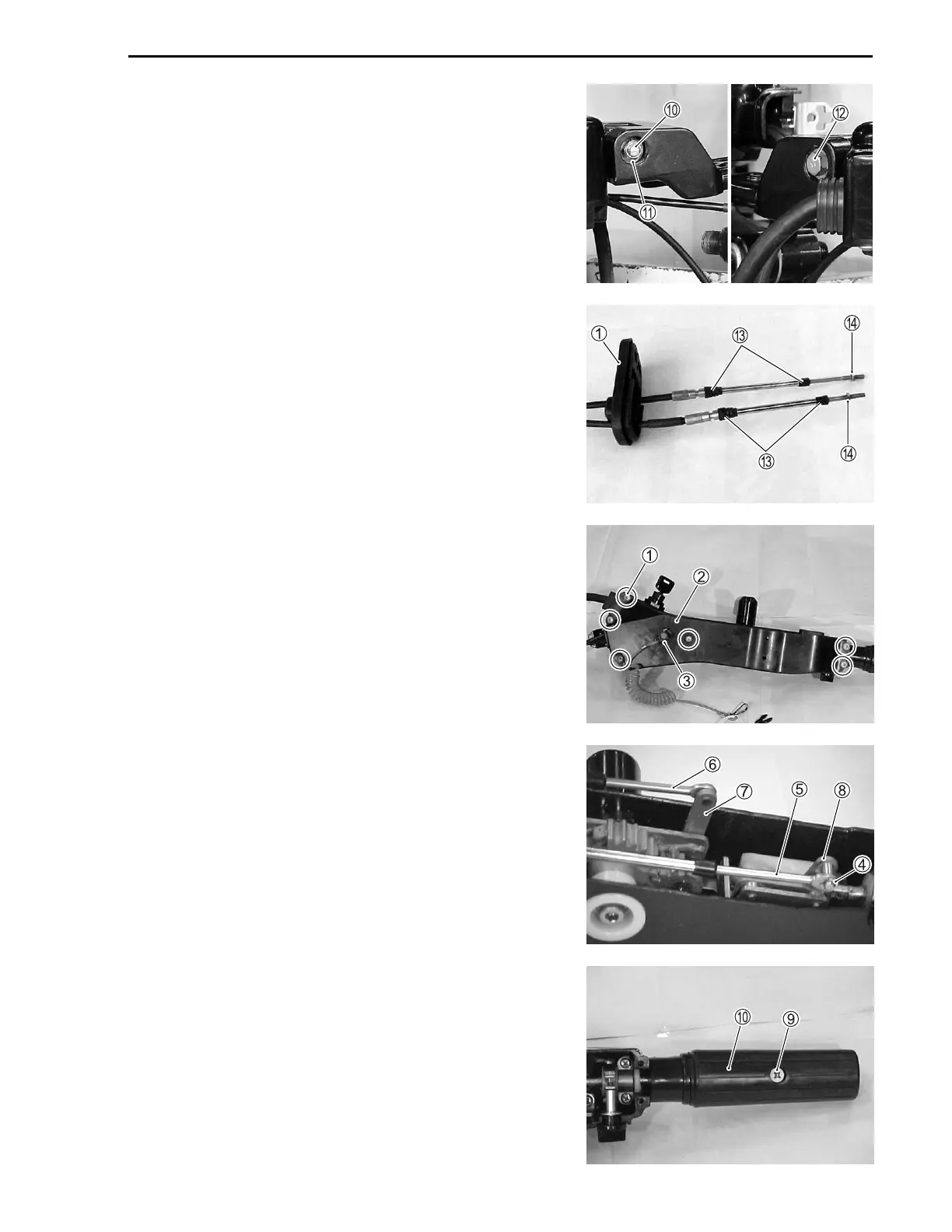

6. Remove nut 0 and washer A.
Loosen and remove the handle pivot bolt B.
Remove tiller handle assembly.
Account for three washers and spring.
7. Remove the seals C and connector lock nuts D from
throttle / shift cables.
Slide rigging port grommet 1 off.
DISASSEMBLY
Remove six (6) screws 1 and take off tiller handle lower cover
2.
Disconnect emergency stop switch lead connector 3.
Remove E-ring 4 and throttle cable 5 from throttle link 8.
Remove shift cable 6 from clutch link 7 in the same manner.
Remove screw 9, handle grip 0.
