POWER UNIT 6-2

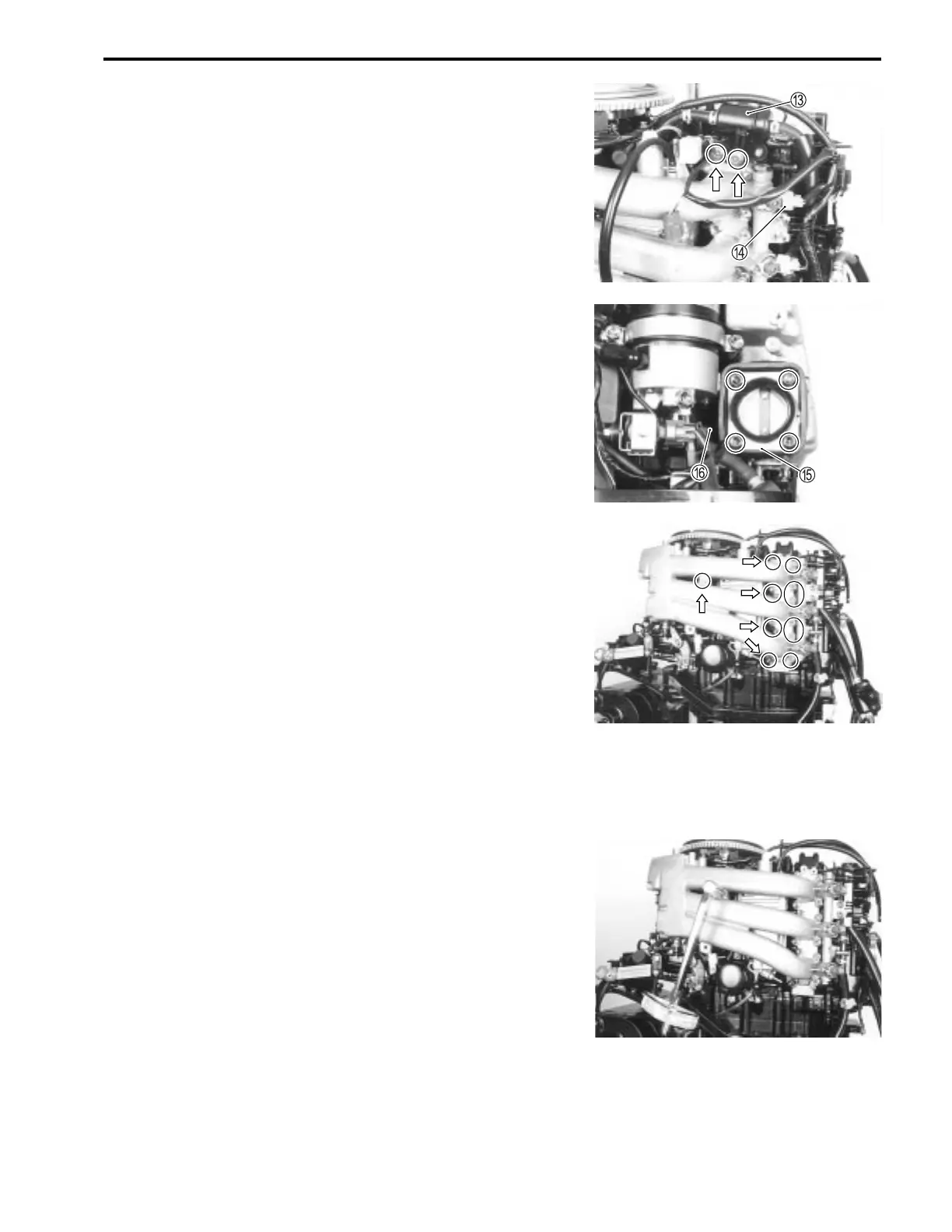

10. Remove two bolts and high pressure fuel filter C.
11. Disconnect lead wire connectors
D from all fuel injectors.
12. Remove four (4) bolts and Throttle body
E.
Remove IAC valve hose
F from Throttle body.
13. Remove bolts and nuts, and then remove intake manifold
assembly
G.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
NOTE:
Do not re-use gasket. Always use a new gasket.
• Install gasket and intake manifold.
• Tighten bolts and nuts securely.
• Check to ensure that all removed parts are back in place.
Checking
• Check fuel and water hose routing.
(See page 10-7 to 10-9)
• Check wire routing (See page 10-1 to 10-6)
• Check for fuel leakage. (See page 5-3)
• Check for water leakage.
To Next Page
