8-5 POWER TRIM AND TILT

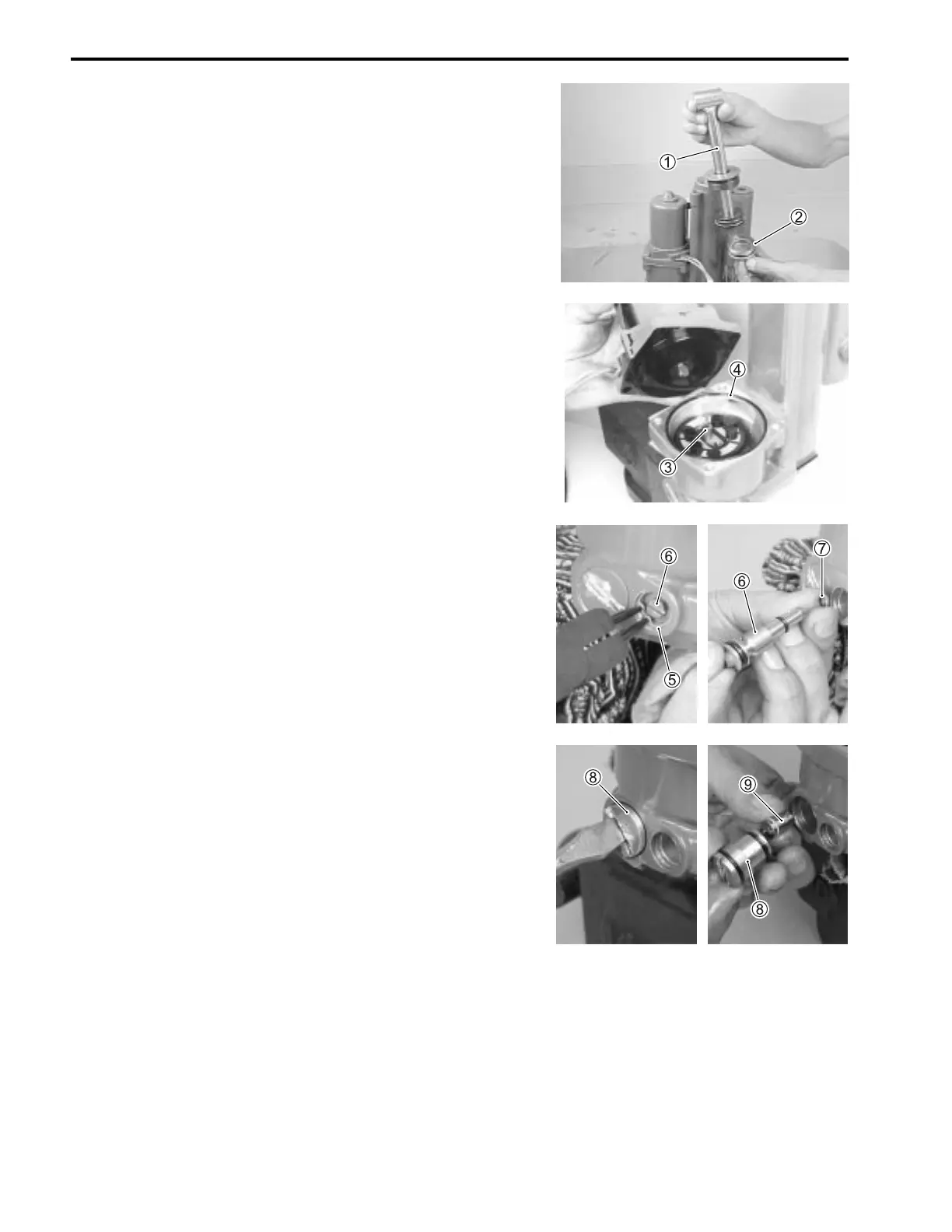

Pull the tilt rod / piston assembly 1 out of the cylinder body.
Remove the free piston from the cylinder body 2.
Remove the PTT motor.
Note the position of drive joint 3 and O-ring 4, before remov-
ing them.
(see page 8-10)
Unscrew the fill plug and drain PTT oil into suitable container.
Remove the manual release valve snap ring 5, then unscrew
the manual release valve 6.
Remove the seal washer 7.
Remove the main check valve 8 and spool valve 9.

Suzuki DF 40 Specifications

General

Displacement	941 cc
Starting System	Electric
No. of Cylinders	3
Steering	Remote
Gear Ratio	2.27:1
Alternator Output	12V 19A
Engine Type	4-Stroke, DOHC
Maximum Output	40 hp
Fuel System	Multi-Point Sequential Electronic Fuel Injection
Shaft Length	S: 381 mm, L: 508 mm
Oil Capacity	2.7 L
