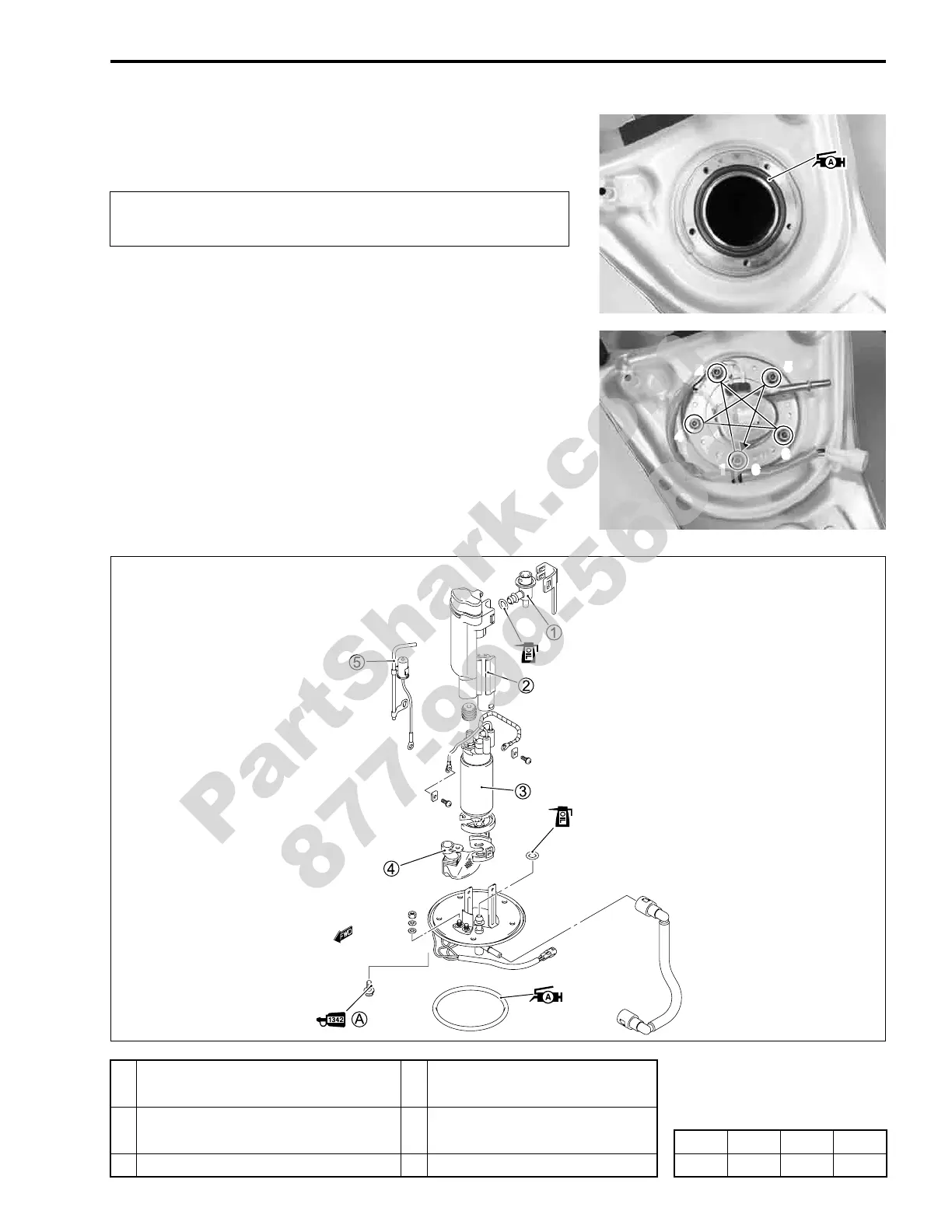

FUEL SYSTEM AND THROTTLE BODY 5-13
• Install the new O-ring and apply SUZUKI SUPER GREASE to
it.
#
& 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• When installing the fuel pump assembly, first tighten all the
fuel pump assembly mounting bolts lightly in the ascending
order of numbers, and then tighten them to the specified
torque in the above tightening order
.
' Fuel pump mounting bolt: 10 N·m (1.0 kgf-m, 7.3 lb-ft)
NOTE:
Apply a small quantity of the THREAD LOCK to the thread por-
tion of the fuel pump mounting bolt.
( 99000-32050: THREAD LOCK “1342”
The O-ring must be replaced with a new one to prevent
fuel leakage.
16
3
5
2
4
1
Fuel pressure regulator
4
Fuel mesh filter (For low pres-
sure)
2
Fuel pump case/Fuel filter cartridge
(For high pressure)
5
Fuel level gauge '
ITEM N·m
kgf-m
lb-ft
3 Fuel pump
A Fuel pump mounting bolt
A 10 1.0 7.3
