FUEL SYSTEM AND THROTTLE BODY 5-15
AIR CLEANER AND THROTTLE BODY
REMOVAL

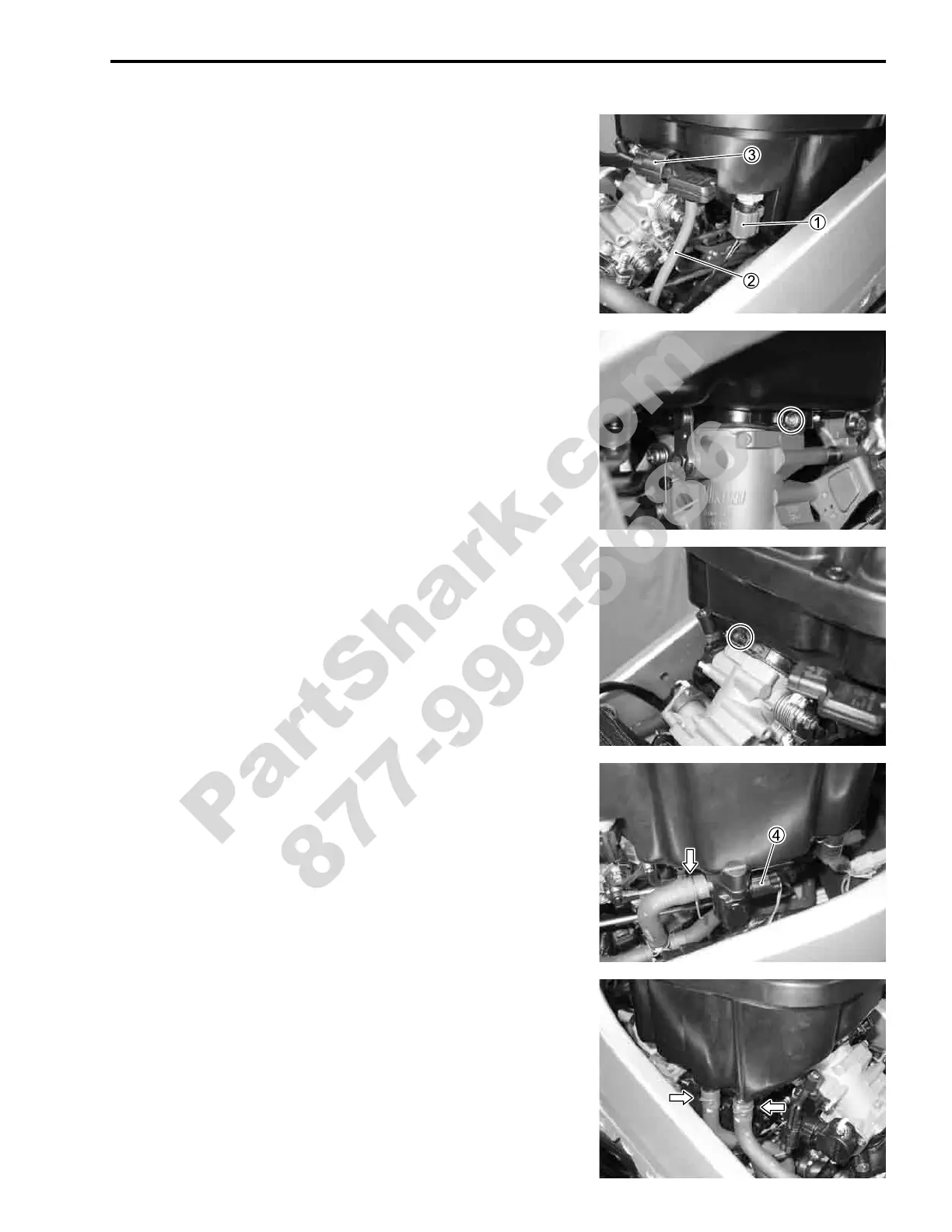

AIR CLEANER BOX
• Remove the fuel tank. (!5-7)
• Disconnect the IAT sensor coupler

1.
• Remove the IAP sensor vacuum hose

2.
• Disconnect the IAP sensor coupler

3.
• Loosen the throttle body clamp screws.
• Disconnect the PAIR hose.
• Disconnect the PAIR lead wire coupler

4.
• Disconnect the crankcase breather hoses.
• Remove the air cleaner box.
