6-6 COOLING AND LUBRICATION SYSTEM
INSPECTION AND CLEANING

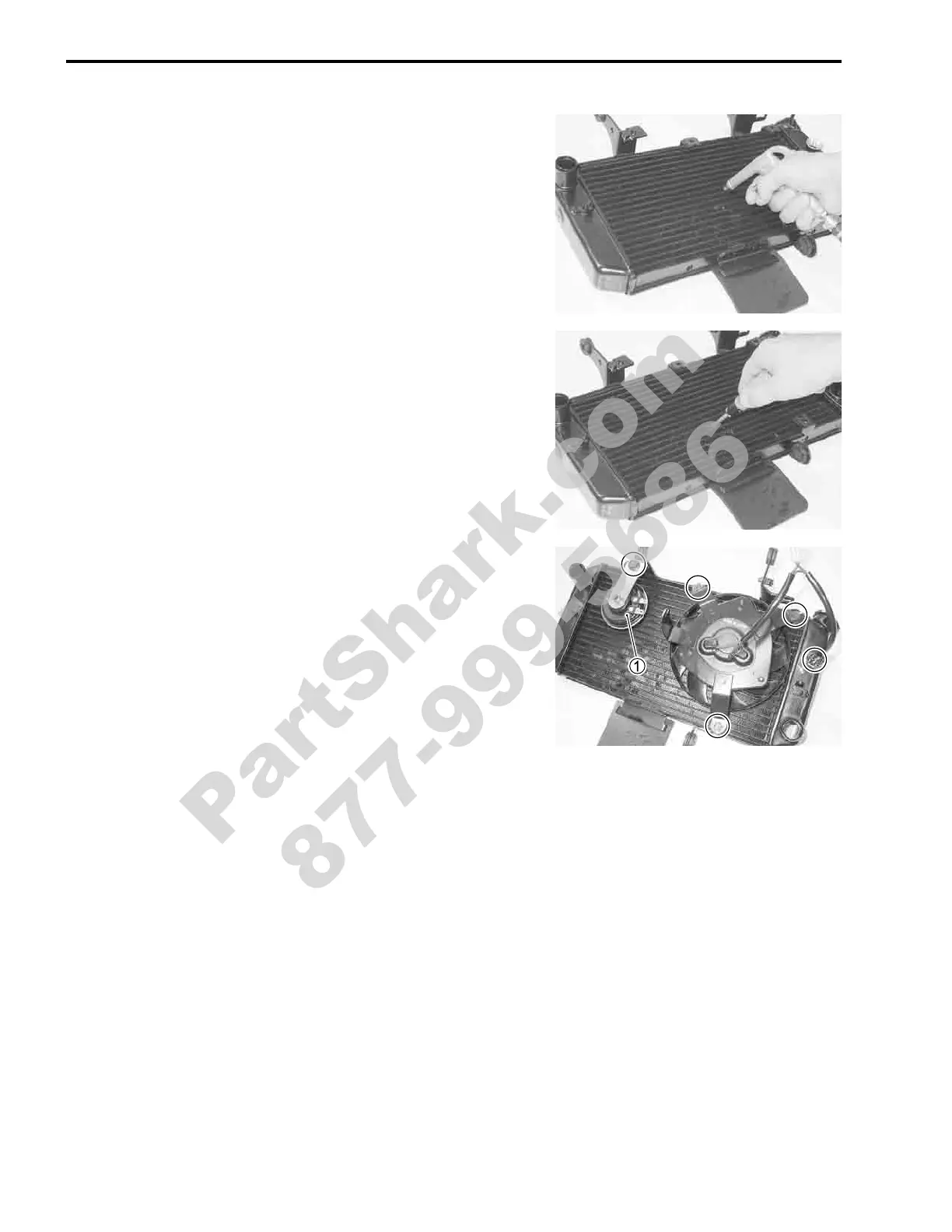

Road dirt or trash stuck to the fins must be removed.
Use of compressed air is recommended for this cleaning.
Fins bent down or dented can be repaired by straightening them
with the blade of a small screwdriver.
INSTALLATION
• Install the radiator in the reverse order of removal.
Pay attention to the following points :
• Install the cooling fan and horn

1.
$ Cooling fan/horn mounting bolt:
8 N·m (0.8 kgf-m, 6.0 lb-ft)
• Install the cooling fan thermo-switch. (#6-8)
• Route the radiator hoses properly. (#9-24)
• Install the drain plug with a new sealing washer and pour
engine coolant. (#2-18)
• Bleed air from the cooling circuit. (#2-19)
• Install the cowling. (#7-8)
