7-36 CHASSIS

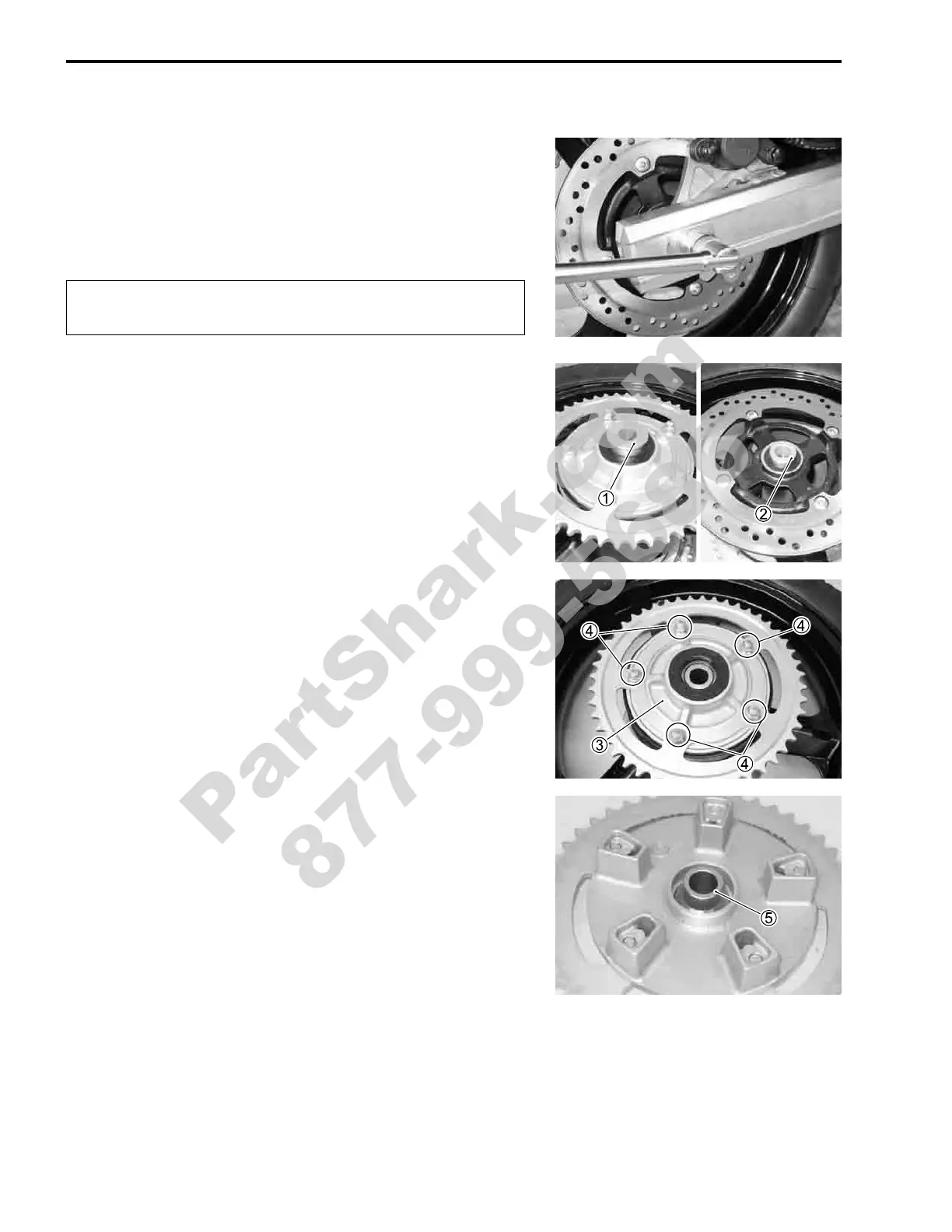

REMOVAL
• Remove the cotter pin. (For E-03, 28, 33)
• Loosen the rear axle nut.
• Raise the rear wheel off the ground and support the motorcy-
cle with a jack or wooden block.
• Remove the axle nut and draw out the rear axle.
#
• Remove the collars

1,

2.
• Remove the rear sprocket mounting drum assembly

3 from
the wheel hub.
NOTE:
Before removing the rear sprocket mounting drum, slightly
loosen the rear sprocket nuts

4
to facilitate later disassembly.
• Remove the rear sprocket mounting drum retainer

5.
Do not operate the brake pedal while removing the
rear wheel.
