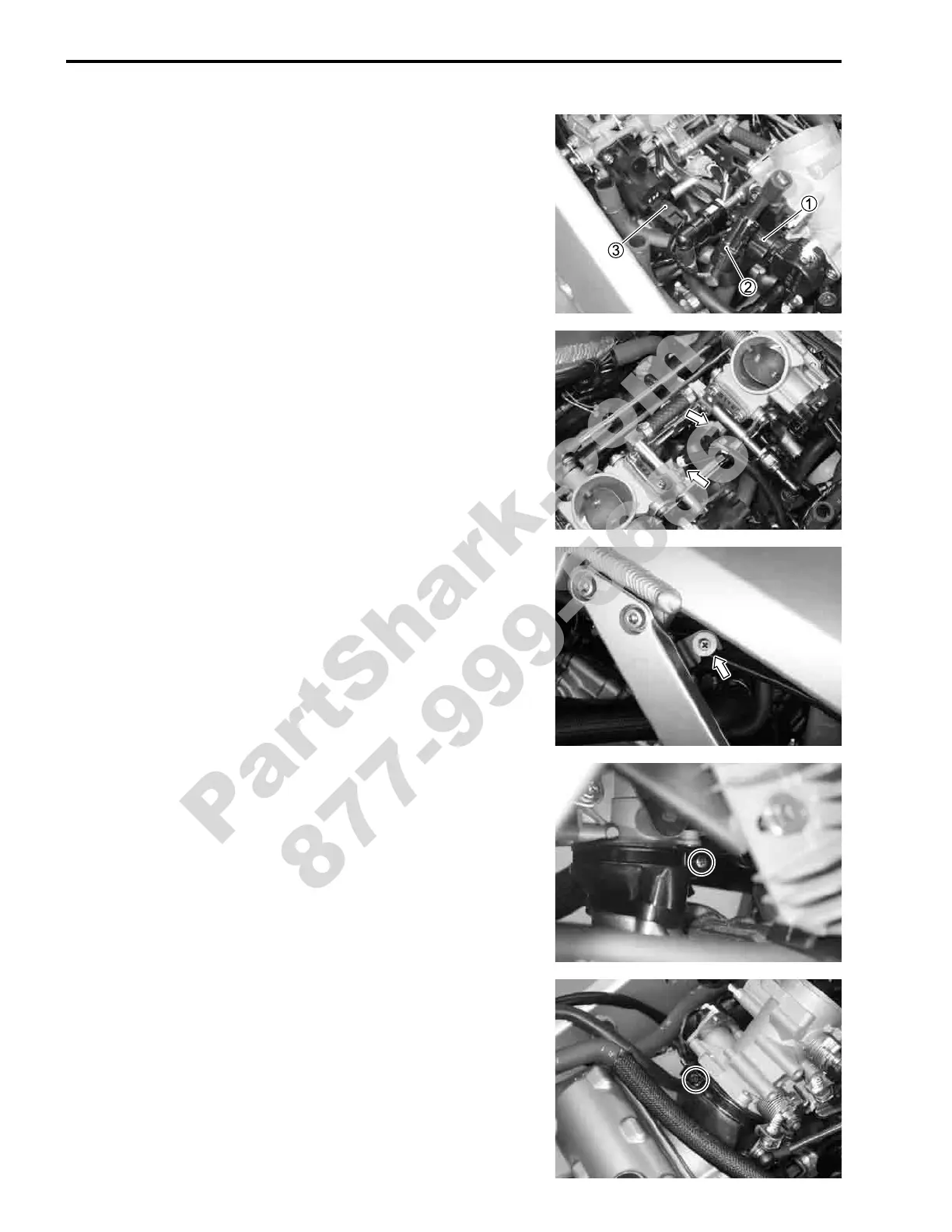

5-16 FUEL SYSTEM AND THROTTLE BODY
THROTTLE BODY
• Remove the fuel tank. (!5-7)
• Remove the air cleaner box. (!5-15)
• Disconnect the various lead wire couplers.

1 TP sensor

2 STP sensor

3 STVA motor
• Remove the injector lead wire coupler.
• Disconnect the idle stop screw.
• Loosen the throttle body clamp screws.
