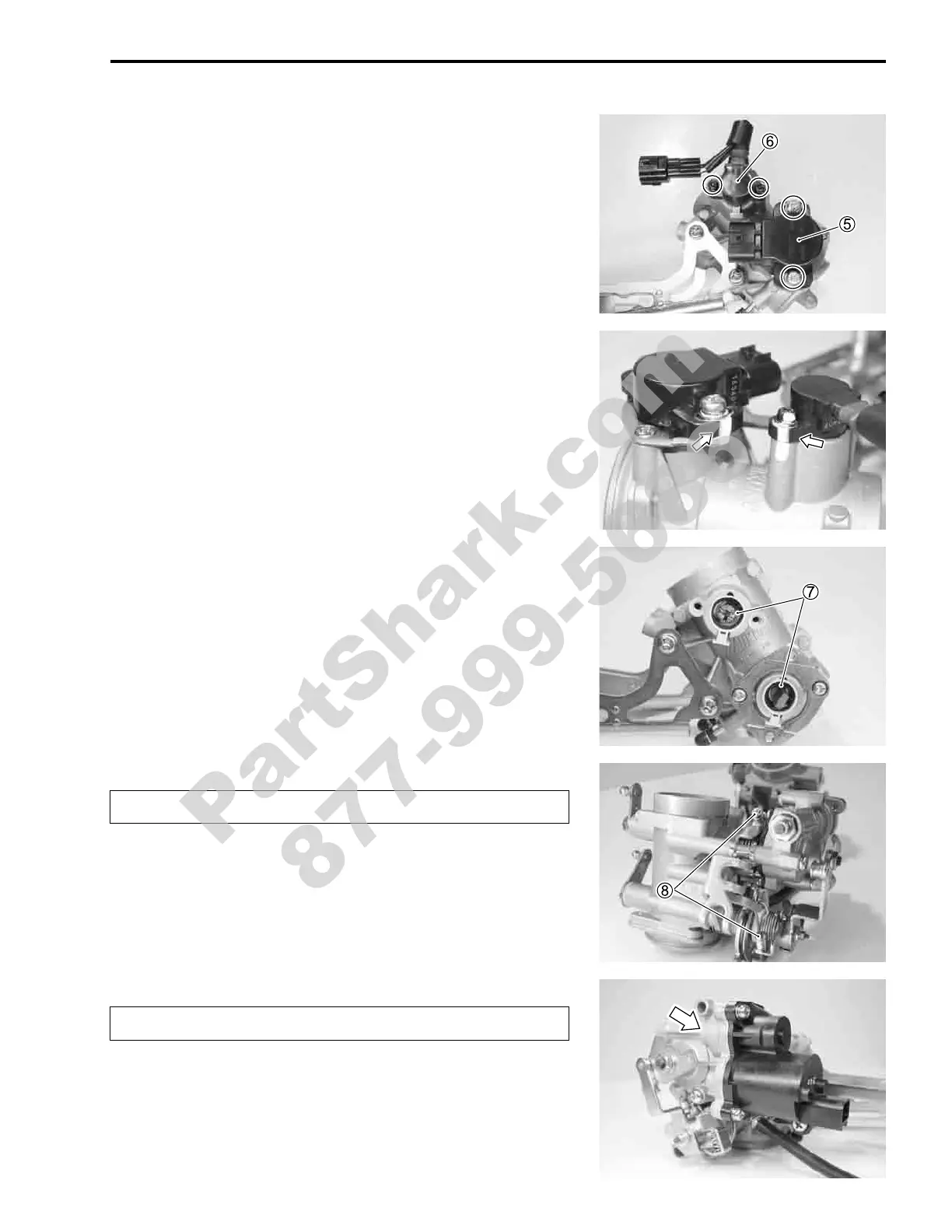

FUEL SYSTEM AND THROTTLE BODY 5-19
• Remove the TPS

5 and STPS

6 with the special tool.
$ 09930-11950: Torx wrench (TH 25)
09930-11960: Torx wrench (TH 20)
NOTE:
Prior to disassembly, mark each sensor’s original position with a
paint or scribe for accurate reinstallation.
• Remove the oil seals

7.
"
"
Do not turn the screws

8.
Never remove the STVA.
