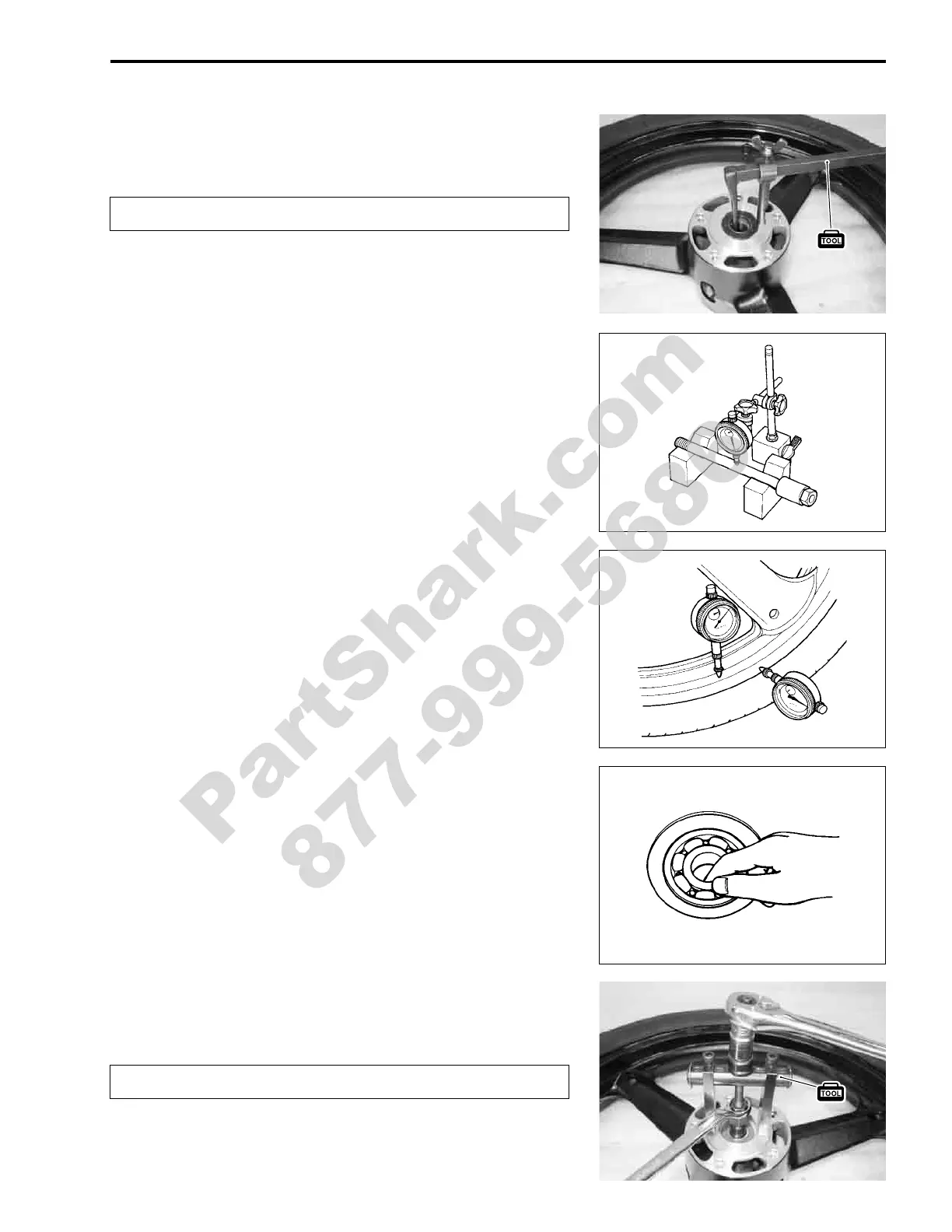

CHASSIS 7-11
• Remove the dust seal with the special tool.
$ 09913-50121: Oil seal remover
!
#
FRONT AXLE
Using a dial gauge, check the front axle for runout and replace it
if the runout exceeds the limit.
$ 09900-20607: Dial gauge (1/100)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
% Axle shaft runout
Service Limit: 0.25 mm (0.010 in)
WHEEL
Make sure that the wheel runout checked as shown does not
exceed the service limit. An excessive runout is usually due to
worn or loosened wheel bearings and can be reduced by replac-
ing the bearings. If bearing replacement fails to reduce the
runout, replace the wheel. (Wheel inspection: "7-79)
% Wheel runout
Service Limit (Axial and Radial): 2.0 mm (0.08 in)
WHEEL BEARING
Inspect the play of the wheel bearings by finger while they are in
the wheel. Rotate the inner race by finger to inspect for abnor-
mal noise and smooth rotation.
Replace the bearing in the following procedure if there is any-
thing unusual.
• Remove the wheel bearings with the special tool.
$ 09921-20240: Bearing remover set (& 17)
#
Do not reuse the removed dust seals.
Do not reuse the removed bearings.
