7-22 CHASSIS

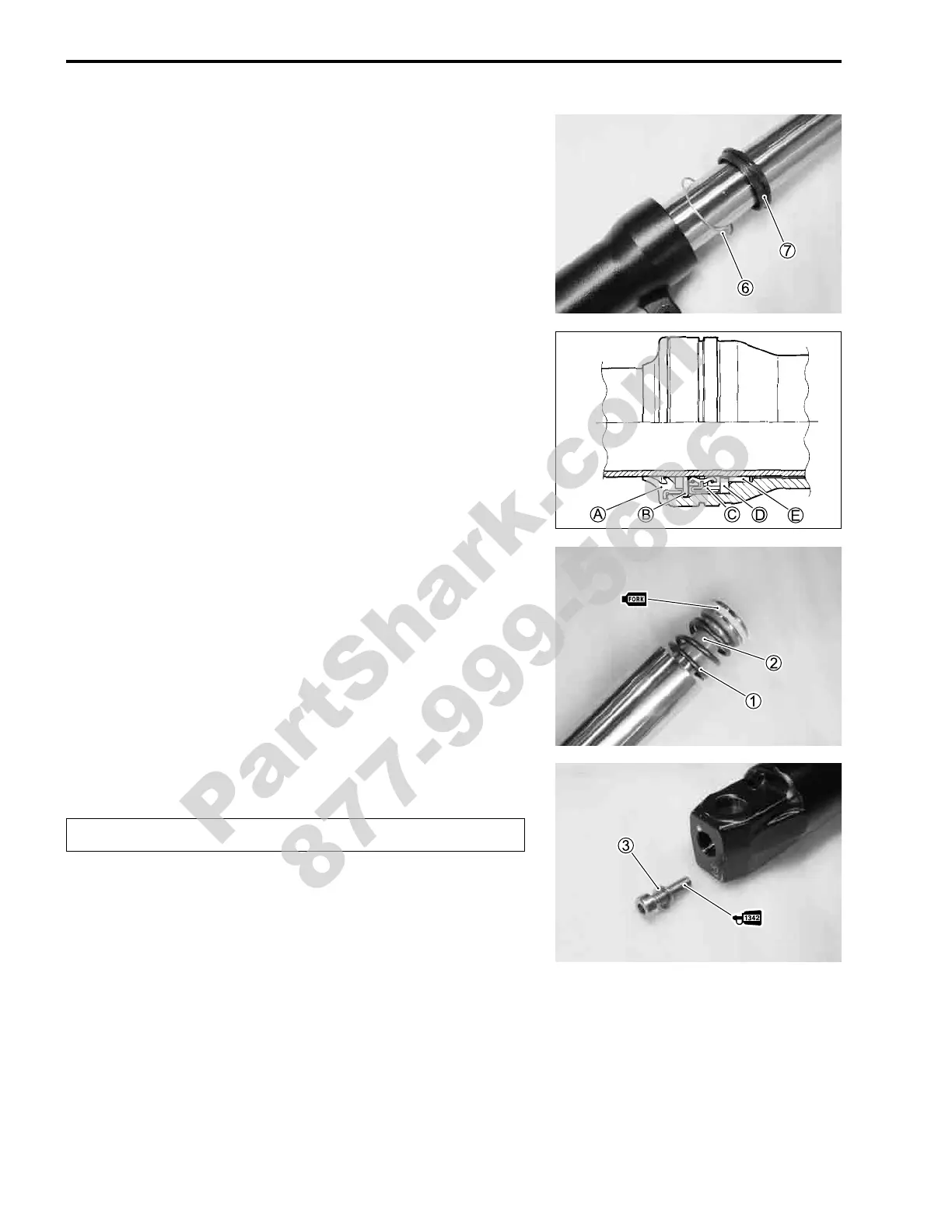

• Install the oil seal stopper ring

6 and the dust seal

7.

A Dust seal

B Oil seal stopper ring

C Oil seal

D Oil seal retainer

E Guide metal
CYLINDER
• Install the rebound spring

1 to the cylinder

2.
• Apply fork oil to the cylinder ring.
• Install the cylinder into the front fork.
• Apply THREAD LOCK to the cylinder bolt.
#
*99000-32050: THREAD LOCK “1342”
• Tighten the cylinder bolt to the specified torque with the spe-
cial tools.
$ 09940-34520: “T” Handle
09940-34531: Attachment A
! Cylinder bolt: 20 N·m (2.0 kgf-m, 14.5 lb-ft)
NOTE:
* If the cylinder turns together with the cylinder bolt, temporarily
install the fork spring, spacer, washer and cap bolt to prevent
the cylinder from turning.
* Check the front fork for smoothness by stroking it after install-
ing the cylinder.
Use a new gasket

3 to prevent oil leakage.
PartShark.com
877-999-5686

Suzuki DL650K5 Specifications

General

Displacement	645 cc
Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Ground Clearance	170 mm
Seat Height	835 mm
Engine Type	4-stroke, liquid-cooled, DOHC
Ignition	Digital/Transistorized
Front Tire Size	110/80R19
Rear Tire Size	150/70R17
Overall Width	840mm
Overall Height	1405mm
Fuel Capacity	20.0L
Torque	62 Nm
