7-70 CHASSIS

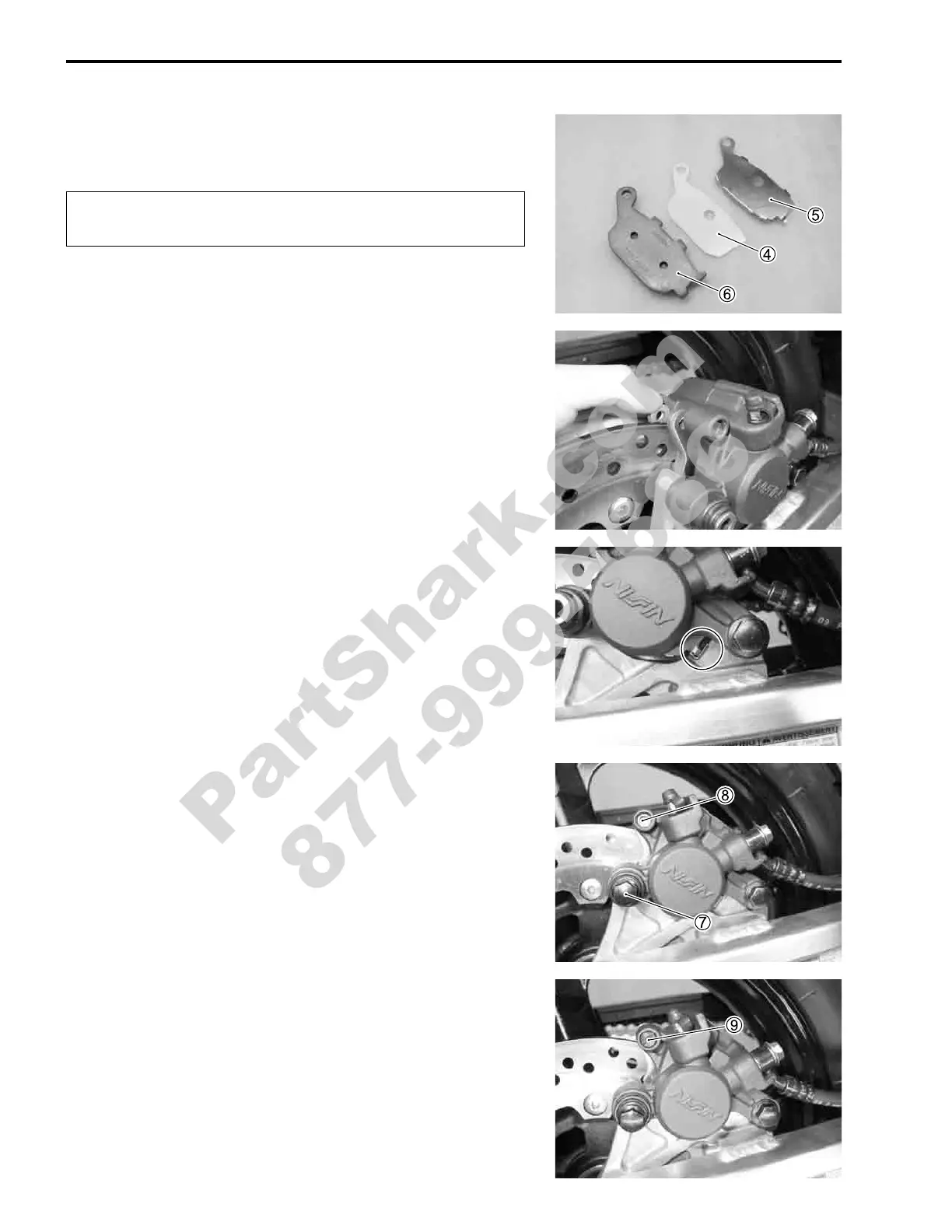

• Assemble the insulator



4 and shim



5 to the new brake pad



• Install the new brake pads.

NOTE:

Make sure that the detent of the pad is seated onto the retainer

on the caliper bracket.

• Tighten the caliper mounting bolt



7 and pad mounting pin



to the specified torque.

! Rear brake caliper mounting bolt:

22 N·m (2.2 kgf-m, 16.0 lb-ft)

Rear brake pad mounting pin:

17 N·m (1.7 kgf-m, 12.5 lb-ft)

• Install the plug



9 to the specified torque.

! Pad pin plug: 2.5 N·m (0.25 kgf-m, 1.8 lb-ft)

NOTE:

After replacing the brake pads, pump the brake pedal several

times in order to operate the brake correctly and then check the

brake fluid level.

Replace the brake pads as a set, otherwise braking

performance will be adversely affected.
