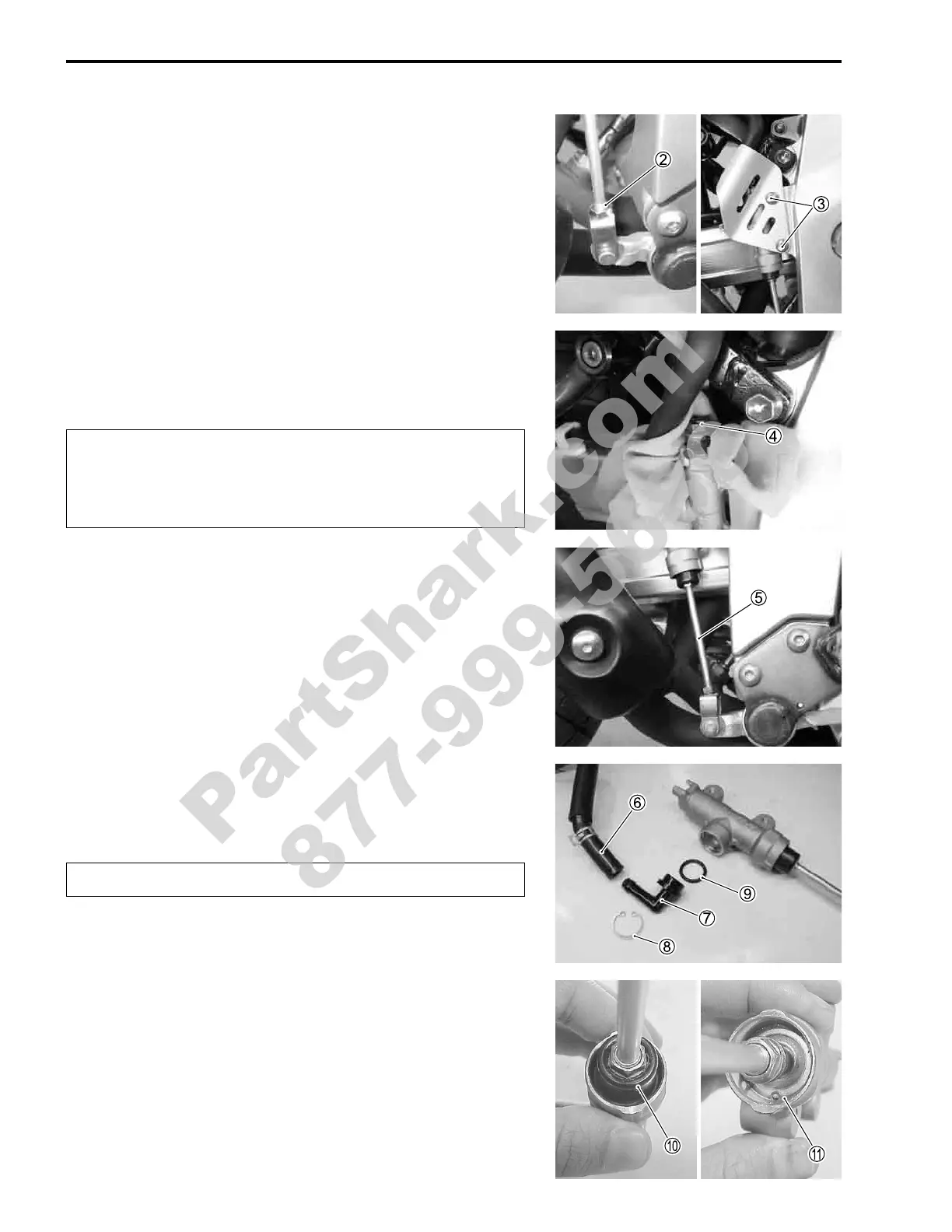

7-76 CHASSIS
• Loosen the lock-nut

2.
• Remove the master cylinder mounting bolts

3.
• Place a rag underneath the union bolt on the master cylinder
to catch spilled drops of brake fluid. Remove the union bolt

4
and disconnect the brake hose.
#
• Remove the master cylinder by turning the master cylinder
rod

5.
• Disconnect the reservoir hose

6.
• Remove the connector

7 by removing the snap ring

8.
• Remove the O-ring

9.
#
• Pull out the dust boot

0, then remove the snap ring

A.
• Remove the push rod, piston/primary cup and spring.
Immediately and completely wipe off any brake fluid
contacting any parts of the motorcycle. The fluid
reacts chemically with paint, plastic and rubber mate-
rials, etc. and will damage them severely.
Replace the O-ring with a new one.
