ELECTRICAL SYSTEM 8-33

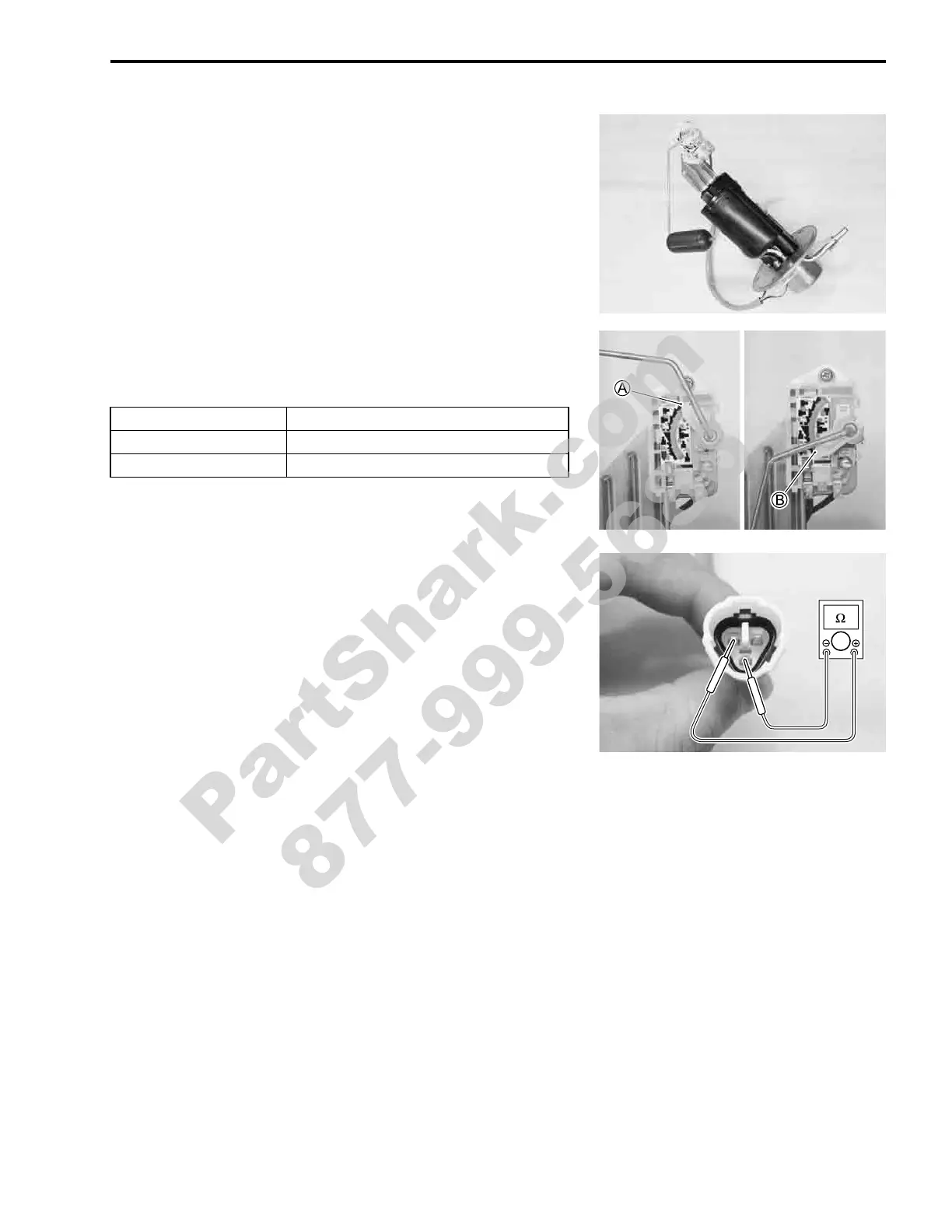

FUEL LEVEL GAUGE INSPECTION
• Remove the fuel tank. (!5-7)
• Remove the fuel pump. (!5-10)
Measure the resistance at each fuel level gauge float position. If
the resistance is incorrect, replace the fuel level gauge with a
new one.
# 09900-25008: Multi circuit tester set
(Tester knob indication: Resistance (Ω)
• Install the fuel pump. (!5-12)
Float position Resistance

A “F” (Full) Approx. 4 Ω

B “E” (Empty)
Approx. 182 Ω
