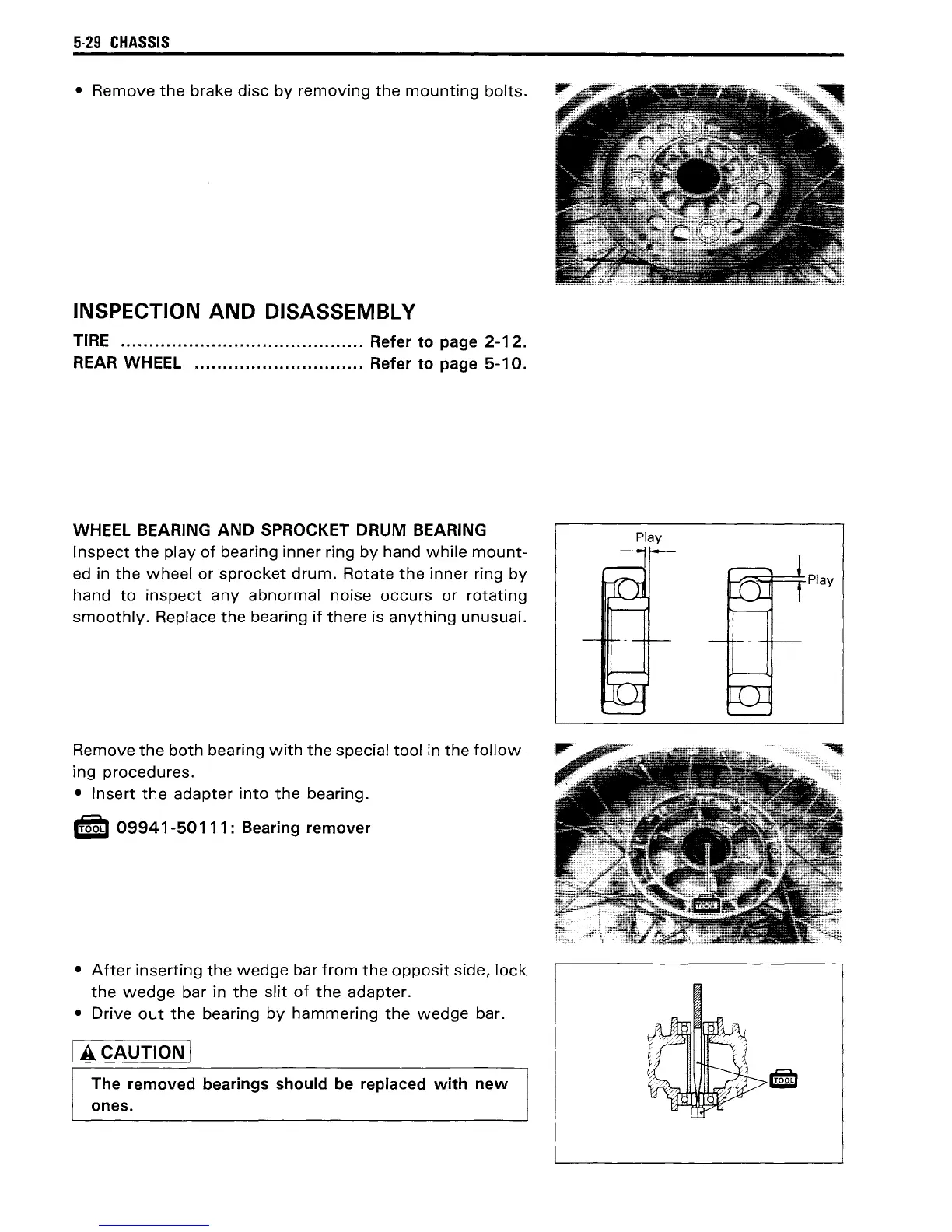

5-29 CHASSIS
• Remove the brake disc by removing the mounting bolts.
INSPECTION AND DISASSEMBLY
TIRE .... _. __ ... __ .... _ .. _ ...................... Refer to page 2-12.
REAR WHEEL .............................. Refer to page 5-10.
WHEEL BEARING AND SPROCKET DRUM BEARING
Inspect the play of bearing inner ring by hand while mount-
ed in the wheel or sprocket drum. Rotate the inner ring by
hand to inspect any abnormal noise occurs or rotating
smoothly. Replace the bearing if there is anything unusual.
Remove the both bearing with the special tool in the follow-
ing procedures.
• Insert the adapter into the bearing.
,gob 09941 -50111: Bearing remover
• After inserting the wedge bar from the opposit side, lock
the wedge bar in the slit of the adapter.
• Drive out the bearing by hammering the wedge bar.
I A CAUTION I
The removed bearings should be replaced with new
ones.
Play
~~F=~Play

Suzuki DR650SE Specifications

General

Bore x Stroke	100.0 mm x 82.0 mm
Compression Ratio	9.5:1
Fuel System	Mikuni BST40 carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	90/90-21
Rear Tire	120/90-17
Curb Weight	166 kg (366 lbs)
Starter	Electric
Engine Type	4-stroke, air-cooled, SOHC
Front Brakes	Disc brake
Rear Brakes	Disc brake
Fuel Tank Capacity	13.0 L (3.4 US gal.)
Overall Width	865 mm (34.1 in)
Ground Clearance	265 mm (10.4 in)
Seat Height	885 mm (34.8 in.)
Rear Suspension	Link type, coil spring, oil damped
