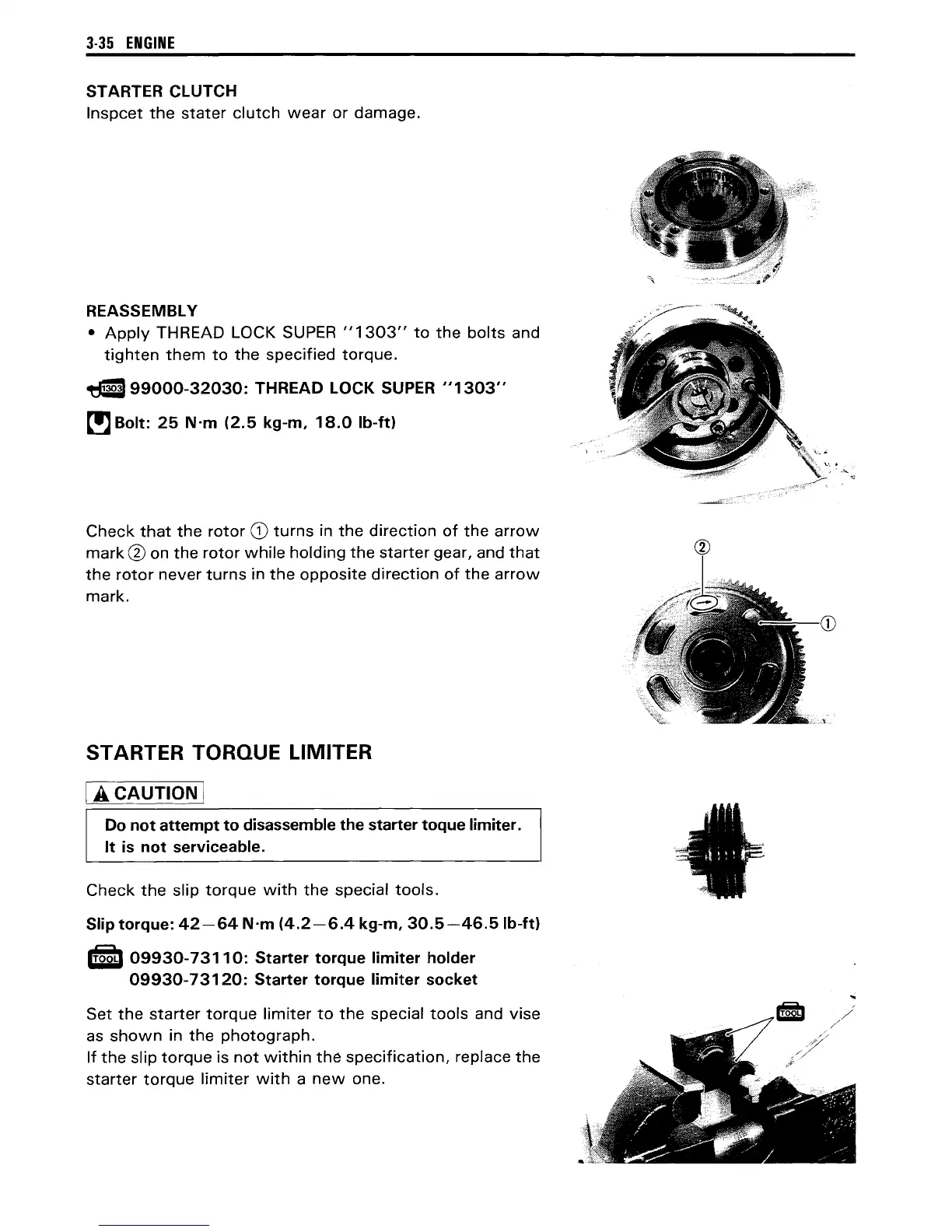

3·35 ENGINE
STARTER CLUTCH
Inspcet the stater clutch wear or damage.
REASSEMBLY
• Apply THREAD LOCK SUPER "1303" to the bolts and
tighten them to the specified torque .
.tJa 99000-32030: THREAD LOCK SUPER "1303"
~Bolt: 25 N'm (2.5 kg-m, 18.0 Ib-ft)
Check that the rotor CD turns in the direction of the arrow
mark @ on the rotor while holding the starter gear, and that
the rotor never turns in the opposite direction of the arrow
mark.
STARTER TORQUE LIMITER
[ A CAUTION [
Do not attempt to disassemble the starter toque limiter.
It is not serviceable.
Check the slip torque with the special tools.
Slip torque: 42-64 N'm (4.2-6.4 kg-m, 30.5-46.5Ib-ft)
.MOlt 09930-73110: Starter torque limiter holder
09930-73120: Starter torque limiter socket
Set the starter torque limiter to the special tools and vise
as
shown in the photograph.
If the slip torque is not within the specification, replace the
starter torque limiter with a new one.
